Pneumatic Separators
Pneumatic separators—also known as water separators—are essential pneumatic air preparation components that help eliminate moisture and mist from compressed air systems. They also serve a dual function by filtering out unwanted, and potentially harmful, contaminants such as dust and debris.
Why use pneumatic separators?
These devices play a critical role in maintaining the efficiency and reliability of pneumatic and compressed air systems. If moisture is not effectively removed, it can lead to condensation within pipes, tools, and instrumentation—causing wear, corrosion, and system malfunctions over time.
The presence of condensed water contributes to corrosion in both storage tanks and distribution lines. It can also lead to degradation of machinery and compromise the quality of end products. Additionally, moisture can strip away pre-applied lubricants on valves and actuators, shortening their service life. Overall, water buildup in pneumatic systems results in decreased productivity and increased maintenance requirements.
Key features and advantages of pneumatic separators
Some notable features and advantages of using pneumatic separators include:
- Compact and lightweight construction for easy installation and repositioning
- Automatic drainage system, offering hassle-free operation with minimal upkeep
- Engineered to resist clogging for consistent performance
600 L/min G 1/2 Mist Separator, 0.01μm filtration, 0.1MPa to 1 MPa, 1.5 MPa, SMC, AFD40-F04D-A
AFD40-F04D-A
Modular Micro Mist Separator AFD20 - AFD40
Micro mist separators from SMC are lightweight and easy to install, minimising the time spent on installation. The bowl guards in the AFD series are clear enabling users to view from any angle.
Simple and interchangeable mounting
Lightweight design
Note
Transparent bowl is for body size 30 and over
Filters, Lubricators and Separators
High flow capacity filters, lubricators and separators with polycarbonate bowls. All have an ambient and media temperature range of 5 - 60°C and a proof pressure of 15 bar.
$253.18
600 L/min G 3/8 Mist Separator, 0.01μm filtration, 0.05MPa to 1 MPa, 1.5 MPa, SMC, AFD40-F03-A
AFD40-F03-A
Modular Micro Mist Separator AFD20 - AFD40
Micro mist separators from SMC are lightweight and easy to install, minimising the time spent on installation. The bowl guards in the AFD series are clear enabling users to view from any angle.
Simple and interchangeable mounting
Lightweight design
Note
Transparent bowl is for body size 30 and over
Filters, Lubricators and Separators
High flow capacity filters, lubricators and separators with polycarbonate bowls. All have an ambient and media temperature range of 5 - 60°C and a proof pressure of 15 bar.
$189.76
6000 l/min G 1 1/2 Pneumatic Separator, 5μm filtration, 0.1MPa to 10 bar, SMC, AMG650-F14D
AMG650-F14D
The SMC AMG series water separator is installed on the air pressure line to remove water drops from compressed air. It is available in 7 sizes with a variety of optional combinations to meet your application requirements.
Water removal rate 99%
Max operating pressure 1.0MPa
Fluororubber material
Medium air pressure
Drain guide
IN-OUT reversal direction
Degreasing wash
White Vaseline
$1,219.00
6000 l/min Rc 1-1/2 Pneumatic Separator, 0.3μm filtration, 0.5bar to 10 bar, SMC, AM650-14D
AM650-14D
The SMC micro mist separators range from 1/8 to 2 and feature a rugged aluminium housing. These coalescing filters are nominally rated at 0.01 micron for a second stage of oil removal after a particulate filter and a coarser coalescing unit.
Particulate filtration
Oil mist separation
Optional element life indicator
Nominal filtration rating 0.3 μm
$1,066.35
750 l/min 1/4 in Pneumatic Separator, 0.3μm filtration, 0.05MPa to 10 bar, SMC, AM250C-02
AM250C-02
The SMC Mist Separator can separate and remove oil mist in compressed air, which is difficult to remove by ordinary air filters and removes solid particles such as rust or carbon of more than 0.3 micron. It is the most suitable for air sources that drive pilot, metal seal solenoid valves.
Dust filtration
Oil mist separation
99.9 percent filtration efficiency
$159.39
750 l/min G 1/4 Pneumatic Separator, 0.3μm filtration, 0.5bar to 10 bar, SMC, AM250C-02B
AM250C-02B
The SMC legacy series AM mist separator can separate and remove aerosol state oil mist in compressed air and remove particles such as carbon or dust of more than 0.01 μm. Use this product as a pre-filter for compressed air for precision instruments or cle
Rated flow(ANR) 750
Port size 1/4, 3/8
Mass 0.55 kg
$193.86
750 L/min G 1/4 Water Separator, 0.05MPa to 10 bar, SMC, AMG250C-F02
AMG250C-F02
The SMC AMG Water Separator is installed on the air pressure line to remove water drops from compressed air. It is available in 7 sizes with a variety of optional combinations to meet your application requirements. It is exclusively used for removing water droplets and the ample housing interior space, a 99 percent water removal rate has been achieved.
Easy to install and adjust
Lightweight design
$242.65

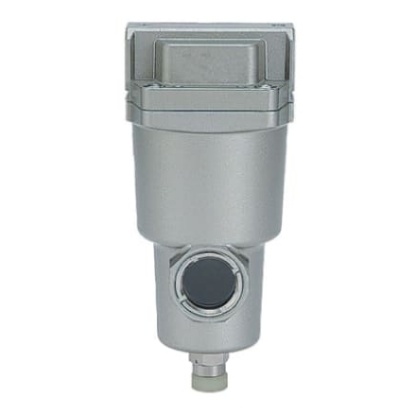

750 L/min G 3/8 Pneumatic Separator, 0.1MPa to 1.5 MPa, SMC, AMG250C-F03D
AMG250C-F03D
SMC in. –1 in. AMG Series
Minimum operating pressure 1.5 bar
Will remove 99.9% of water droplets from an airline system
Automatic drain
Element is resistant to clogging
Modular unit
$314.83
750 l/min G 3/8 Pneumatic Separator, 0.3μm filtration, 0.5bar to 10 bar, SMC, AM250C-F03
AM250C-F03
The SMC legacy series AM mist separator can separate and remove aerosol state oil mist in compressed air and remove particles such as carbon or dust of more than 0.01 μm. Use this product as a pre-filter for compressed air for precision instruments or cle
Nominal filtration rating 0.3 μm
Rated flow from 300 to 12000 l/min (ANR)
Filter element service indicator option
$181.76
750 l/min G 3/8 Pneumatic Separator, 0.3μm filtration, 0.5bar to 10 bar, SMC, AM250C-F03D
AM250C-F03D
The SMC legacy series AM mist separator can separate and remove aerosol state oil mist in compressed air and remove particles such as carbon or dust of more than 0.01 μm. Use this product as a pre-filter for compressed air for precision instruments or cle
Rated flow(ANR) 750
Port size 1/4, 3/8
Mass 0.55 kg
$264.06
750 l/min G 3/8 Pneumatic Separator, 0.3μm filtration, 0.5bar to 10 bar, SMC, AM250C-F03D-H
AM250C-F03D-H
The SMC legacy series AM mist separator can separate and remove aerosol state oil mist in compressed air and remove particles such as carbon or dust of more than 0.01 μm. Use this product as a pre-filter for compressed air for precision instruments or cle
Nominal filtration rating 0.3 μm
Rated flow from 300 to 12000 l/min (ANR)
Filter element service indicator option
$350.16

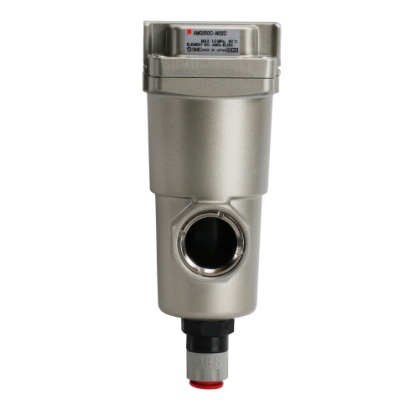

750 l/min G 3/8 Pneumatic Separator, 0.5bar to 10 bar, SMC, AMG250C-03D
AMG250C-03D
The SMC AMG series water separator is installed on the air pressure line to remove water drops from compressed air. Through the adoption of an element that is exclusively used for removing water droplets and the ample housing interior space, a 99%› water
Water removal rate 99%
Max operating pressure 1.0MPa
Fluororubber material
Medium air pressure
Drain guide
IN-OUT reversal direction
Degreasing wash
White Vaseline
$352.50
