Pneumatic Separators

Pneumatic separators—also known as water separators—are essential pneumatic air preparation components that help eliminate moisture and mist from compressed air systems. They also serve a dual function by filtering out unwanted, and potentially harmful, contaminants such as dust and debris.

Why use pneumatic separators?

These devices play a critical role in maintaining the efficiency and reliability of pneumatic and compressed air systems. If moisture is not effectively removed, it can lead to condensation within pipes, tools, and instrumentation—causing wear, corrosion, and system malfunctions over time.

The presence of condensed water contributes to corrosion in both storage tanks and distribution lines. It can also lead to degradation of machinery and compromise the quality of end products. Additionally, moisture can strip away pre-applied lubricants on valves and actuators, shortening their service life. Overall, water buildup in pneumatic systems results in decreased productivity and increased maintenance requirements.

Key features and advantages of pneumatic separators

Some notable features and advantages of using pneumatic separators include:

  • Compact and lightweight construction for easy installation and repositioning
  • Automatic drainage system, offering hassle-free operation with minimal upkeep
  • Engineered to resist clogging for consistent performance
View as Grid List
Sort by
Display per page
Picture of 25 l/sec. G 1/2 Pneumatic Separator, 0.3μm filtration, SMC, AM350C-F04D

25 l/sec. G 1/2 Pneumatic Separator, 0.3μm filtration, SMC, AM350C-F04D

AM350C-F04D
The SMC AM mist separator has G1/2 port size and it has rugged aluminium housing. These coalescing filter are nominally rated at 0.3 micron for an initial stage of oil removal after a particulate filter. Optional element life indicator Particulate filtration, oil mist separation Height and mass reduced by up to 40% Ambient and fluid temperature 5 to 60°C
$404.43
Picture of 3.33 l/sec. G 1/4 Pneumatic Separator, 0.3μm filtration, SMC, AFM20-F02B-A

3.33 l/sec. G 1/4 Pneumatic Separator, 0.3μm filtration, SMC, AFM20-F02B-A

AFM20-F02B-A
The SMC AFM series standard filtration is 0.3μm with a 99.9% filtered particle size and have a transparent bowl guard that offers 360° visibility, while completely protecting the bowl from the environment. The modular design allows connection with air preparation equipment. Light weight maximum 90 g reduction Maximum operating pressure 1.0 Mpa Ambient and fluid temperature -5 to 60 °C (with no freezing)
$136.55
Picture of 3.33 l/sec. G 1/4 Pneumatic Separator, 0.3μm filtration, SMC, AFM20-F02C-R-A

3.33 l/sec. G 1/4 Pneumatic Separator, 0.3μm filtration, SMC, AFM20-F02C-R-A

AFM20-F02C-R-A
The SMC AFM series standard filtration is 0.3μm with a 99.9% filtered particle size and have a transparent bowl guard that offers 360° visibility, while completely protecting the bowl from the environment. The modular design allows connection with air preparation equipment. Light weight maximum 90 g reduction Maximum operating pressure 1.0 Mpa Ambient and fluid temperature -5 to 60 °C (with no freezing)
$124.14
Picture of 3.33 l/sec. G 1/8 Mist Separator, 0.01μm filtration, SMC, AME150C-F01

3.33 l/sec. G 1/8 Mist Separator, 0.01μm filtration, SMC, AME150C-F01

AME150C-F01
The SMC AME series separates and absorbs aerosol state fine oil particles in compressed air and changes the oil lubricating compressed air to oil-free equivalent air. It should be applied for filtration of compressed air requiring high cleanliness for coating lines, compressed air for clean rooms and compressed air for equipment necessary to avoid oils Indicates the filter element life by a colour change Nominal filtration rating 0.01 μm Maximum 0.01 mg/m3 oil mist density at outlet
$149.60
Picture of 3.33 l/sec. G 3/4 Pneumatic Separator, 0.3μm filtration, SMC, AFM40-F06D-A

3.33 l/sec. G 3/4 Pneumatic Separator, 0.3μm filtration, SMC, AFM40-F06D-A

AFM40-F06D-A
The SMC AFM series standard filtration is 0.3μm with a 99.9% filtered particle size and have a transparent bowl guard that offers 360° visibility, while completely protecting the bowl from the environment. The modular design allows connection with air preparation equipment. Light weight maximum 90 g reduction Maximum operating pressure 1.0 Mpa Ambient and fluid temperature -5 to 60 °C (with no freezing)
$283.62
Picture of 300 L/min G 1/4 Mist Separator, 0.1MPa to 1.5 MPa, SMC, AM150C-F02D-T

300 L/min G 1/4 Mist Separator, 0.1MPa to 1.5 MPa, SMC, AM150C-F02D-T

AM150C-F02D-T
AM 0.3 micron Mist Separator Used in collaboration with other air preparation elements such as water separators and coalescing filters to provide purified air free of contaminates. Mist separators remove dust particles to a size of 0.30 micrometres and oil mist. Able to provide clean air suitable for air tools, general pneumatic systems and when the removal of dust and oil particles is required. Filtration size 0.3μm (95% particle collection) Auto drain facility Minimum operating pressure 0.5 bar Proof pressure 15 bar Temperature range 5 to 60°C
$248.23
Picture of 300 L/min G 1/4 Pneumatic Separator, 0.1MPa to 1.5 MPa, SMC, AMG150C-F02D

300 L/min G 1/4 Pneumatic Separator, 0.1MPa to 1.5 MPa, SMC, AMG150C-F02D

AMG150C-F02D
SMC in. –1 in. AMG Series Minimum operating pressure 1.5 bar Will remove 99.9% of water droplets from an airline system Automatic drain Element is resistant to clogging Modular unit
$283.00
Picture of 300 l/min G 1/4 Pneumatic Separator, 0.5bar to 10 bar, SMC, AMG150C-02D

300 l/min G 1/4 Pneumatic Separator, 0.5bar to 10 bar, SMC, AMG150C-02D

AMG150C-02D
The SMC AMG series water separator is installed on the air pressure line to remove water drops from compressed air. Through the adoption of an element that is exclusively used for removing water droplets and the ample housing interior space, a 99%› water Water removal rate 99% Max operating pressure 1.0MPa Fluororubber material Medium air pressure Drain guide IN-OUT reversal direction Degreasing wash White Vaseline
$276.88
Picture of 300 l/min G 1/4 Pneumatic Separator, 0.5bar to 10 bar, SMC, AMG150C-F02BC

300 l/min G 1/4 Pneumatic Separator, 0.5bar to 10 bar, SMC, AMG150C-F02BC

AMG150C-F02BC
The SMC AMG series water separator is installed on the air pressure line to remove water drops from compressed air. Through the adoption of an element that is exclusively used for removing water droplets and the ample housing interior space, a 99%› water Water removal rate 99% Max operating pressure 1.0MPa Fluororubber material Medium air pressure Drain guide IN-OUT reversal direction Degreasing wash White Vaseline
$300.05

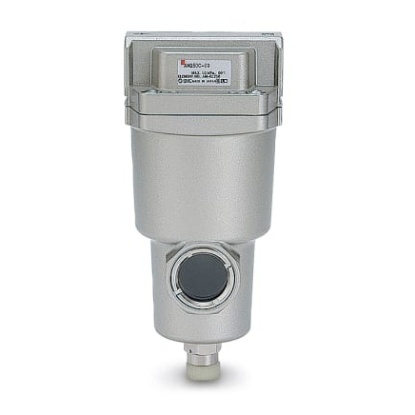

Picture of 300 l/min G 1/4 Pneumatic Separator, 5μm filtration, 0.1MPa to 10 bar, SMC, AMG150C-F02

300 l/min G 1/4 Pneumatic Separator, 5μm filtration, 0.1MPa to 10 bar, SMC, AMG150C-F02

AMG150C-F02
The SMC AMG series water separator is installed on the air pressure line to remove water drops from compressed air. Through the adoption of an element that is exclusively used for removing water droplets and the ample housing interior space, a 99%› water Water removal rate 99% Max operating pressure 1.0MPa Fluororubber material Medium air pressure Drain guide IN-OUT reversal direction Degreasing wash White Vaseline
$167.04
Picture of 300 l/min G 1/4 Pneumatic Separator, 5μm filtration, 0.1MPa to 10 bar, SMC, AMG150C-F02C

300 l/min G 1/4 Pneumatic Separator, 5μm filtration, 0.1MPa to 10 bar, SMC, AMG150C-F02C

AMG150C-F02C
The SMC AMG series water separator is installed on the air pressure line to remove water drops from compressed air. Through the adoption of an element that is exclusively used for removing water droplets and the ample housing interior space, a 99%› water Water removal rate 99% Max operating pressure 1.0MPa Fluororubber material Medium air pressure Drain guide IN-OUT reversal direction Degreasing wash White Vaseline
$288.41
Picture of 300 l/min G 1/8 Pneumatic Separator, 0.5bar to 10 bar, SMC, AMG150C-02C

300 l/min G 1/8 Pneumatic Separator, 0.5bar to 10 bar, SMC, AMG150C-02C

AMG150C-02C
The SMC AMG series water separator is installed on the air pressure line to remove water drops from compressed air. Through the adoption of an element that is exclusively used for removing water droplets and the ample housing interior space, a 99%› water Water removal rate 99% Max operating pressure 1.0MPa Fluororubber material Medium air pressure Drain guide IN-OUT reversal direction Degreasing wash White Vaseline
$288.41
