Pneumatic Piston Rod Cylinders

The SMC C85 series single rod, double acting, conforms to ISO 6432 and CETOP RP52P. The C85 is available in bore sizes 16mm through 10mm stroke. A unique rod packing's design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable piston rod seals, the C85 offers exceptional service life Auto switch capable Easy accurate mounting Minimized side clearance Ambient and fluid temperature -20 °C to 80 °C Without auto switch (No freezing)

The SMC series CUJ miniature free mount series is a space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke lengths up to 20mm for double acting and 10mm for single acting. Options include auto switch capabilities, double and single acting, mounting from 4 directions. Miniature free mount Space saving compact cylinder

The SMC CQS single rod, double acting version of the compact cylinder is available for those small bore cylinder application where saving space is a concern. It used both switch capable and non-switch capable body style and has auto switch mounting allow for flexible designing requirements. The long stroke version incorporate a wear band and thicker piston to handle the increased bearing need of the longer stroke. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Reduction in labour for design Reduction of installation space

The SMC C85-S/T series has single rod, single acting, conforms to ISO 6432 and it has 25 mm of bore size. A unique rod packing's design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable piston rod seals, it offers exceptional service life. Ambient and fluid temperature ranges from -10 to 60°C Auto switch capable

The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life. High quality bronze bush in clevis bearing extends the life of cylinder Double swaging of the end covers of the barrel provides an absolutely air tight union Easy accurate mounting Minimized side clearance

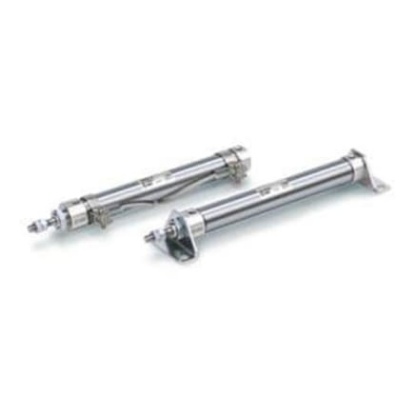

The SMC CJ2-Z series pneumatic air cylinder double acting offer stainless steel tubing and stainless steel rods. It has stroke length of up to 15 mm. he bearing portions of the rod cover and the clevis have been improved in wear resistance to ensure the longevity of the cylinder. Easy installation Reduced piston rod deflection High speed actuation possible

The SMC CJ2-Z double acting, non-rotating single rod, stainless steel tube, air cylinder has 10 mm of bore sizes with stroke length from 60 mm . It is available in 7 mounting types for versatility. The features include port location and magnet for auto-switch capability. Ambient and fluid temperature -10 °C to 60 °C (with auto switch) Easy fine adjustments of auto switch position Rod end deflection accuracy improved

The SMC CQS single rod, single acting version of the compact cylinder is available for those small bore cylinder applications where saving space is a concern. Here both switch capable and non-switch capable body style are the same. It has 16 mm of bore size. 2 way basic mounting through hole or both ends tapped Auto switch mounting allows for flexible designing requirements Reduction of installation space

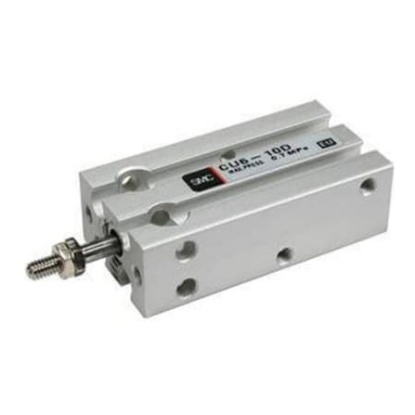

The SMC CU series single rod, double acting free mount cylinder saves space and allows direct and precise mounting. It has 16 mm of bore sizes with stroke lengths up to 15 mm. The options include auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. Auto switch capable Non- lube lubrication Piston speed 50 to 500 mm/s

The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life. High quality bronze bush in clevis bearing extends the life of cylinder Double swaging of the end covers of the barrel provides an absolutely air tight union Easy accurate mounting Minimized side clearance

The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life. High quality bronze bush in clevis bearing extends the life of cylinder Double swaging of the end covers of the barrel provides an absolutely air tight union Easy accurate mounting Minimized side clearance

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Small auto switch Reduction in labour for design Lighter weight
