Pneumatic Piston Rod Cylinders

The SMC Compact cylinder is small type of auto switch can be mounted from 4 directions. No protrusion of auto switch from the mounting slot. Easy maintenance Piston area equivalent to 32 mm

C55 Compact ISO Cylinder ISO Standard compact cylinder with hard anodized aluminium body. Available as double acting with magnetic piston as standard. ISO standard 21287 Compact Magnetic sensing Note Fastening elements should be ordered separately. Standards ISO 21287

C55 Compact ISO Cylinder ISO Standard compact cylinder with hard anodized aluminium body. Available as double acting with magnetic piston as standard. ISO standard 21287 Compact Magnetic sensing Note Fastening elements should be ordered separately. Standards ISO 21287 For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

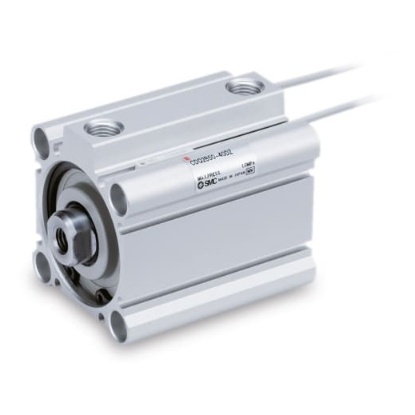

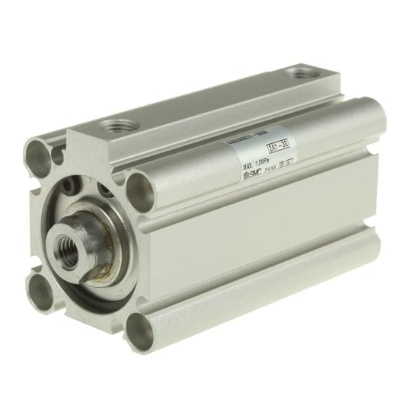

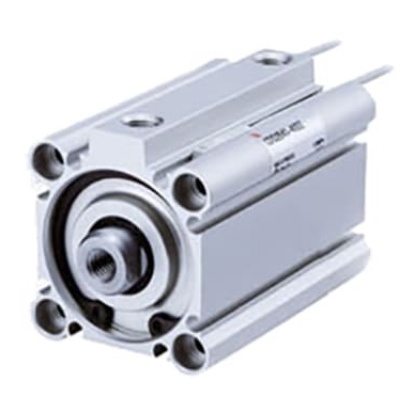

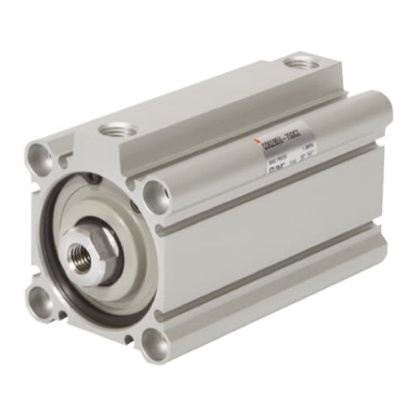

CQ2 Series Compact Cylinders Compact space saving cylinders Double acting, Single rod Wide range of options available Auto switch capable Proof pressure: 1.5 MPa Maximum operating pressure: 1.0 MPa

Cylinders Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs. Space and weight saving Magnetic piston Proof pressure 15bar Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max Supplied with tapered and parallel ports Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch) Internal female threaded rod ends Nitrile seals Lubrication not required Suitable for solid state switch D-M9PL

The SMC series CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 32mm bore sizes with the same mounting dimensions as the CQ2. The guide rod and plate allow work to be directly mounted. The CQM series offers 4 times the lateral load resistance of the CQ2K and non-rotating accuracy of ±0.2°. Guide rod type compact cylinder 4 times the lateral load resistance of the CQ2K Non-rotating accuracy 0.2 or less

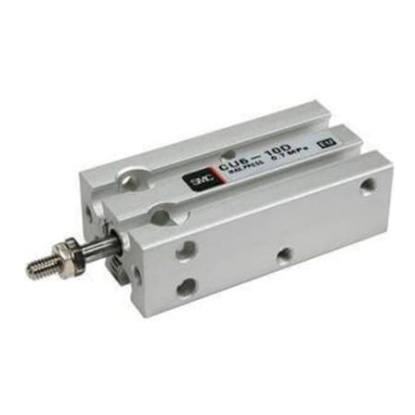

The SMC CU series free mount cylinder comes with multiple surface direct mounted rectangular body with no brackets allows freedom of the mounting surface. This enables space-saving designs for equipment. It is available in 6mm to 32mm bore sizes with stroke lengths up to 50mm. Auto switch capable Any surfaces can be used for mounting Fluid is air

Cylinders Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs. Space and weight saving Magnetic piston Proof pressure 15bar Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max Supplied with tapered and parallel ports Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch) Internal female threaded rod ends Nitrile seals Lubrication not required Suitable for solid state switch D-M9PL For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

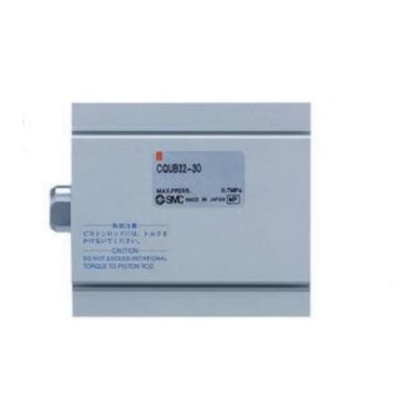

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. A round slot for mounting small auto switches is provided on 4 surfaces Available up to ø200 Rubber cushion available

The SMC CQM series is a compact cylinder integrated with a guide rod and plate. The non-rotatable cylinders feature a hard anodized aluminium body, and are available as double-acting units with a magnetic piston as standard. It has stroke of 5 mm. Non-rotating accuracy is 0.2 or less Rubber bumper on both ends Fluid is air Offer a lateral load resistance

SMC CDQ-Z Compact Cylinder SMC have improved there already excellent CQ2 range of compact pneumatic cylinders. The CQ2-Z series of this popular range of compact actuators has an entirely redesigned body that is 5-13% lighter than the original and increased auto switch mounting options. Integrated auto switch channels designed for the dual colour solid state switches reduces the risk of damage during installation and maintenance. Available in bore sizes 32 to 63mm and 5, 10, 15 and 75mm stroke options. SMC CDQ Series

The SMC series CDQ compact cylinders with guide rod. The capability to mount auto switches on any of the 4 surfaces. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work. Bore size is 32mm. Guide rod type compact cylinder 4 times the lateral load resistance of the CQ2K Non-rotating accuracy 0.2 or less
