Pneumatic Piston Rod Cylinders

The SMC series CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 32mm bore sizes with the same mounting dimensions as the CQ2. The guide rod and plate allow work to be directly mounted. The CQM series offers 4 times the lateral load resistance of the CQ2K and non-rotating accuracy of ±0.2°. Guide rod type compact cylinder 4 times the lateral load resistance of the CQ2K Non-rotating accuracy 0.2 or less

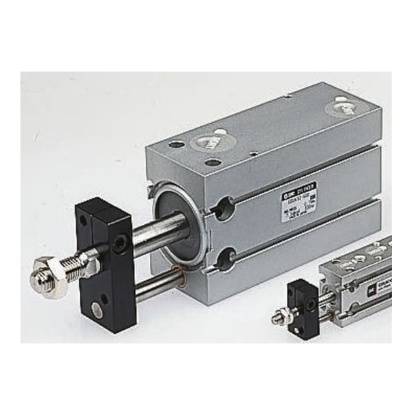

CDUK Series Universal Assembly Cylinders Range of double acting cylinders with anti-rotation rod. Rectangular design for universal assembly either flat or side. End of stroke damping by rubber washer on both sides. Magnetic piston on all versions. Sensor with LED available as an option. CDU 10 - 32mm Diameter A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. Standard strokes up to 50 mm Rubber cushion available

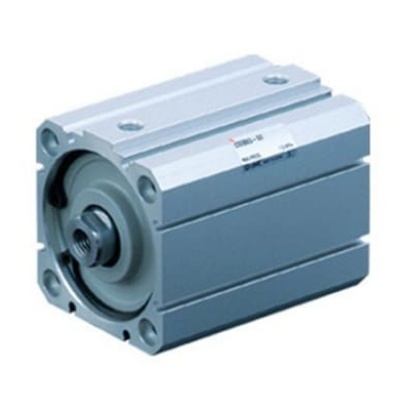

The SMC C55 series pneumatic compact cylinder made from hard anodised aluminium alloy and it has in built magnet. It has stroke length of up to 30 mm including the benefits of standardised mounting dimensions. It achieves outstanding load performance due to its unique rubber bumper, piston wear ring, and rod bushing. Lightweight Conforms with the ISO 21287 standard It is possible to mount small auto switches on 4 surfaces

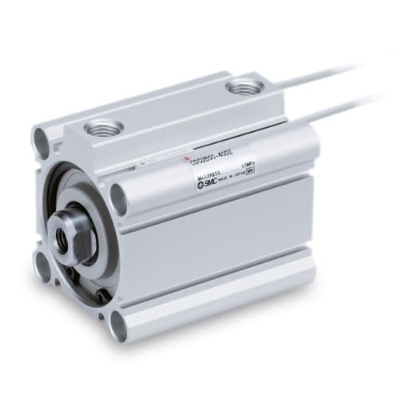

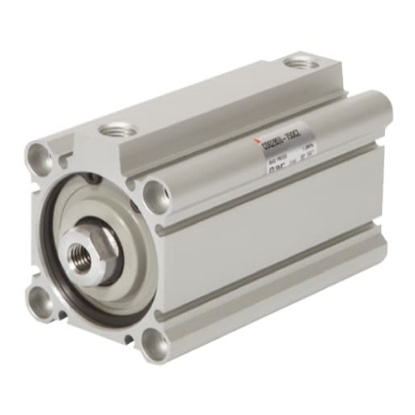

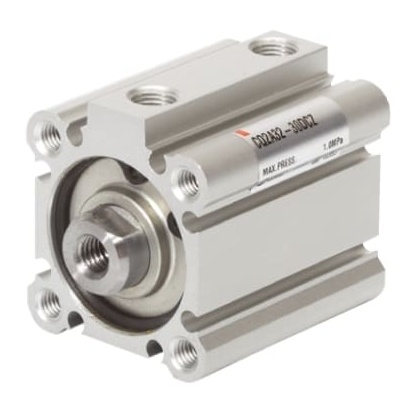

CQ2 Series Compact Cylinders Compact space saving cylinders Double acting, Single rod Wide range of options available Auto switch capable Proof pressure: 1.5 MPa Maximum operating pressure: 1.0 MPa

Cylinders Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs. Space and weight saving Magnetic piston Proof pressure 15bar Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max Supplied with tapered and parallel ports Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch) Internal female threaded rod ends Nitrile seals Lubrication not required Suitable for solid state switch D-M9PL

Cylinders Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs. Space and weight saving Magnetic piston Proof pressure 15bar Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max Supplied with tapered and parallel ports Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch) Internal female threaded rod ends Nitrile seals Lubrication not required Suitable for solid state switch D-M9PL

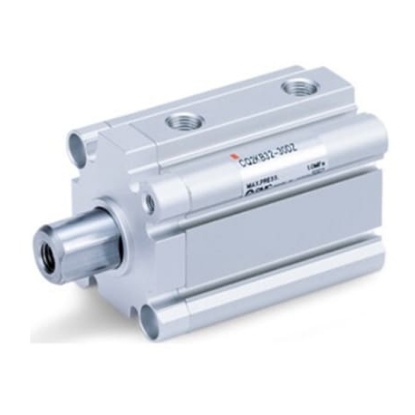

The SMC CQ2K series compact cylinder has redesigned with a new body and it is made from hard anodised aluminium alloy. It is double acting, single rod with auto switch mounting groove. These cylinders are designed to operate using relatively low air pressure of up to 1.0 Map. Ambient and fluid temperature ranges from -10 to 60°C Fluid is air Lubrication not required Proof pressure 15 bar Lighter weight

The SMC C55 series pneumatic compact cylinder made from hard anodised aluminium alloy and it has in built magnet. These cylinders are designed to operate using relatively low air pressure of up to 1.0 Map. It has stroke length of up to 40 mm including the benefits of standardised mounting dimensions. Space saving cylinder designed with a compact body Lightweight Compliant with ISO standards It is possible to mount small auto switches on 4 surfaces

C55 Compact ISO Cylinder ISO Standard compact cylinder with hard anodized aluminium body. Available as double acting with magnetic piston as standard. ISO standard 21287 Compact Magnetic sensing Note Fastening elements should be ordered separately. Standards ISO 21287

Cylinders Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs. Space and weight saving Magnetic piston Proof pressure 15bar Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max Supplied with tapered and parallel ports Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch) Internal female threaded rod ends Nitrile seals Lubrication not required Suitable for solid state switch D-M9PL

The SMC series CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 32mm bore sizes with the same mounting dimensions as the CQ2. The guide rod and plate allow work to be directly mounted. The CQM series offers 4 times the lateral load resistance of the CQ2K and non-rotating accuracy of ±0.2°. Guide rod type compact cylinder 4 times the lateral load resistance of the CQ2K Non-rotating accuracy 0.2 or less
