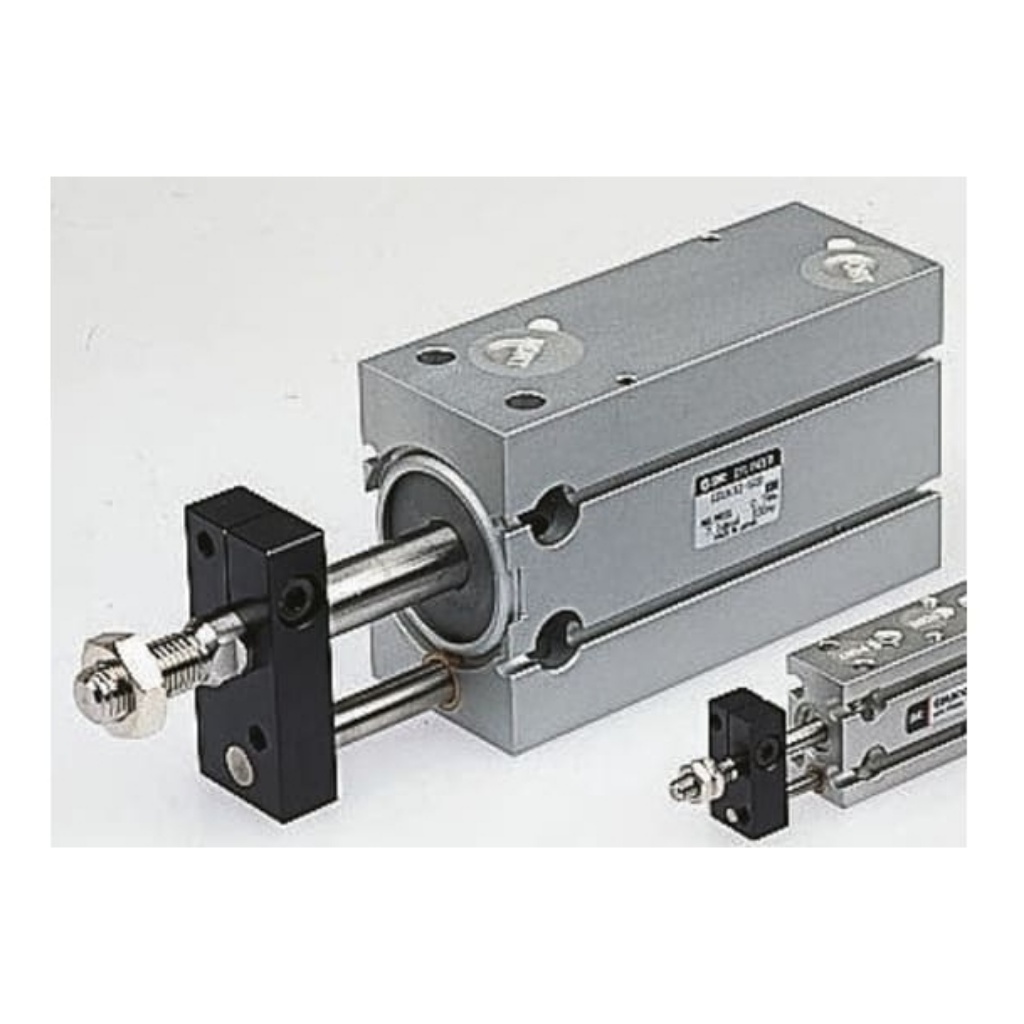

Picture of Pneumatic Compact Cylinder - 32mm Bore, 25mm Stroke, CUK Series, Double Acting, SMC, ECDUK32-25D

Pneumatic Compact Cylinder - 32mm Bore, 25mm Stroke, CUK Series, Double Acting, SMC, ECDUK32-25D

CDUK Series Universal Assembly Cylinders

Range of double acting cylinders with anti-rotation rod.
Rectangular design for universal assembly either flat or side.
End of stroke damping by rubber washer on both sides.
Magnetic piston on all versions.
Sensor with LED available as an option.

CDU 10 - 32mm Diameter

A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.
Manufacturer: SMC
SKU: ECDUK32-25D
$287.63
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke25mm
Bore32mm
ActionDouble
Manufacturer SeriesCUK
Length109mm
Cushioning TypeRubber
Dimensions109 x 40 x 62mm
Width40mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure0.7 MPa
Height62mm
Maximum Operating Temperature+70°C
Weight435g
Minimum Operating Temperature-10°C
