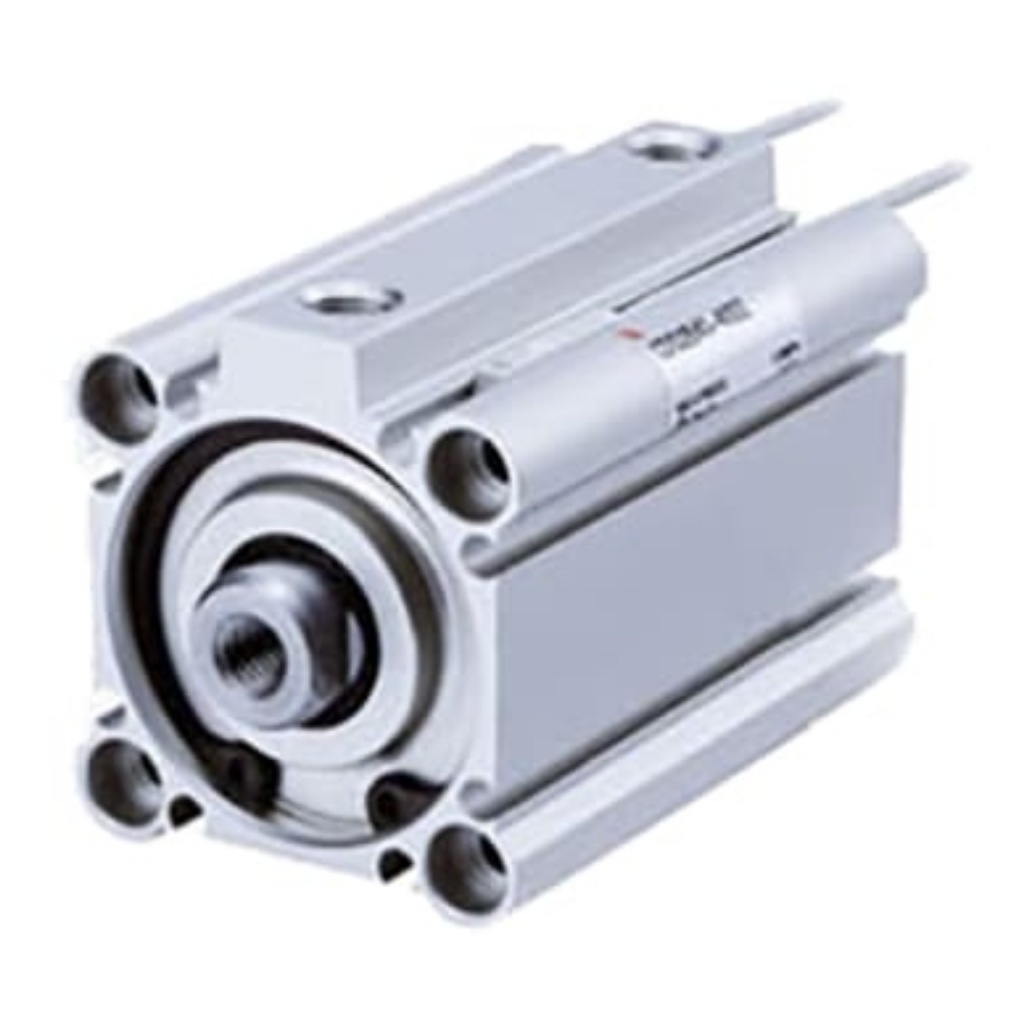

Picture of Pneumatic Compact Cylinder - 32mm Bore, 5mm Stroke, Double Acting, SMC, CDQ2B32TF-5DZ

Pneumatic Compact Cylinder - 32mm Bore, 5mm Stroke, Double Acting, SMC, CDQ2B32TF-5DZ

SMC CDQ-Z Compact Cylinder

SMC have improved there already excellent CQ2 range of compact pneumatic cylinders. The CQ2-Z series of this popular range of compact actuators has an entirely redesigned body that is 5-13% lighter than the original and increased auto switch mounting options. Integrated auto switch channels designed for the dual colour solid state switches reduces the risk of damage during installation and maintenance. Available in bore sizes 32 to 63mm and 5, 10, 15 and 75mm stroke options.

SMC CDQ Series
Manufacturer: SMC
SKU: CDQ2B32TF-5DZ
$118.69
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke5mm
Bore32mm
ActionDouble
Length35mm
Cushioning TypeNot Cushioned
Dimensions35 x 49.5 x 45mm
Width49.5mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Height45mm
Weight182g
Minimum Operating Temperature-10°C
Maximum Operating Temperature+60°C
