Pneumatic Piston Rod Cylinders

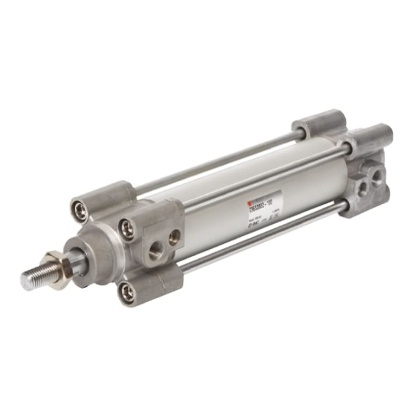

C96 series profile cylinders Double action single rod cylinders Basic mounting without bracket Built-in magnet without auto-switch Air Cushion at both ends C96 series Profile Cylinders and accessories

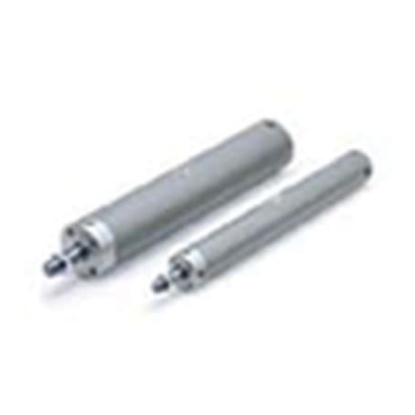

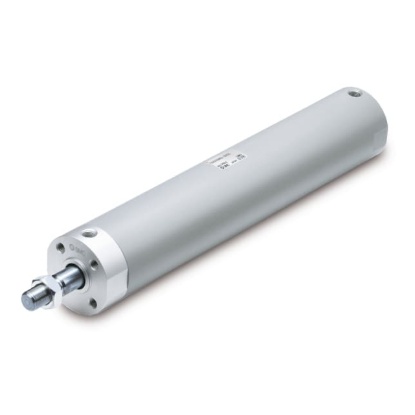

CG1 Air Cylinder The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options. Air Cylinder, Double Acting, Single Rod Built-in magnet Proof pressure: 1.5 MPa Maximum operating pressure: 1.0 MPa Minimum operating pressure: 0.05 MPa Cushion: Rubber bumper

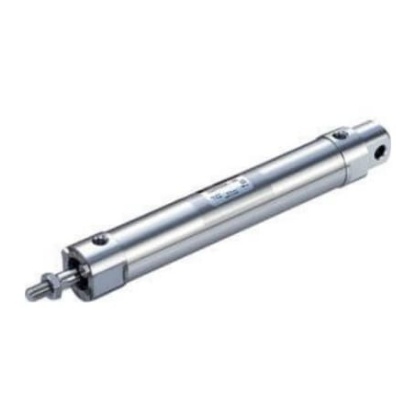

The SMC stainless steel cylinder is perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. Th Special scraper prevents water from entering cylinder Bore sizes (mm) 20, 25, 32, 40, 50, 63, 80 and 100 Auto switch capable

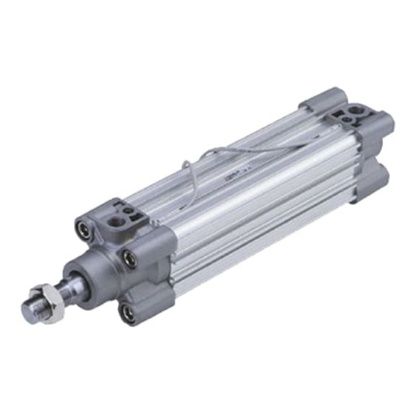

CP96-C Double Acting Cylinder The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body. CP96 Series

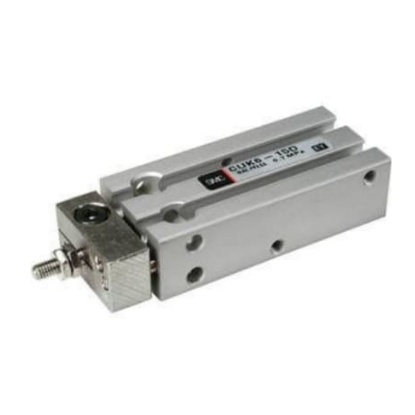

The SMC free mount cylinder has multiple surface direct mounted rectangular body with no brackets allows freedom of the mounting surface. It has auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. Non-rotating Rod Bore sizes from 6mm to 32mm available Stroke lengths up to 50mm

The SMC free mount cylinder has multiple surface direct mounted rectangular body with no brackets allows freedom of the mounting surface. It has auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. Non-rotating Rod Bore sizes from 6mm to 32mm available Stroke lengths up to 50mm

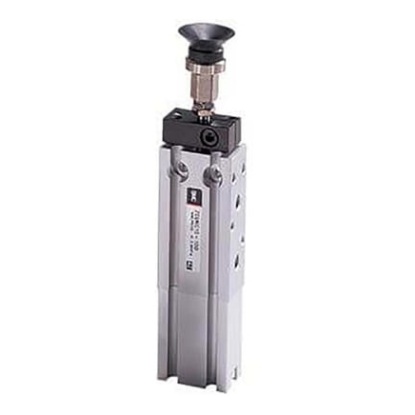

The ZCUK series is a non-rotating free mount cylinder for vacuum applications. The ZCUK was created by providing a vacuum passage in the rod of the CUK cylinder to enable a vacuum pad to be installed on the end of the rod. A guide is provided as standard equipment. Vacuum pads are available with pad diameters of ø2 to ø50. Cap or rod piping is available to the rod side. Series ZCUK is available in 5 bore diameters.

The SMC air cylinders offer a simple, space saving design with high dimensional accuracy, making these cylinders very easy to use. Large spanner flats on the rod and head covers greatly simplify their installation and positioning. Low friction and the sta Single acting, single rod, non-rotating Spring return or spring extend 32, 40 (mm) bore sizes Strokes up to 250 mm Auto switch capable

The SMC single rod, double acting air cylinder has 8 bore sizes and can meet any application need. The tube is impact extruded aluminium to produce an extraordinarily smooth finish, allow low break-away pressure and smooth stroke action. Female piston rod Easy fine adjustment of auto switch position Various mounting bracket options

CP96-C Double Acting Cylinder The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body. CP96 Series

The SMC free mount cylinder has multiple surface direct mounted rectangular body with no brackets allows freedom of the mounting surface. It has auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. Non-rotating Rod Bore sizes from 6mm to 32mm available Stroke lengths up to 50mm

The SMC dual piston rod cylinder has ball blushing bearing . It has strokes from 10mm through 100mm depending upon bore size. Auto switch capable Deflection ± 0.03mm
