Pneumatic Piston Rod Cylinders

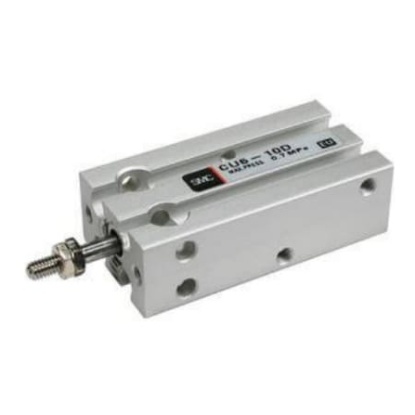

CU Series Cylinders The series CU free mount cylinder saves space and allows direct and precise mounting, Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, single and double acting and rubber bumpers standard. Maximum operating pressure 7 bar, 10.5 bar proof pressure Ambient and fluid temperature 5°C to 60°C Lubrication not required Rubber cushion to both sides Stroke allowance +1.0mm Port size M5, except 32Ø which is Rc(PT) 1//8 in. CDU 10 - 32mm Diameter A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.

The SMC compact type dual piston rod cylinder has non-rotating accuracy ± 0.1°. The high precision ball bushing type allows for smooth operation that ensures stable travel resistance. Auto switch can be installed from 3 directions Symmetric mounting Axial piping available

The SMC compact type dual piston rod cylinder has non-rotating accuracy ± 0.1°. The high precision ball bushing type allows for smooth operation that ensures stable travel resistance. Auto switch can be installed from 3 directions Symmetric mounting Axial piping available

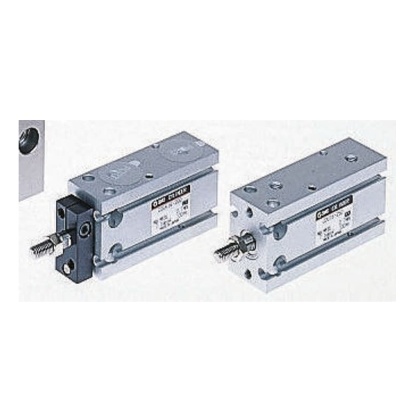

The SMC free mount cylinder has multiple surface direct mounted rectangular body with no brackets allows freedom of the mounting surface. It has auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. Non-rotating Rod Bore sizes from 6mm to 32mm available Stroke lengths up to 50mm

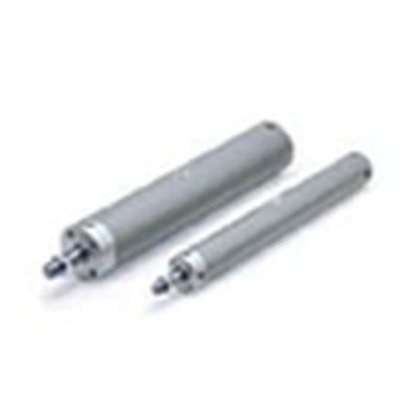

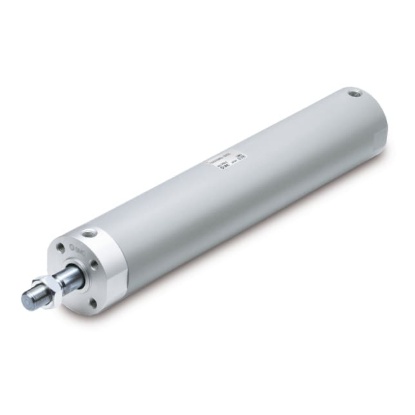

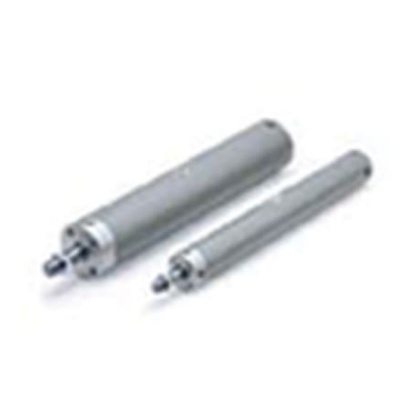

CG1 Air Cylinder The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options. Air Cylinder, Double Acting, Single Rod Built-in magnet Proof pressure: 1.5 MPa Maximum operating pressure: 1.0 MPa Minimum operating pressure: 0.05 MPa Cushion: Rubber bumper

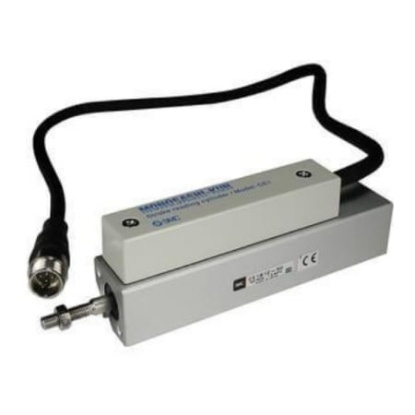

The SMC Scale cylinder it is the counter is reset by pressing the cylinder rod to the reference plane, that point becomes the home position. The accuracy is the difference between the dimensions based upon the signals of the scale cylinder and the absolut Confirmation of press-in Measurement of machining dimensions

The SMC single rod, double acting air cylinder has 8 bore sizes and can meet any application need. The tube is impact extruded aluminium to produce an extraordinarily smooth finish, allow low break-away pressure and smooth stroke action. Female piston rod Easy fine adjustment of auto switch position Various mounting bracket options

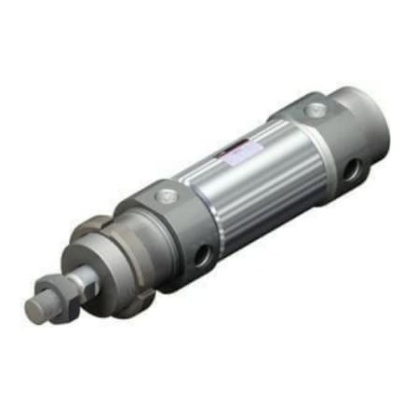

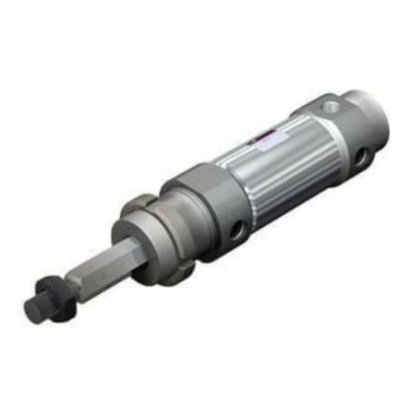

The SMC air cylinders offer a simple, space saving design with high dimensional accuracy, making these cylinders very easy to use. Large spanner flats on the rod and head covers greatly simplify their installation and positioning. Low friction and the sta Single acting, single rod, non-rotating Spring return or spring extend 32, 40 (mm) bore sizes Strokes up to 250 mm Auto switch capable

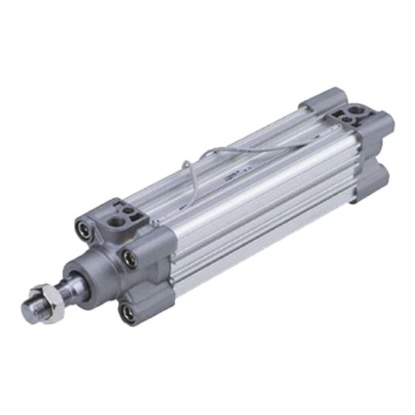

CP96-C Double Acting Cylinder The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body. CP96 Series

The SMC air cylinders offer a simple, space saving design with high dimensional accuracy, making these cylinders very easy to use. Large spanner flats on the rod and head covers greatly simplify their installation and positioning. Low friction and the sta Single acting, single rod, non-rotating Spring return or spring extend 32, 40 (mm) bore sizes Strokes up to 250 mm Auto switch capable

CG1 Air Cylinder The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options. Air Cylinder, Double Acting, Single Rod Built-in magnet Proof pressure: 1.5 MPa Maximum operating pressure: 1.0 MPa Minimum operating pressure: 0.05 MPa Cushion: Rubber bumper

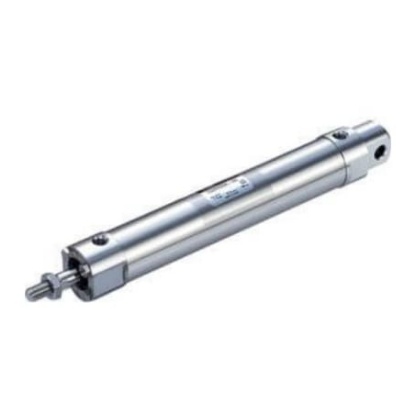

The SMC stainless steel cylinder is perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. Th Special scraper prevents water from entering cylinder Bore sizes (mm) 20, 25, 32, 40, 50, 63, 80 and 100 Auto switch capable
