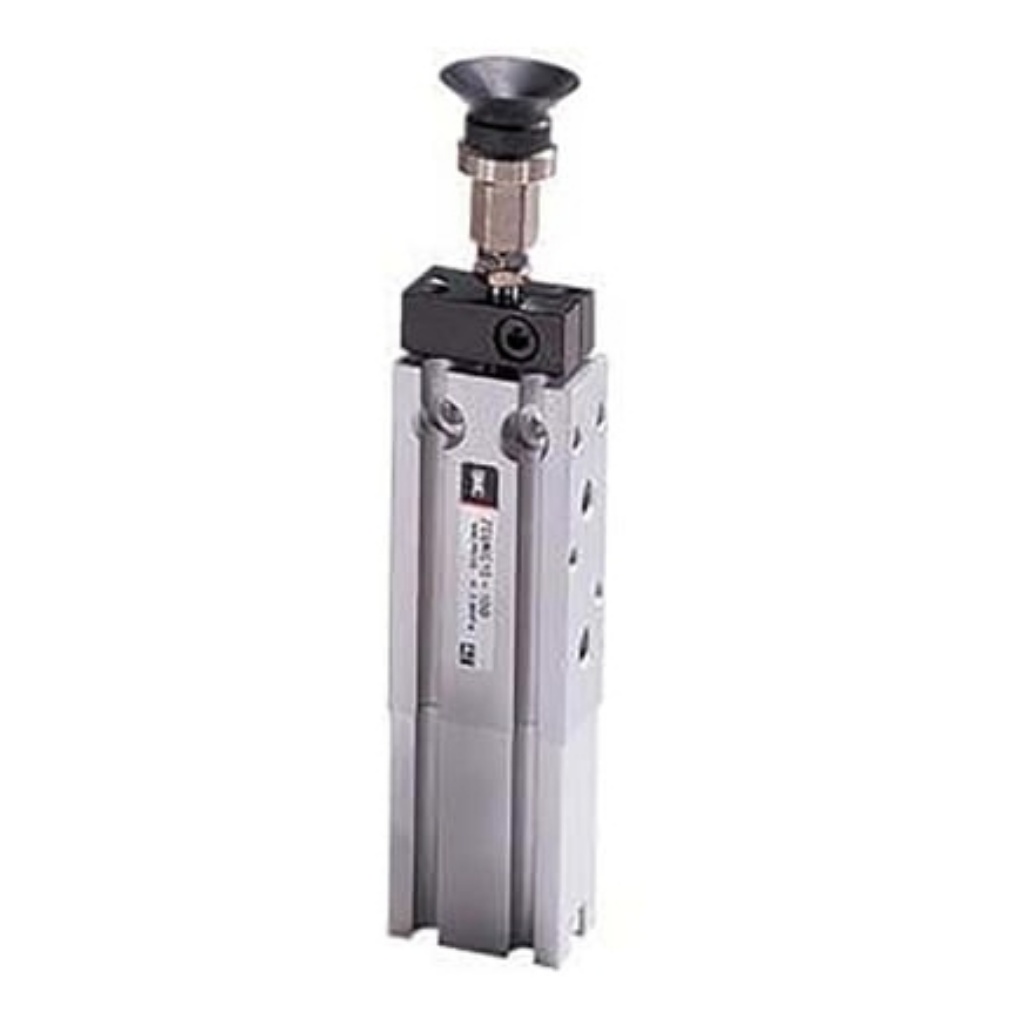

Picture of Pneumatic Piston Rod Cylinder - 32mm Bore, 25mm Stroke, ZCUK Series, Double Acting, SMC, ZCDUKC32-25D

Pneumatic Piston Rod Cylinder - 32mm Bore, 25mm Stroke, ZCUK Series, Double Acting, SMC, ZCDUKC32-25D

The ZCUK series is a non-rotating free mount cylinder for vacuum applications. The ZCUK was created by providing a vacuum passage in the rod of the CUK cylinder to enable a vacuum pad to be installed on the end of the rod. A guide is provided as standard equipment. Vacuum pads are available with pad diameters of ø2 to ø50. Cap or rod piping is available to the rod side. Series ZCUK is available in 5 bore diameters.
Manufacturer: SMC
SKU: ZCDUKC32-25D
$525.94
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke25mm
Bore32mm
ActionDouble
Manufacturer SeriesZCUK
Length141mm
Cushioning TypeRubber Bumper
Dimensions141 x 40 x 62mm
Width40mm
Absolute Maximum Pressure1.05MPa
Maximum Operating Pressure0.7 MPa
Height62mm
Maximum Operating Temperature+60°C
Minimum Operating Temperature-10°C
