Pneumatic Piston Rod Cylinders

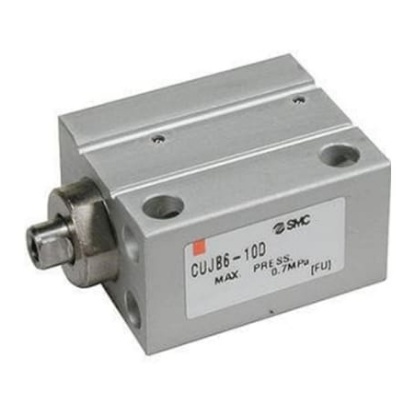

The SMC series CUJ miniature free mount series is a space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke lengths up to 20mm for double acting and 10mm for single acting. Options include auto switch capabilities, double and single acting, mounting from 4 directions. Miniature free mount Space saving compact cylinder

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Small auto switch Reduction in labour for design Lighter weight

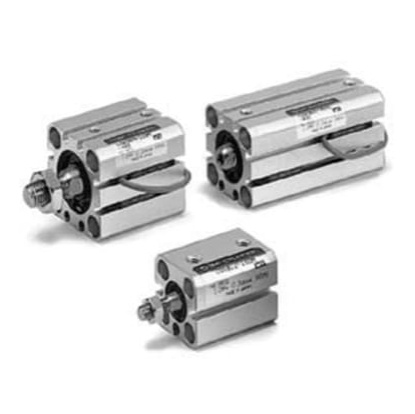

The SMC CQS single rod, double acting version of the compact cylinder is available for those small bore cylinder application where saving space is a concern. It used both switch capable and non-switch capable body style and has auto switch mounting allow for flexible designing requirements. The long stroke version incorporate a wear band and thicker piston to handle the increased bearing need of the longer stroke. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Reduction in labour for design Reduction of installation space

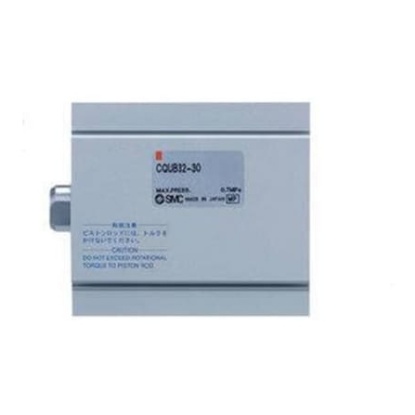

The SMC CQU series was designed to be a lightweight, compact plate type cylinder. It used double acting with single rod version. It has auto switches can be mounted without removing mounting brackets. It stroke length size is 15 mm. Total length reduced by up to 15% Volume reduced by up to 18% Easy maintenance

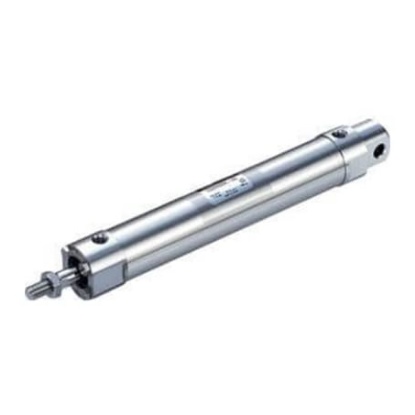

The SMC CG5-S series used double acting, single rod which is a stainless steel cylinder, it is perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products. The use of stainless steel (SUS304) on external metal parts provides improved corrosion resistance in environments with exposure to water Auto switch capable Special scraper prevents water from entering cylinder

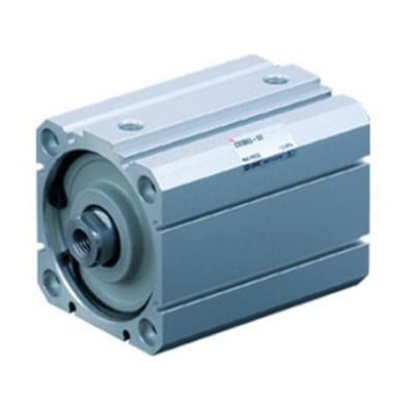

The SMC C55 series pneumatic compact cylinder made from hard anodised aluminium alloy and it has in built magnet. It has stroke length of up to 20 mm including the benefits of standardised mounting dimensions. It achieves outstanding load performance due to its unique rubber bumper, piston wear ring, and rod bushing. Double acting Possible to mount small auto switches on 4 surfaces Conforms with the ISO 21287 standard

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Small auto switch Reduction in labour for design Lighter weight

The SMC CQS single rod, single acting version of the compact cylinder is available for those small bore cylinder applications where saving space is a concern. Here both switch capable and non-switch capable body style are the same. It has 20 mm of bore size. 2 way basic mounting through hole or both ends tapped Auto switch mounting allows for flexible designing requirements Reduction of installation space

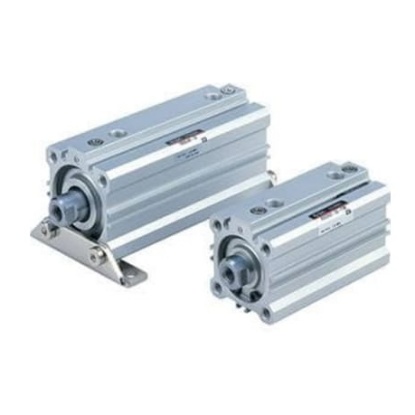

The SMC RQ series air cushion construction allow to retain the merits of a compact cylinder. The unique air cushion construction eliminate the cushion ring used in conventional type air cushions, which reduce the overall length of the cylinder. It used maximum operating pressure 0.1 MPa and used non-lune pneumatic type. More compact installation space possible Improved noise reduction Improved repeatability Noise reduction

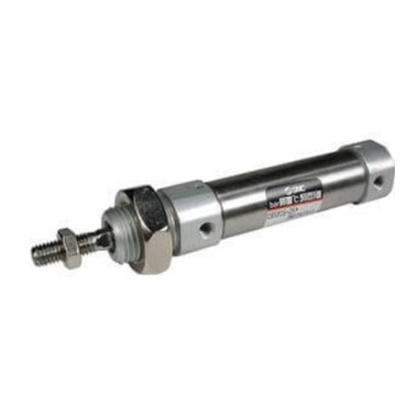

The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life. High quality bronze bush in clevis bearing extends the life of cylinder Double swaging of the end covers of the barrel provides an absolutely air tight union Easy accurate mounting Minimized side clearance

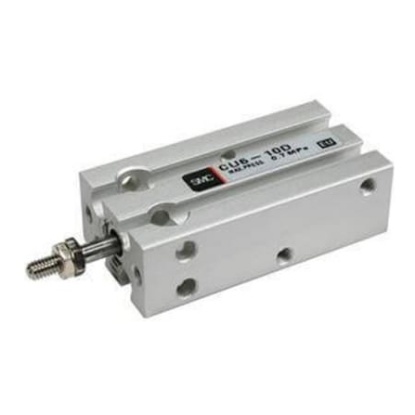

The SMC CU series single rod, double acting free mount cylinder saves space and allows direct and precise mounting. It has 20 mm of bore sizes with stroke lengths up to 25 mm. The options include auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. Auto switch capable Non- lube lubrication Piston speed 50 to 500 mm/s

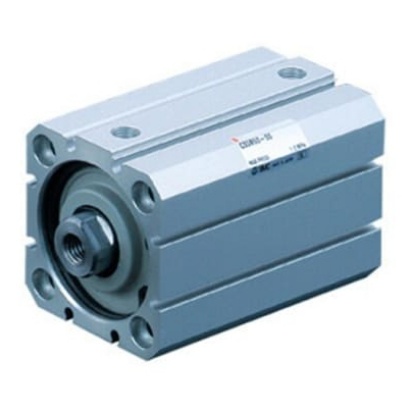

The SMC C55 series pneumatic compact cylinder made from hard anodised aluminium alloy and it has in built magnet. It has stroke length of up to 30 mm including the benefits of standardised mounting dimensions. It achieves outstanding load performance due to its unique rubber bumper, piston wear ring, and rod bushing. Double acting Possible to mount small auto switches on 4 surfaces Conforms with the ISO 21287 standard
