Pneumatic Piston Rod Cylinders

The SMC C85 series pneumatic non-rotating rod air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life. High quality bronze bush in clevis bearing extends the life of cylinder Double swaging of the end covers of the barrel provides an absolutely air tight union Easy accurate mounting Minimized side clearance

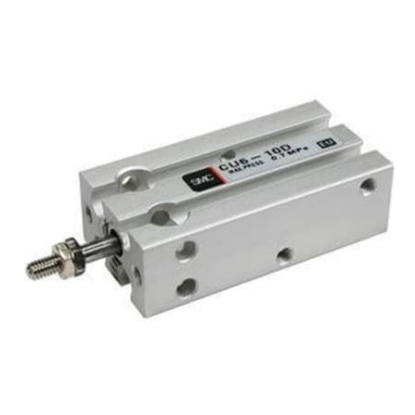

The SMC series CDU free mount cylinder and long stroke. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard. Spring return, spring extend Space saving Auto-switch capable

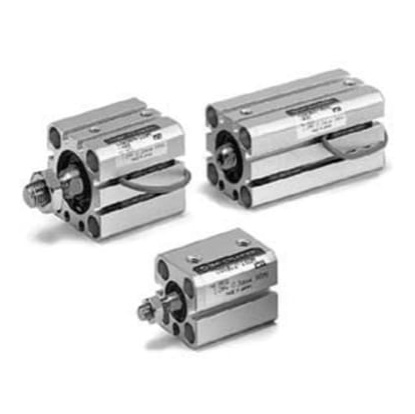

The SMC CQS single rod, double acting version of the compact cylinder is available for those small bore cylinder application where saving space is a concern. It used both switch capable and non-switch capable body style and has auto switch mounting allow for flexible designing requirements. The long stroke version incorporate a wear band and thicker piston to handle the increased bearing need of the longer stroke. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Reduction in labour for design Reduction of installation space

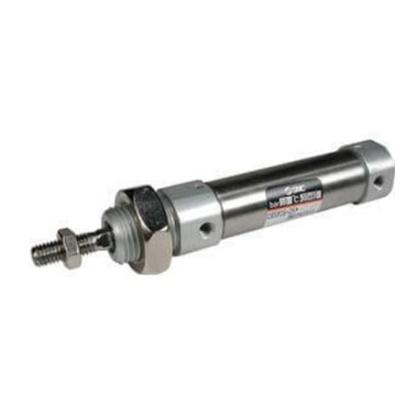

SMC C85 Pneumatic Cylinders SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. C85 cylinders are suppied with a piston rod locknut and nose-mounting nut; installation is made easy through the use of large spanner flats and the space-saving design.

The SMC C85 series single rod, double acting, conforms to ISO 6432 and CETOP RP52P. The C85 is available in bore sizes 20mm through 10mm stroke. A unique rod packing's design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable piston rod seals, the C85 offers exceptional service life Auto switch capable Easy accurate mounting Minimized side clearance Ambient and fluid temperature -20 °C to 80 °C Without auto switch (No freezing)

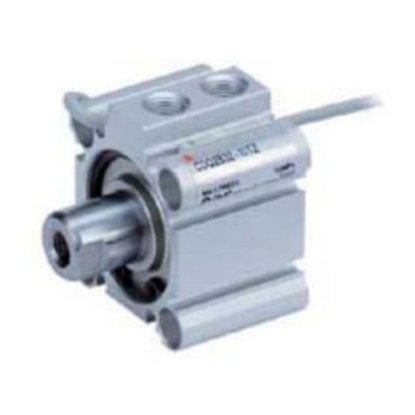

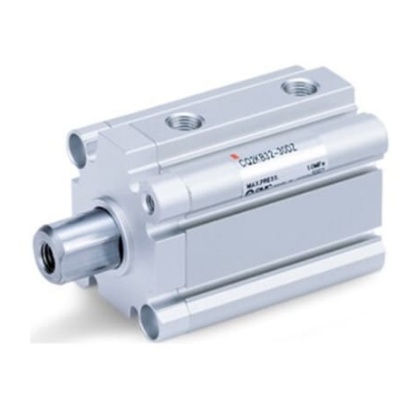

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Small auto switch Reduction in labour for design Lighter weight

The SMC series CQ2 offers compact cylinder with single acting and single rod. Improved auto-switch mounting possibilities plus an overall reduction of cylinder weight of between 5 -13% depending on the model. Minimise overall machine weight and increase the productivity Save space in your machines Fit CQ2 to your application requirements For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

The SMC CQS single rod, double acting version of the compact cylinder is available for those small bore cylinder application where saving space is a concern. It used both switch capable and non-switch capable body style and has auto switch mounting allow for flexible designing requirements. The long stroke version incorporate a wear band and thicker piston to handle the increased bearing need of the longer stroke. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Reduction in labour for design Reduction of installation space

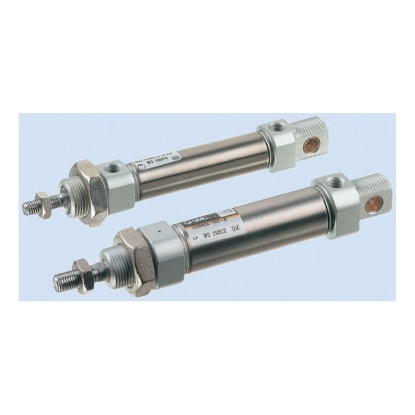

The SMC C85-S/T series has single rod, single acting, conforms to ISO 6432 and it has 25 mm of bore size. A unique rod packing's design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable piston rod seals, it offers exceptional service life. Ambient and fluid temperature ranges from -10 to 60°C Auto switch capable

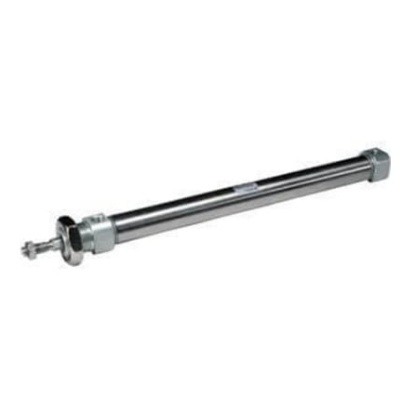

The SMC C85 series single rod, double acting, conforms to ISO 6432 and CETOP RP52P. The C85 is available in bore sizes 20mm through 140mm stroke. A unique rod packing's design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable piston rod seals, the C85 offers exceptional service life Auto switch capable Easy accurate mounting Minimized side clearance Ambient and fluid temperature -20 °C to 80 °C Without auto switch (No freezing)

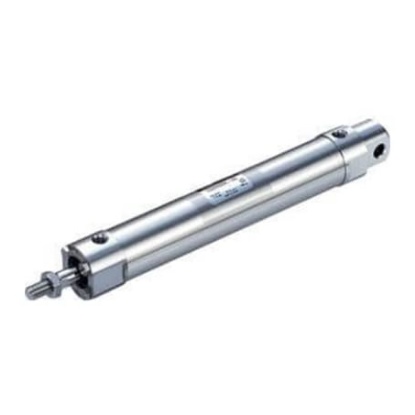

The SMC CG5-S series used double acting, single rod which is a stainless steel cylinder, it is perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products. The use of stainless steel (SUS304) on external metal parts provides improved corrosion resistance in environments with exposure to water Auto switch capable Special scraper prevents water from entering cylinder

The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life. High quality bronze bush in clevis bearing extends the life of cylinder Double swaging of the end covers of the barrel provides an absolutely air tight union Easy accurate mounting Minimized side clearance
