Pneumatic Piston Rod Cylinders

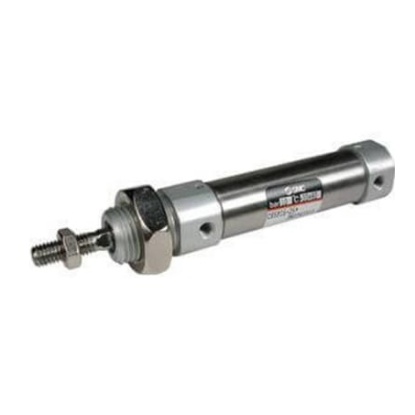

The SMC C85 series single rod, double acting, conforms to ISO 6432 and CETOP RP52P. The C85 is available in bore sizes 20mm through 60mm stroke. A unique rod packing's design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable piston rod seals, the C85 offers exceptional service life Auto switch capable Easy accurate mounting Minimized side clearance Ambient and fluid temperature -20 °C to 80 °C Without auto switch (No freezing)

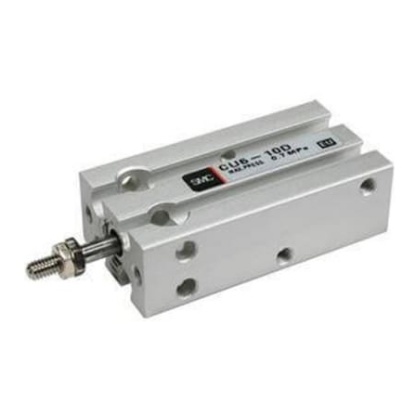

The SMC series CDU free mount cylinder and long stroke. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard. Spring return, spring extend Space saving Auto-switch capable

The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life. High quality bronze bush in clevis bearing extends the life of cylinder Double swaging of the end covers of the barrel provides an absolutely air tight union Easy accurate mounting Minimized side clearance

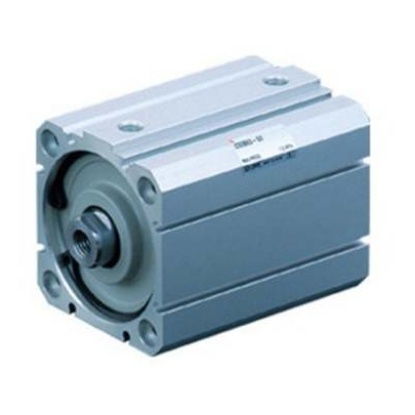

The SMC C55 double acting, air operated cylinder were designed to meet a broad range of automation machine application. It achieves outstanding load performance due to its unique rubber bumpers, piston wear ring, and rod bushing. It has standardized mounting options conform to both ISO 21287 and 6431. Snap ring construction allows easy and quicker maintenance Auto switched can be mounted on any of the four sides of the cylinder tube

The SMC series C85 offered double acting standard cylinder. It has a single rod. ISO 6432 Round Body Cylinder Bore sizes (mm) 8, 10, 12, 16, 20, 25 Standard strokes up to 300 mm Cylinder variations Non-rotating, direct mount, ATEX

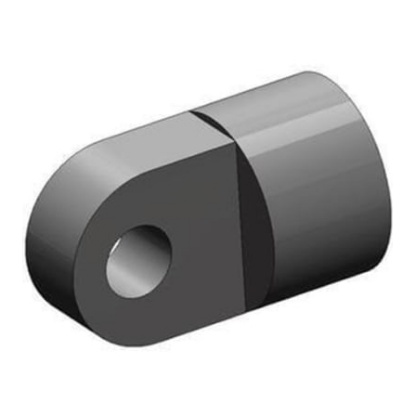

The SMC series CM mounting brackets for CM2 and CM3. Applicable series CM2, CM3 Type flange, foot, trunnion, single and double clevis Applicable bore sizes (mm) 20 to 40

The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life. High quality bronze bush in clevis bearing extends the life of cylinder Double swaging of the end covers of the barrel provides an absolutely air tight union Easy accurate mounting Minimized side clearance

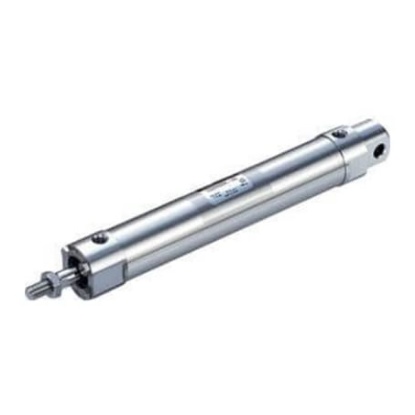

The SMC CG5-S series is a stainless steel cylinder, perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. It can be disassembled, allowing replacement of seals, which promotes an extended service life. It has double acting with single rod. Auto switch capability Special scraper prevents water from entering cylinder Ambient and fluid temperature without auto switch –10 to 70°C,

The SMC C85 series has single rod, double acting, conforms to ISO 6432 and it has 25 mm of bore size. A unique rod packing's design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable piston rod seals, it offers exceptional service life. Ambient and fluid temperature ranges from -10 to 60°C Auto switch capable

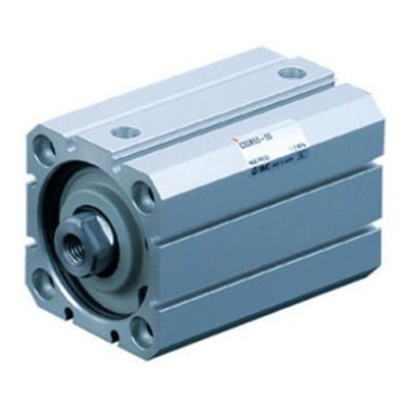

The SMC C55 series pneumatic compact cylinder made from hard anodised aluminium alloy and it has in built magnet. It has stroke length of up to 10 mm including the benefits of standardised mounting dimensions. It achieves outstanding load performance due to its unique rubber bumper, piston wear ring, and rod bushing. Double acting Possible to mount small auto switches on 4 surfaces Conforms with the ISO 21287 standard

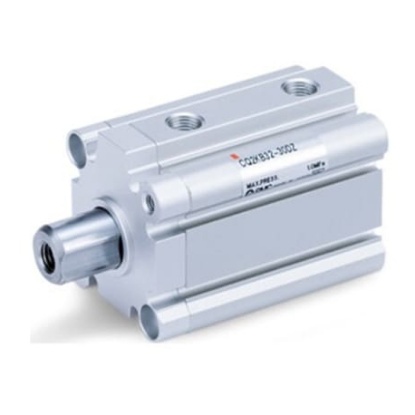

The SMC CQ2K series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C Small auto switch Reduction in labour for design Lighter weight

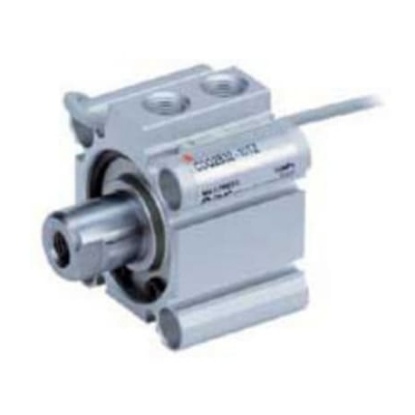

The SMC series CQ2 offers compact cylinder with single acting and single rod. Improved auto-switch mounting possibilities plus an overall reduction of cylinder weight of between 5 -13% depending on the model. Minimise overall machine weight and increase the productivity Save space in your machines Fit CQ2 to your application requirements
