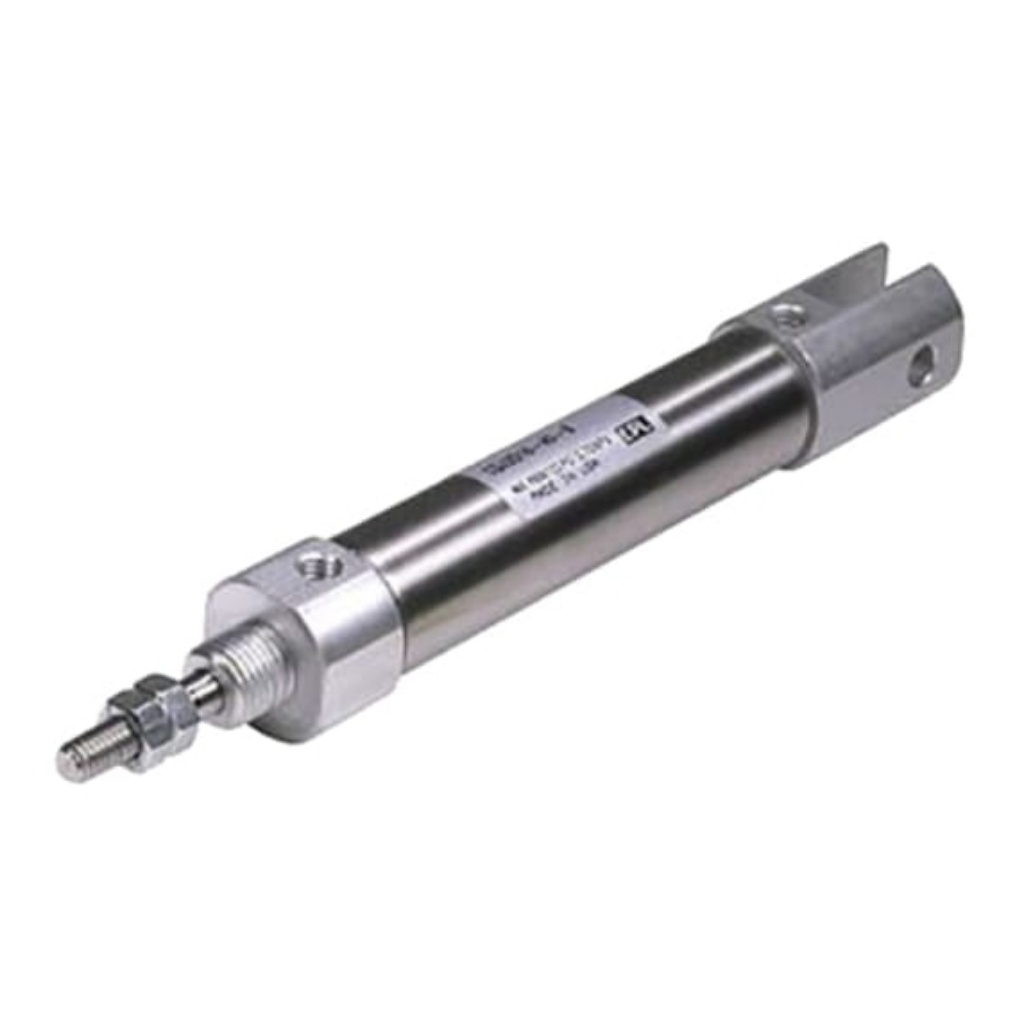

Picture of Pneumatic Piston Rod Cylinder - 16mm Bore, 100mm Stroke, Double Acting, SMC, CDJ2B16-100Z-B

Pneumatic Piston Rod Cylinder - 16mm Bore, 100mm Stroke, Double Acting, SMC, CDJ2B16-100Z-B

CJ2 Series Cylinders

The CJ2 series from SMC are miniature cylinders. Available in spring extend, spring return, or double acting offer stainless steel tubing and stainless steel rods.These pneumatic cylinders are available in various bore sizes and stroke lengths. Mounting options include basic, foot, front flange, and double rear clevis. Series CJ2 is auto switch capable.

Compact / lightweight mini air cylinders
Double acting, high speed
Built in magnet

Note

Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7bar).
Manufacturer: SMC
SKU: CDJ2B16-100Z-B
$111.19
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke100mm
Bore16mm
ActionDouble
Length175mm
Cushioning TypeRubber
Dimensions175 x 18 x 18mm
Width18mm
Absolute Maximum Pressure1.05MPa
Maximum Operating Pressure0.7 MPa
Height18mm
Minimum Operating Temperature-10°C
Weight55g
Maximum Operating Temperature60°C
Piston Speed50 → 750mm/s
