Pneumatic Cylinder & Actuator Accessories

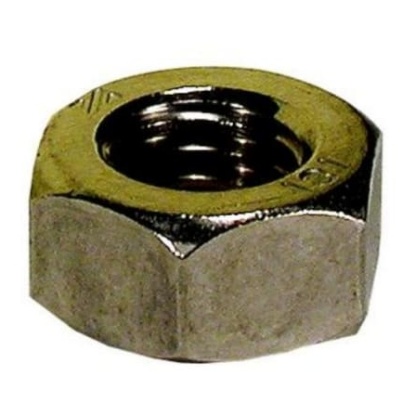

Steel Hex Nuts – Metric Thread A hex nut is a six sided nut that fastens screws and bolts efficiently and securely. They are the most common hexagonal fastener that has internal threads that screw on to the shank of a bolt or a hex cap screw. Because a hex nut has six sides, they have good granularity angles for tools to utilise. It takes one sixth of a rotation to obtain the next side of the hexagon and grip is optimal. This makes them great for those tight spots. Are they easy to assemble? Hex Nuts are designed to give the user an easy assembling experience. Typical Applications • Hex nuts are the most common type of nut and are for general-purpose fastening applications • Automotive applications • Construction industry • Machinery & workshops • DIY enthusiasts and professionals Features & Benefits • Hex nuts are available in a variety of sizes • They are also available in different finishes and materials • Offer an easy fasten and loosen experience for the users • Accessible from a 360 degree angle because of their dynamic shape • The hexagonal shaped nut makes it easy to work with and is versatile • Steel full hex nut, bright zinc plated • Grade 8

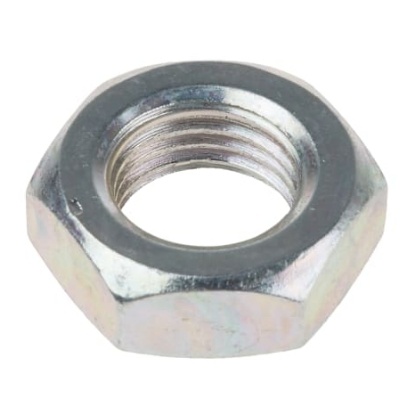

Steel Hex Nuts – Metric Thread A hex nut is a six sided nut that fastens screws and bolts efficiently and securely. They are the most common hexagonal fastener that has internal threads that screw on to the shank of a bolt or a hex cap screw. Because a hex nut has six sides, they have good granularity angles for tools to utilise. It takes one sixth of a rotation to obtain the next side of the hexagon and grip is optimal. This makes them great for those tight spots. Are they easy to assemble? Hex Nuts are designed to give the user an easy assembling experience. Typical Applications • Hex nuts are the most common type of nut and are for general-purpose fastening applications • Automotive applications • Construction industry • Machinery & workshops • DIY enthusiasts and professionals Features & Benefits • Hex nuts are available in a variety of sizes • They are also available in different finishes and materials • Offer an easy fasten and loosen experience for the users • Accessible from a 360 degree angle because of their dynamic shape • The hexagonal shaped nut makes it easy to work with and is versatile • Steel full hex nut, bright zinc plated • Grade 8

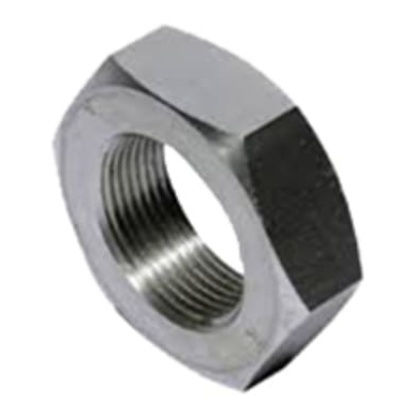

The SMC CHKD series is hydraulic cylinder. It is a rod end nut. A wide range of operating pressures, bore sizes, and standard strokes make wide selections possible. Light and compact aluminium body Auto switch can be mounted

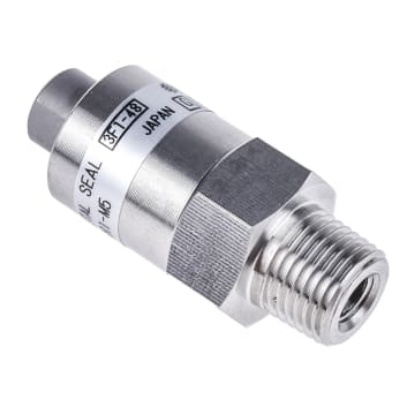

MQR Series Rotary Joint MQR series rotary pneumatic joints can supply air to rotating and sliding components. The rotary joint uses metal seals to prevent sticking and a long service life means it can be used for up to 1 billion rotations. Bearing supported R1/8 Male Port M5 x 0.8 Female Port 1.0 MPa maximum operating presure -100 kPa minimum operating pressure 3000 rpm max rotation speed 1N allowable radial load Rotary Joint

C55 Compact ISO Cylinder ISO Standard compact cylinder with hard anodized aluminium body. Available as double acting with magnetic piston as standard. ISO standard 21287 Compact Magnetic sensing Note Fastening elements should be ordered separately. Standards ISO 21287

CP95 / CP96 - Accessories

The SMC air slide table suitable for precision assembly. It improve mounting repeatability of work pieces and bodies. Improved work piece mounting repeatability Axial mounting is possible

The SMC RB shock absorber cap. Polyurethane material is use. It cannot be attached to the basic type. Temperature is –10 to 80 °C

The SMC MY series of side support B has 20 mm of bore size. Compatible with MY1C,MY1M

The SMC MY3B series is a standard type mechanically jointed rod less cylinder. The work pieces can be loaded directly on the work table due to the integrated guide. Applicable Fluid is air Operating temperature is 5 to 60 °C

The SMC Single clevis available with ball joint. This clevis has 50 mm bore size. Supplied with 4 mounting screws

The SMC TIE-ROD CYLINDER is a high-quality pneumatic actuator designed for efficient industrial automation. With its durable construction and precise engineering, this cylinder offers reliable performance for a wide range of applications. 50mm size for versatile usage Compatible with C95/C96 TIE-ROD CYLINDER Constructed with high-quality materials for durability Provides precise and efficient operation Ideal for industrial automation applications
