Pneumatic Cylinder & Actuator Accessories
Pneumatic cylinders and actuators often require various accessories to enhance their functionality, improve mounting options, and ensure precise control and long-term reliability. These accessories play a vital role in tailoring systems to specific applications.

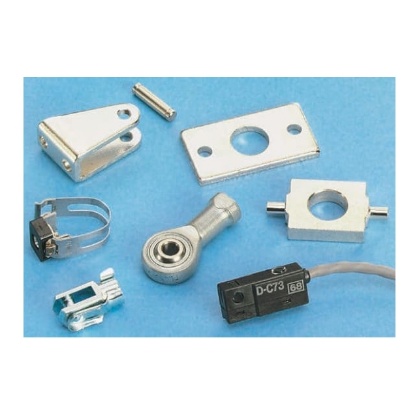

Common Accessories
- Mounting Brackets: Used to securely install cylinders in different orientations (flange, foot, clevis, trunnion, etc.).
- Rod Clevises and Eye Brackets: Allow attachment to loads or mechanical linkages.
- Pivot Pins: Used with clevis or trunnion mounts to allow angular motion.
- Cushioning Devices: Absorb impact at the end of strokes to reduce wear and noise.
- Proximity Sensors: Detect piston position and send signals for automation or feedback control.
- Rod Boots and Bellows: Protect piston rods from dust, debris, and contaminants.
- Flow Control Valves: Regulate the speed of cylinder movement by controlling airflow.
- Magnetic Rings: Enable external sensing of piston position when paired with magnetic sensors.
Why Accessories Are Important
- Ensure correct alignment and secure installation
- Improve durability and reduce mechanical stress
- Enable integration into automated systems
- Enhance control and performance
Application Examples
- Mounting brackets used to attach a cylinder to a conveyor system
- Proximity sensors used for stroke-end detection in a packaging machine
- Rod boots used in dirty environments like food processing or mining

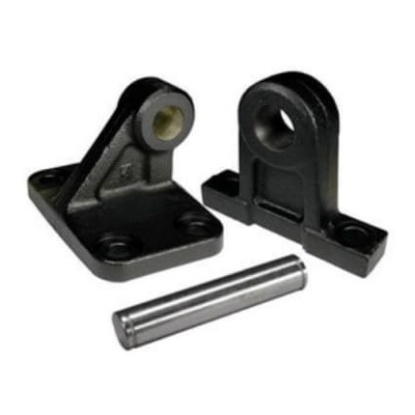

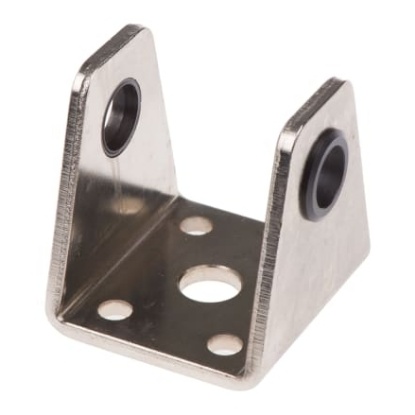

Pivot Bracket , For Use With Cylinder Mounting, SMC, E5040
E5040
The SMC CP96 is standard type double acting air cylinder. The bumper cushion reduce the metal noise that occur when piston stop.
Compact and light weight
$54.24
Pivot Bracket , SMC, DS5100
DS5100
The SMC series DS compact cylinder double acting. It has a single acting.
Applicable series CP96, C96, C95, CP95
Type clevis, flange and foot
Applicable bore sizes (mm) 32 to 125
$194.28

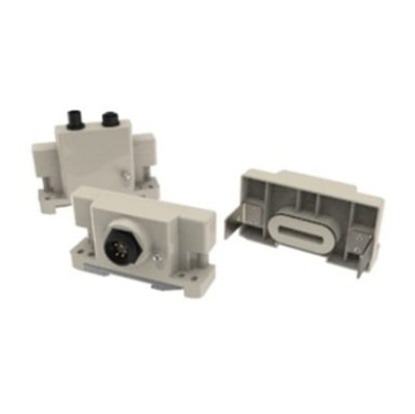

Plate , For Use With Wireless System, SMC, EX600-ED2-2
EX600-ED2-2
The SMC EX600 serial interface offers a full suite of diagnostics and programmable parameters to meet the most stringent requirements. The EX600 offers excellent flexibility including digital input, digital output and analog input unit options. With the use of D-sub output blocks, a maximum of 9 remote D-sub manifolds can be attached to one EX600 communication module.
Enclosure IP67 (Manifold Assembly)
Operating temperature range -10∼50° C
$312.79
Rear Clevis , For Use With CS1 Cylinder, SMC, CS1-D20
CS1-D20
The SMC Air cylinder is double acting single rod cylinder.
Large bore air cylinder of the square cover
Tie-rod type
$756.02
Rod Clevis , For Use With C55 Series, SMC, GKM12-24A
GKM12-24A
The SMC rod joint is a type of accessory designed for pneumatic cylinders.
Designed for round cylinders
$17.83

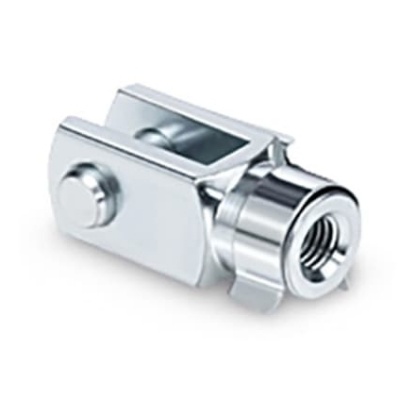

Rod Clevis , For Use With C95 Series, SMC, GKM35-54
GKM35-54
The SMC rod joint provides a smooth and precise adjustment of the air cushion valve, ensuring minimal piston rod deflection.
Light weight
ATEX compliant
$318.72

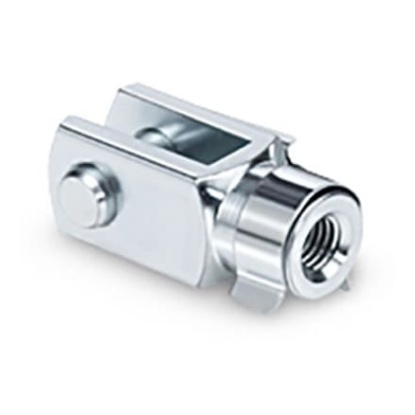

Rod Clevis , For Use With C96-C Series, CP96 Series, SMC, GKM30-54
GKM30-54
The SMC rod joint provides a smooth and precise adjustment of the air cushion valve, ensuring minimal piston rod deflection.
Light weight
ATEX compliant
$216.36

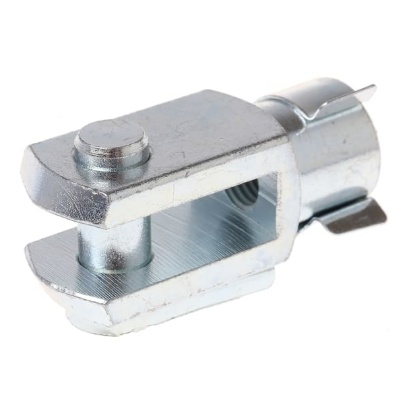

Rod Clevis , To Fit 32mm Bore Size, SMC, GKM10-20
GKM10-20
Mountings
SMC C85 pneumatic cylinder foot mounts, available singularly, with one locknut or as a pair. The foot mounts are suitable for use with C85 series single and double-acting C85 pneumatic cylinders.
C85 cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, incorporate double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. Installation is made easy through the use of large spanner flats and the space-saving design.
$14.51
