Pneumatic Cylinder & Actuator Accessories
Pneumatic cylinders and actuators often require various accessories to enhance their functionality, improve mounting options, and ensure precise control and long-term reliability. These accessories play a vital role in tailoring systems to specific applications.
Common Accessories
- Mounting Brackets: Used to securely install cylinders in different orientations (flange, foot, clevis, trunnion, etc.).
- Rod Clevises and Eye Brackets: Allow attachment to loads or mechanical linkages.
- Pivot Pins: Used with clevis or trunnion mounts to allow angular motion.
- Cushioning Devices: Absorb impact at the end of strokes to reduce wear and noise.
- Proximity Sensors: Detect piston position and send signals for automation or feedback control.
- Rod Boots and Bellows: Protect piston rods from dust, debris, and contaminants.
- Flow Control Valves: Regulate the speed of cylinder movement by controlling airflow.
- Magnetic Rings: Enable external sensing of piston position when paired with magnetic sensors.
Why Accessories Are Important
- Ensure correct alignment and secure installation
- Improve durability and reduce mechanical stress
- Enable integration into automated systems
- Enhance control and performance
Application Examples
- Mounting brackets used to attach a cylinder to a conveyor system
- Proximity sensors used for stroke-end detection in a packaging machine
- Rod boots used in dirty environments like food processing or mining

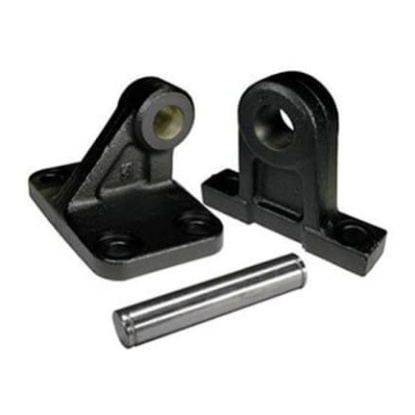

Mounting Bracket, SMC, CS1-D30
CS1-D30
The SMC double rear clevis, CS1/CS2 TIE ROD CYLINDER is a high-quality pneumatic automation product designed for industrial applications. With its large bore size and various mounting configurations, this cylinder offers reliable performance and durability. The CS1-D30 is ideal for applications requiring double acting, single rod, lube type cylinders with bore sizes ranging from 125mm to 300mm.
Ideal for large bore sizes up to 12inch
Available in bore sizes from 125mm to 300mm
Stroke lengths up to 2400mm available
Seven mounting styles available for versatile installation
Auto switch capable for automation
Double acting, single rod, lube type design for smooth operation
$1,873.25
Mounting Bracket, SMC, MXS-BT20
MXS-BT20
The SMC Retraction End applications that call for precise movement ranging from 10 to 150mm, typically require a cylinder and a precision guide. The MXS accomplishes this by integrating a cross roller bearing with a guide and two small air cylinders for compact force generation. The MXS is available in six sizes each with set stroke lengths and is standard with auto switch capability. Stroke adjustments are available for extend, retract, or both in ranges of 0 to 5mm, 0 to 15mm, and 0 to 25mm. In addition, there are many other standard options that include, shock absorbers, end lock, axial piping and buffer.
Air slide table
With or without stroke adjuster with or without shock
Variety of switches with a variety of wire lead lengths
$219.29

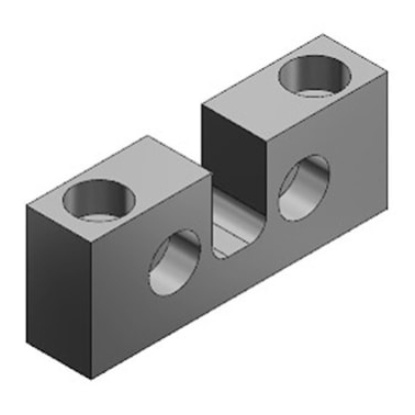

Mounting Bracket, SMC, MYAJ25
MYAJ25
The SMC Floating Bracket Facilitates connection to other guide systems.
Minimize the installation height
Minimize the installation width
$65.53

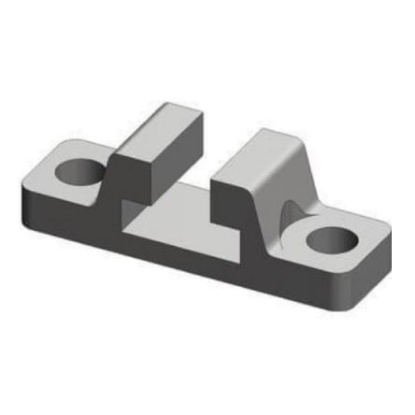

Mounting Equipment , SMC, YA-03
YA-03
The SMC LEY series is a electric rod type actuator. It is type A bracket.
Compact
Improved rigidity
$21.50

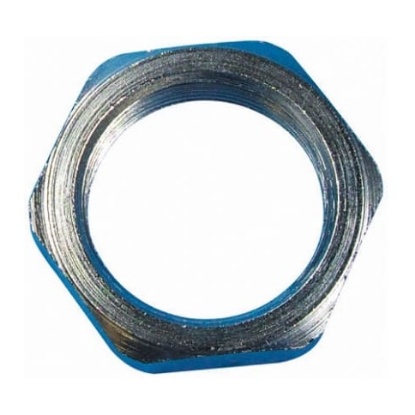

Nut , SMC, LZ-NT45
LZ-NT45
Accessories
Motor side nut used to secure motor side foot to cylinder
Rod side nut used to secure rod side foot to cylinder
Mounting band & switch holder to hold reed sensor in position
Suitable sensors are D-M9PL and D-M9NL in the pneumatics cylinder sensors, switches and mounting sections
SMC Electrical Actuators
$49.79

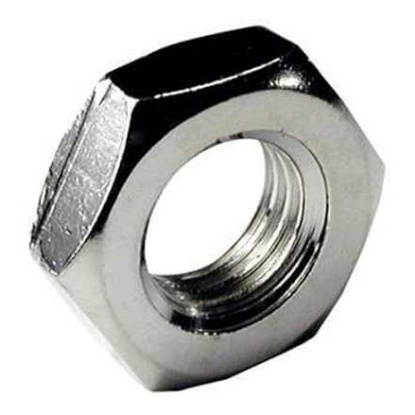

Nut , SMC, SN-032B
SN-032B
The SMC mounting nut with M26 x 1.5 threaded dimension.
Used with CM3 round body cylinder
$2.68

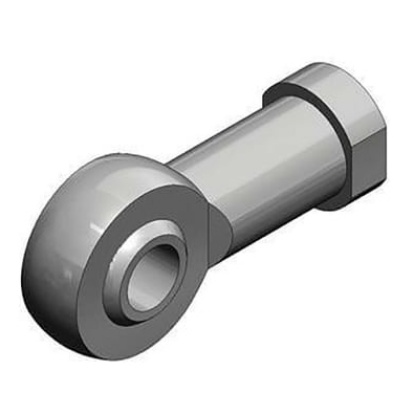

Piston Rod Ball Joint , For Use With C95/CP95 Series, To Fit 125mm Bore Size, SMC, KJ27D
KJ27D
Mounting accessory: piston rod ball joint
Applicable to bores: 32∼250mm
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
$173.61

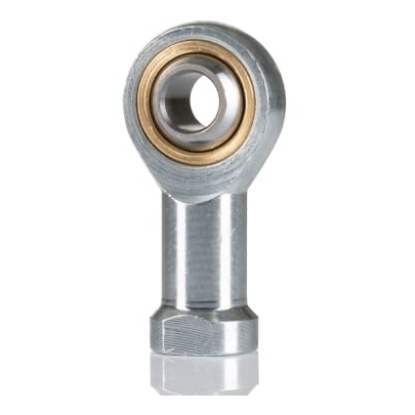

Piston Rod Ball Joint , SMC, KJ10D
KJ10D
Mountings
SMC C85 pneumatic cylinder foot mounts, available singularly, with one locknut or as a pair. The foot mounts are suitable for use with C85 series single and double-acting C85 pneumatic cylinders.
C85 cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, incorporate double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. Installation is made easy through the use of large spanner flats and the space-saving design.
$29.36

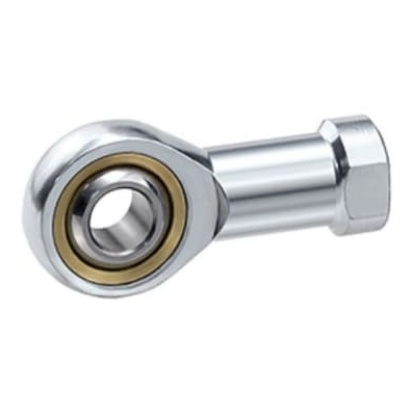

Piston Rod Ball Joint , SMC, KJ10DA
KJ10DA
The SMC rod end offers smooth rotation that can adjust the cantering automatically. It can be used as an auxiliary bracket for oscillating mechanism, and can be used in various applications, not limited to connecting to a cylinder.
19 degree allowable inclination angle
Reduces the design and assembly labour of the oscillating mechanism
$24.84
