Pneumatic Cylinder & Actuator Accessories
Pneumatic cylinders and actuators often require various accessories to enhance their functionality, improve mounting options, and ensure precise control and long-term reliability. These accessories play a vital role in tailoring systems to specific applications.
Common Accessories
- Mounting Brackets: Used to securely install cylinders in different orientations (flange, foot, clevis, trunnion, etc.).
- Rod Clevises and Eye Brackets: Allow attachment to loads or mechanical linkages.
- Pivot Pins: Used with clevis or trunnion mounts to allow angular motion.
- Cushioning Devices: Absorb impact at the end of strokes to reduce wear and noise.
- Proximity Sensors: Detect piston position and send signals for automation or feedback control.
- Rod Boots and Bellows: Protect piston rods from dust, debris, and contaminants.
- Flow Control Valves: Regulate the speed of cylinder movement by controlling airflow.
- Magnetic Rings: Enable external sensing of piston position when paired with magnetic sensors.
Why Accessories Are Important
- Ensure correct alignment and secure installation
- Improve durability and reduce mechanical stress
- Enable integration into automated systems
- Enhance control and performance
Application Examples
- Mounting brackets used to attach a cylinder to a conveyor system
- Proximity sensors used for stroke-end detection in a packaging machine
- Rod boots used in dirty environments like food processing or mining
Mounting Bracket , For Use With C(P)95 and C(P)96 Series, SMC, E5125
E5125
The SMC mounting brackets is light in weight and can be combined according to the operating conditions.
Compatible with CP95 and CP96 series cylinder
$339.21
Mounting Bracket , For Use With C(P)95 and C(P)96 Series, SMC, F5080
F5080
The SMC mounting brackets is light in weight and can be combined according to the operating conditions.
Compatible with CP95 and CP96 series cylinder
$132.18
Mounting Bracket , For Use With C(P)95 and C(P)96 Series, SMC, F5100
F5100
The SMC mounting brackets is light in weight and can be combined according to the operating conditions.
Compatible with CP95 and CP96 series cylinder
$192.10
Mounting Bracket , For Use With C(P)95 and C(P)96 Series, SMC, L5032
L5032
The SMC mounting brackets is light in weight and can be combined according to the operating conditions.
Compatible with CP95 and CP96 series cylinder
$25.70
Mounting Bracket , For Use With C(P)95 and C(P)96 Series, SMC, L5080
L5080
The SMC mounting brackets has 80 mm bore size.
M10 x 20L screw size
$53.05
Mounting Bracket , For Use With C(P)95C(P)96, SMC, F5063
F5063
The SMC mounting brackets for C(P)95 and C(P)96. Applicable bore size 32 to 125mm.
Applicable series: CP96, C96, C95, CP95
Type: clevis, flange and foot
Applicable bore sizes (mm): 32 to 125.
$93.39

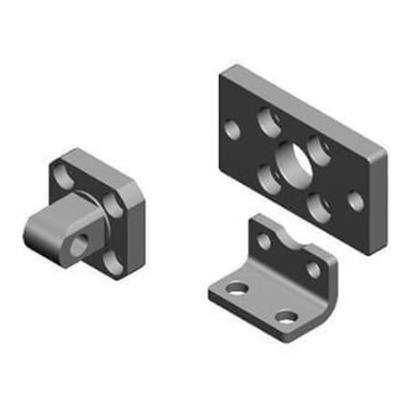

Mounting Bracket , For Use With C55 Series, SMC, C55-C032
C55-C032
The SMC mounting brackets for air operating cylinder.
Conforms to ISO standard
Auto switch capable
$43.70

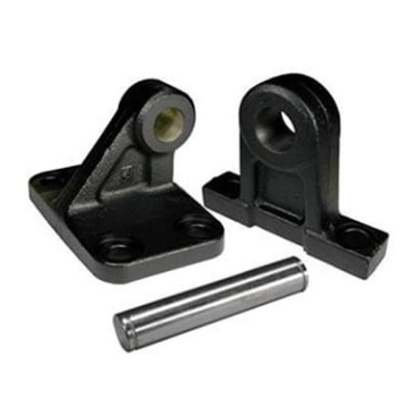

Mounting Bracket , For Use With C85 Series, SMC, C85L10B
C85L10B
The SMC mounting brackets for air operating cylinder.
Conforms to ISO standard
Auto switch capable
$8.76

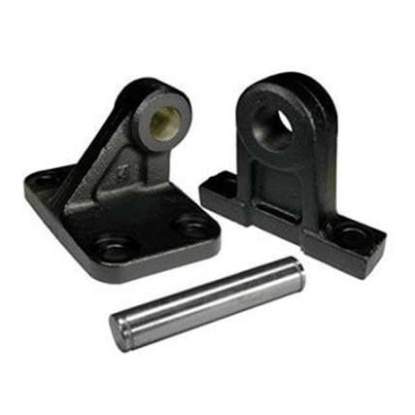

Mounting Bracket , For Use With C85 Series, SMC, C85L16A
C85L16A
The SMC mounting brackets for air operating cylinder.
Conforms to ISO standard
Auto switch capable
$5.12
Mounting Bracket , For Use With C95, C96, CP95, Series CP96, SMC, C5040(F)
C5040(F)
The SMC single clevis has 40 mm bore size.
–20 to 70 °C operating temperature
$42.78

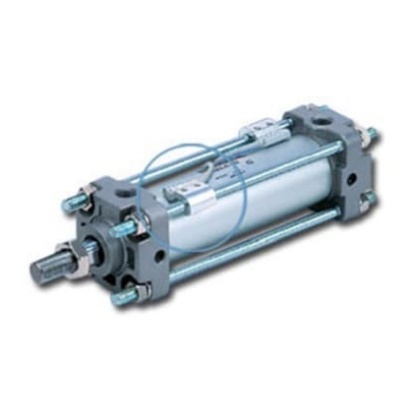

Mounting Bracket , For Use With C95, CDA2, CDA2H, CDA2Q, CDA2X, CDA2Y, CDBA2, CDLA, CDLS, CDNA, CDNS, CDS1,, SMC, BMB5-032
BMB5-032
The SMC Tie-rod mounting. Expanding the number of actuator series that accept compact auto switches. One auto switch for four different mounting types.
Tie-Rod Mounting, ø32
For CDA2, CDBA2, CDLA, CDNA, CL1, CDA2X, CDA2H, CDA2Q, CDA2Y, MDB, MDBB, MDNB, CDS1, CDNS, CDLS, CL1, C95
$10.20

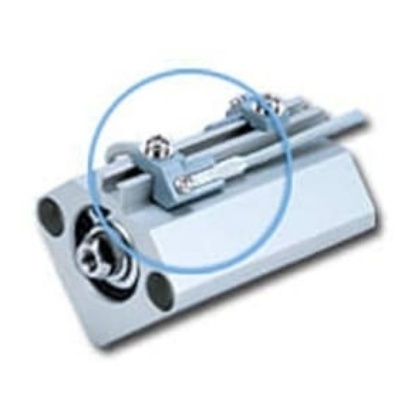

Mounting Bracket , For Use With CE1, CQ2, MK, MK2, RSQ Series, SMC, BQ-1
BQ-1
The SMC rail mount screw is a crucial component in various applications.
RoHS compliant
$2.34
