Pneumatic Cylinder & Actuator Accessories
Pneumatic cylinders and actuators often require various accessories to enhance their functionality, improve mounting options, and ensure precise control and long-term reliability. These accessories play a vital role in tailoring systems to specific applications.
Common Accessories
- Mounting Brackets: Used to securely install cylinders in different orientations (flange, foot, clevis, trunnion, etc.).
- Rod Clevises and Eye Brackets: Allow attachment to loads or mechanical linkages.
- Pivot Pins: Used with clevis or trunnion mounts to allow angular motion.
- Cushioning Devices: Absorb impact at the end of strokes to reduce wear and noise.
- Proximity Sensors: Detect piston position and send signals for automation or feedback control.
- Rod Boots and Bellows: Protect piston rods from dust, debris, and contaminants.
- Flow Control Valves: Regulate the speed of cylinder movement by controlling airflow.
- Magnetic Rings: Enable external sensing of piston position when paired with magnetic sensors.
Why Accessories Are Important
- Ensure correct alignment and secure installation
- Improve durability and reduce mechanical stress
- Enable integration into automated systems
- Enhance control and performance
Application Examples
- Mounting brackets used to attach a cylinder to a conveyor system
- Proximity sensors used for stroke-end detection in a packaging machine
- Rod boots used in dirty environments like food processing or mining
Joint , For Use With Compact Cylinders, SMC, JB20-5-080
JB20-5-080
The SMC compensation joint is designed for compact cylinders, offering high tensile stresses and compactness.
Centring is unnecessary
The installation time is dramatically reduced
$75.24

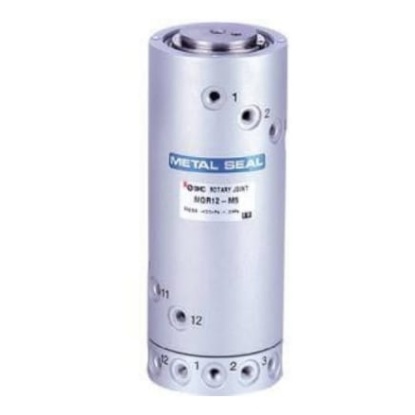

Joint , For Use With MQR, SMC, MQR12-M5
MQR12-M5
The SMC low torque metal seal type rotary joint has metal seal structure and bearing supported at both ends.
–10 to 80 degree C operating temperature
$5,868.41
Joint , For Use With MQR, SMC, MQRF2-M5
MQRF2-M5
The SMC low torque metal seal type rotary joint has metal seal structure and bearing supported at both ends.
–10 to 80 degree C operating temperature
$1,772.02

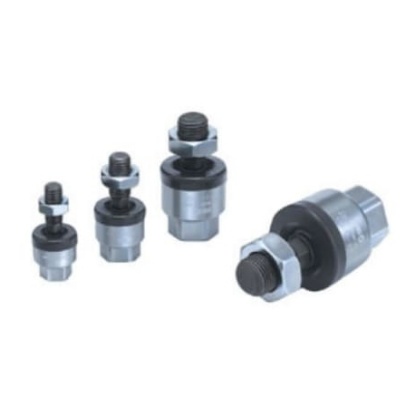

Joint , For Use With Pneumatic Cylinder, SMC, JC20-8-125
JC20-8-125
The SMC floating joint has 20 applicable cylinder bore size and M8 x 1.25 thread nominal size.
0.5 allowable eccentricity
$64.66

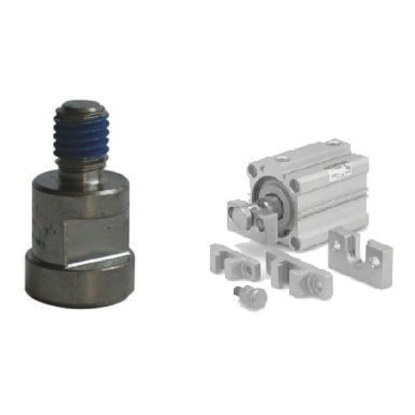

Joint , To Fit 50mm Bore Size, SMC, YU-05
YU-05
Mounting Accessories
Mounting accessories for the SMC CQ2 series compact pneumatic cylinders.
$11.60
Mounting Bracket , For Use With Air Cylinder, SMC, ES5100
ES5100
The SMC CP96 is standard type double acting air cylinder. The bumper cushion reduce the metal noise that occur when piston stop.
Light weight
$325.16
Mounting Bracket , For Use With Auto Switch C95 Series, SMC, BS5-160
BS5-160
The SMC tie rod assembly is a type of accessory designed for pneumatic cylinders.
RoHS compliant
$12.21
Mounting Bracket , For Use With Auto Switch Mounting Bracket, SMC, BA4-080
BA4-080
The SMC Auto switch guide is consolidate your auto switches and simplify your onsite inventory control.
Applicable auto switch, mounting bracket and Mounting band
$8.20

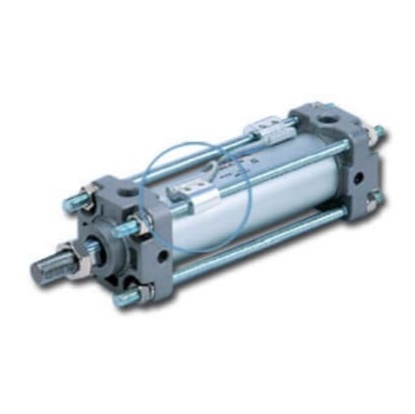

Mounting Bracket , For Use With Auto Switch Mounting Bracket, SMC, BA7-040
BA7-040
The SMC Auto switch guide is consolidate your auto switches and simplify your onsite inventory control.
Applicable auto switch, mounting bracket and Mounting band
$10.43

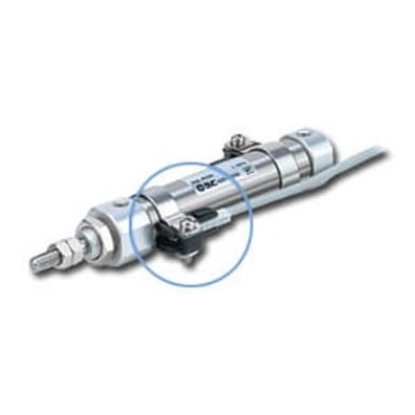

Mounting Bracket , For Use With Auto-Switch, SMC, BM5-025
BM5-025
The SMC detector support is a crucial component in various applications.
RoHS compliant
$21.76

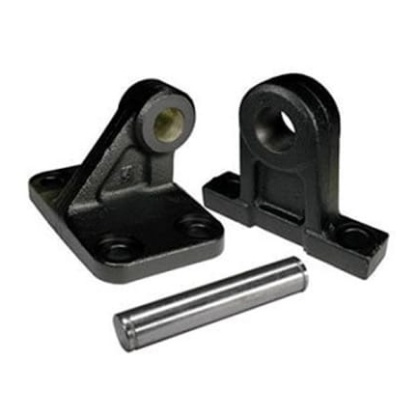

Mounting Bracket , For Use With C(P)95 and C(P)96 Series, SMC, C5040
C5040
The SMC mounting brackets is light in weight and can be combined according to the operating conditions.
Compatible with CP95 and CP96 series cylinder
$41.08
