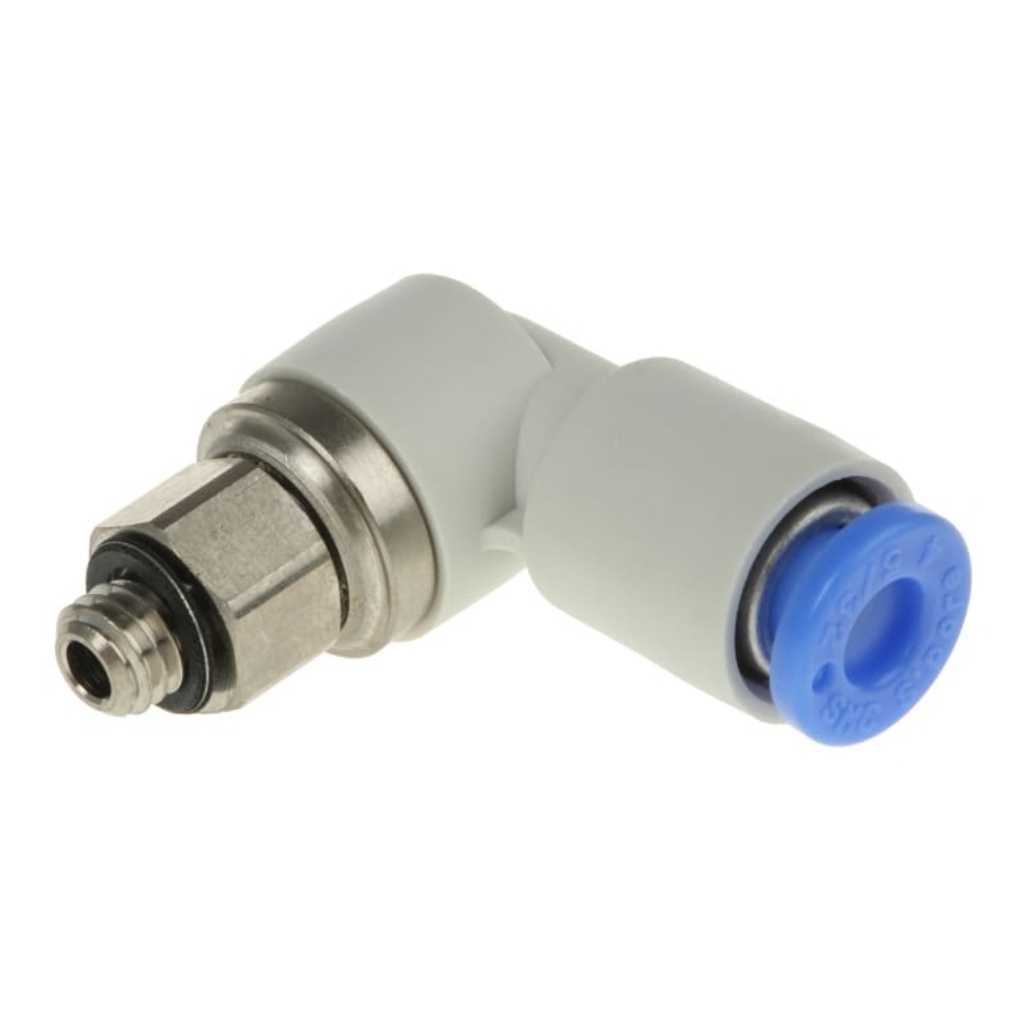

Picture of KSL Series Elbow Threaded Adaptor, M5 Male to Push In 4 mm, Threaded-to-Tube Connection Style, SMC, KSL04-M5

KSL Series Elbow Threaded Adaptor, M5 Male to Push In 4 mm, Threaded-to-Tube Connection Style, SMC, KSL04-M5

Rotary Adaptors - KS Series

The KS series from SMC are rotary one-touch fittings with a double ball race bearing for high speed applications. This series is suitable for vacuum or pressure applications, applicable to use for oscillating and rotating sections in robots.

Ball race bearing for oscillating or 360° rotating applications
One-touch collet includes anti tube-rotation mechanism
Maximum rotational speed 500rpm (4/6mm), 400rpm (8mm)
Low torque rotation style
Copper-free specifications
Electro less nickel plated stud

Thread-to-Tube Adaptors
Manufacturer: SMC
SKU: KSL04-M5
$35.37
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Connector AM5 Male
Connector BPush In 4 mm
Pneumatic Fitting TypeElbow Threaded Adaptor
Connection StyleThreaded-to-Tube
Threaded ConnectionM5 Male
Manufacturer SeriesKSL
Thread MaterialNickel Plated Brass
Maximum Operating Temperature+60°C
Body MaterialPBT
Angle90°
Minimum Operating Temperature-5°C
Swivel ConnectionNo
Maximum Operating Pressure1 MPa
