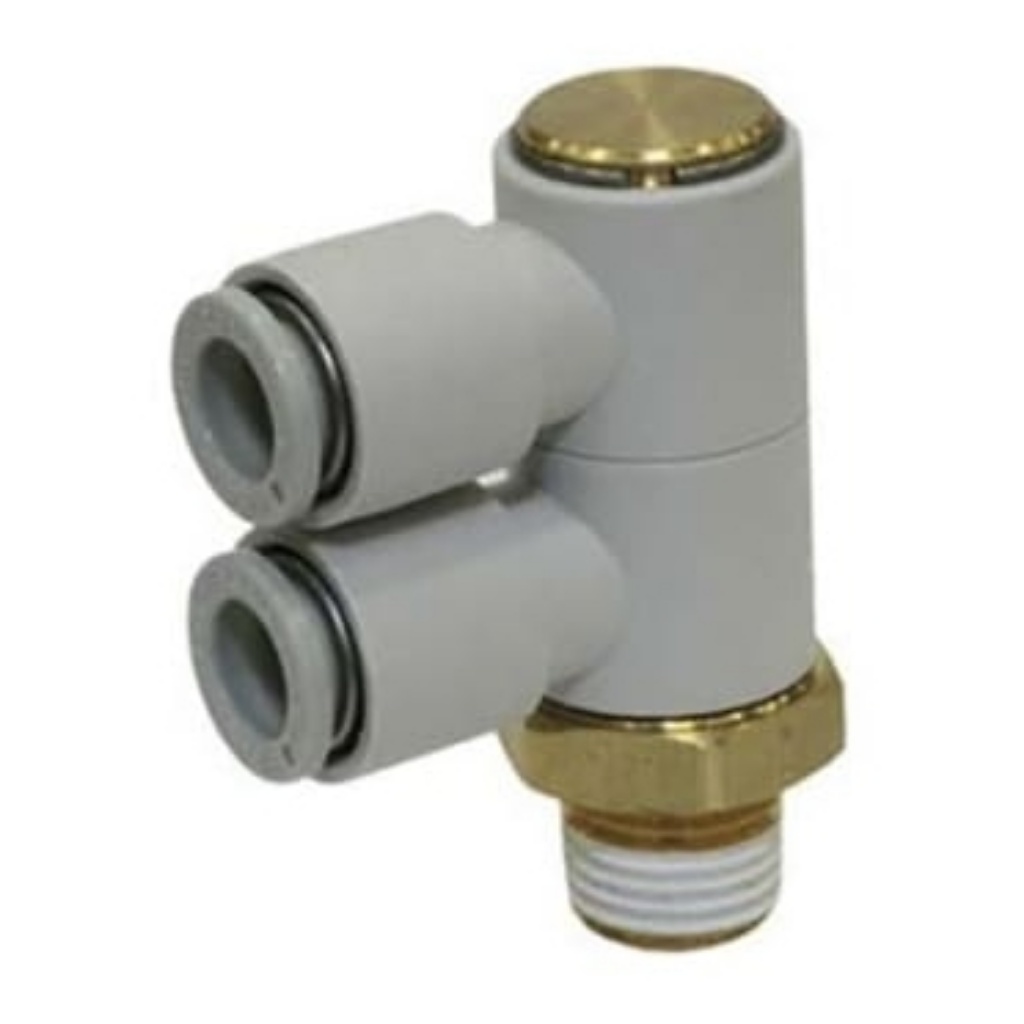

Picture of KQ2 Series Elbow Threaded Adaptor, R 1/4 Male to Push In 12 mm, Threaded-to-Tube Connection Style, SMC, KQ2VD12-02AS

KQ2 Series Elbow Threaded Adaptor, R 1/4 Male to Push In 12 mm, Threaded-to-Tube Connection Style, SMC, KQ2VD12-02AS

Double Universal Male Elbow, KQ2VD

One-touch fitting
Double universal male elbow
Used for branch piping at right angles from the female thread
Two individual parts rotate 360°
Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0 MPa
Copper free

Thread-to-Tube Adaptors
Manufacturer: SMC
SKU: KQ2VD12-02AS
$159.76
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Connector AR 1/4 Male
Connector BPush In 12 mm
Pneumatic Fitting TypeElbow Threaded Adaptor
Connection StyleThreaded-to-Tube
Threaded ConnectionR 1/4 Male
Manufacturer SeriesKQ2
Thread MaterialBrass
Maximum Operating Pressure1 MPa, 3 (Proof) MPa
Swivel ConnectionNo
Maximum Operating Temperature+60°C
Minimum Operating Temperature-5°C
Body MaterialPBT
Standards MetIEC 60204-1, ISO 10218-1, ISO 4413, ISO 4414, RoHS Compliant
