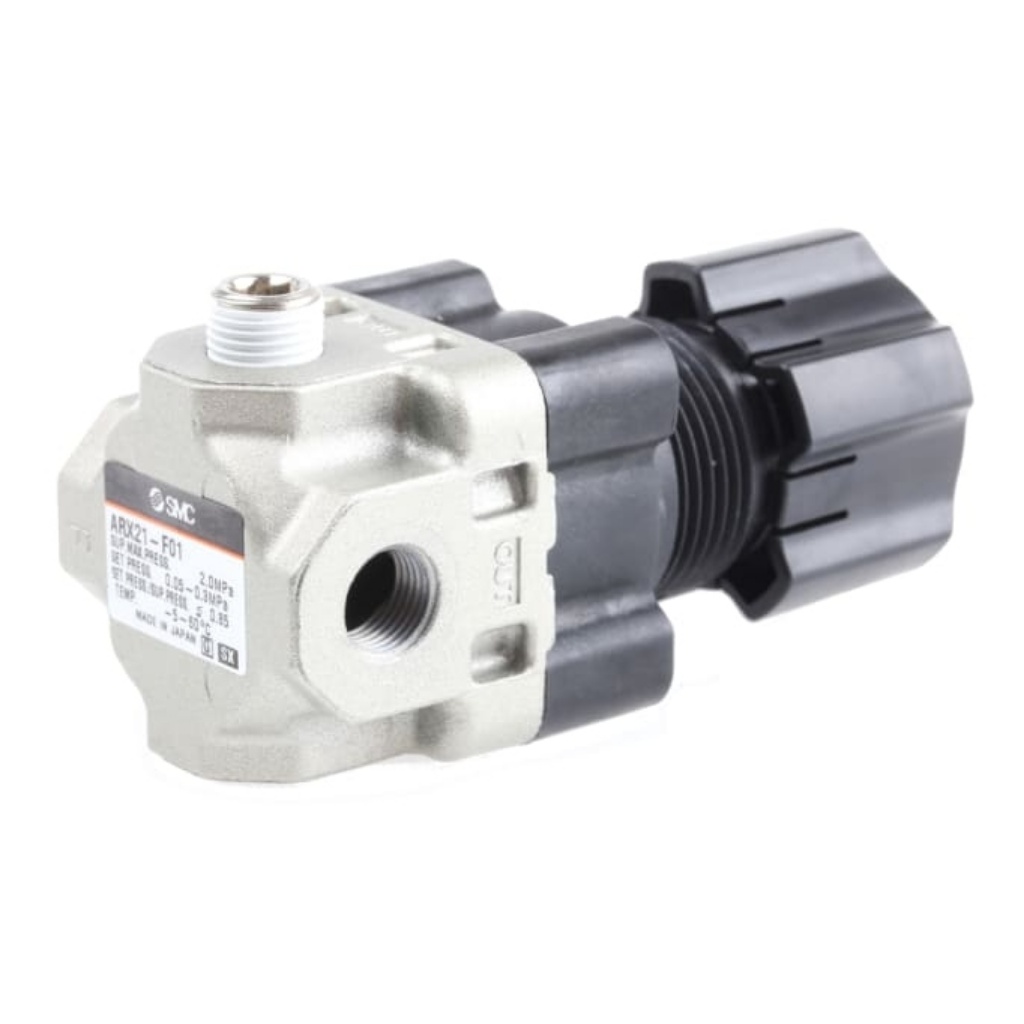

Picture of G 1/8 Pneumatic Regulator - 0.05MPa to 0.3MPa, 1/8in, 2MPa max. input, SMC, ARX21-F01
Picture of G 1/8 Pneumatic Regulator - 0.05MPa to 0.3MPa, 1/8in, 2MPa max. input, SMC, ARX21-F01
Picture of G 1/8 Pneumatic Regulator - 0.05MPa to 0.3MPa, 1/8in, 2MPa max. input, SMC, ARX21-F01

G 1/8 Pneumatic Regulator - 0.05MPa to 0.3MPa, 1/8in, 2MPa max. input, SMC, ARX21-F01

ARX 20 pressure regulators

ARX series piston type regulators are compatible with a primary supply pressure of 2.0MPa and ideal for pressure adjustment of air blowing applications. Compact in design with easy-to-operate adjustment handle.

Piston regulators featuring a wide range of output pressures.
Black stamped steel housing.
Brass cover and polycarbonate connector.
Pressure gauge and mounting bracket can be ordered separately.
Manufacturer: SMC
SKU: ARX21-F01
$47.25
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Port ConnectionG 1/8
Maximum Outlet Pressure0.3MPa
Minimum Outlet Pressure0.05MPa
Maximum Input Pressure2MPa
Manufacturer SeriesARX20
Pressure Gauge Port SizeRc 1/8
Port Connection Thread Size1/8 in
Pressure Gauge Port Thread Size1/8 in
Maximum Flow Rate60L/min
Integral Check ValveWithout Check Valve
Port Connection Thread StandardG
Minimum Operating Temperature-5°C
Maximum Operating Temperature+60°C
Pressure Gauge Port Thread StandardRc
