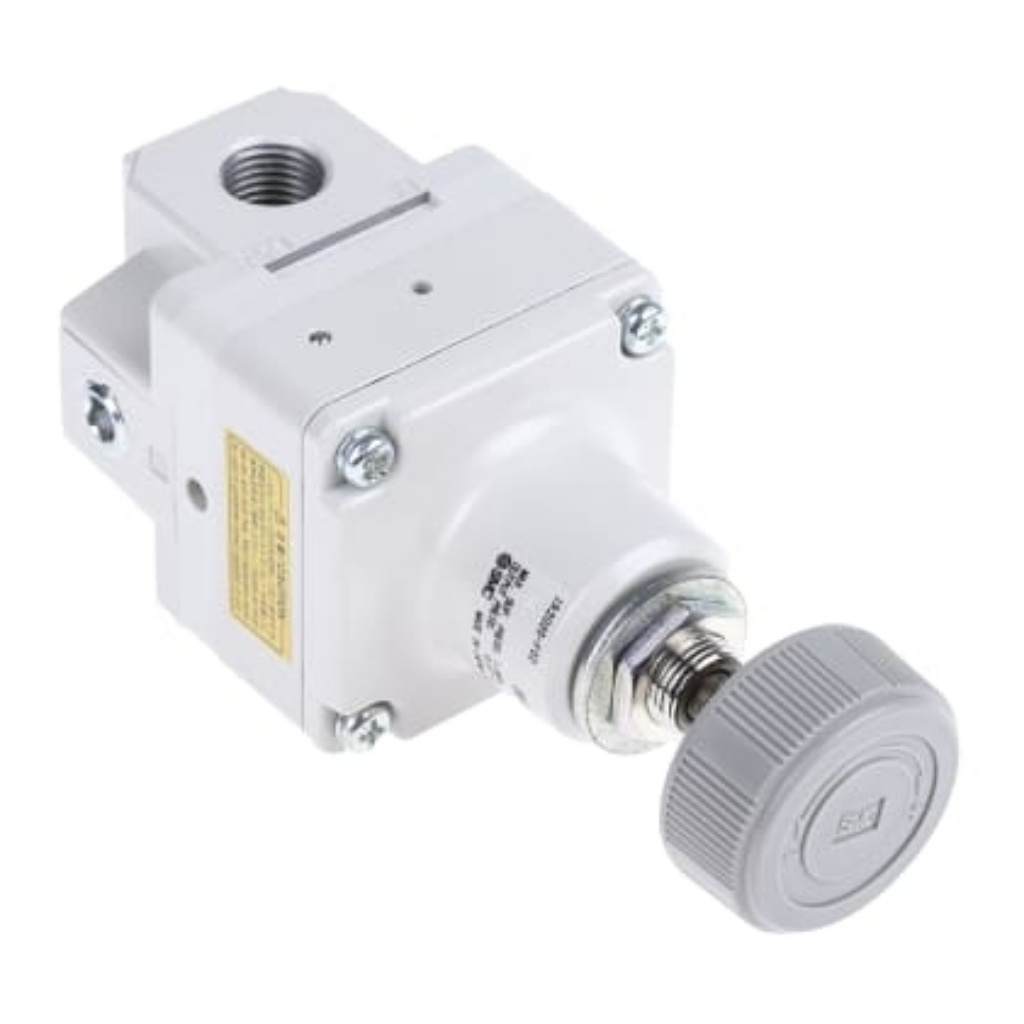

Picture of G 1/4 Pneumatic Regulator - 0.01MPa to 0.8MPa, 1/4in, 1MPa max. input, SMC, IR2020-F02
Picture of G 1/4 Pneumatic Regulator - 0.01MPa to 0.8MPa, 1/4in, 1MPa max. input, SMC, IR2020-F02
Picture of G 1/4 Pneumatic Regulator - 0.01MPa to 0.8MPa, 1/4in, 1MPa max. input, SMC, IR2020-F02
Picture of G 1/4 Pneumatic Regulator - 0.01MPa to 0.8MPa, 1/4in, 1MPa max. input, SMC, IR2020-F02

G 1/4 Pneumatic Regulator - 0.01MPa to 0.8MPa, 1/4in, 1MPa max. input, SMC, IR2020-F02

IR series 1/4"

High adjustment accuracy.
Large decompression capacity for very stable performance.
Use independently or integrated into an SMC FRL module (2000 series).
Supplied with mounting bracket:
Dry air must be filtered at 0.3 μm (moisture separator).
Manufacturer: SMC
SKU: IR2020-F02
$315.36
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Port ConnectionG 1/4
Maximum Outlet Pressure0.8MPa
Minimum Outlet Pressure0.01MPa
Maximum Input Pressure1MPa
Manufacturer SeriesIR2000
Pressure Gauge Port SizeG 1/8
Port Connection Thread Size1/4 in
Pressure Gauge Port Thread Size1/8 in
Maximum Flow Rate3.5L/min
Integral Check ValveWithout Check Valve
Port Connection Thread StandardG
Minimum Operating Temperature-5°C
Maximum Operating Temperature+60°C
Pressure Gauge Port Thread StandardG
