Vacuum Switches

Vacuum switches are either electronic or mechanical devices used in pneumatic systems to control the flow of pressure or vacuum between locations, helping to maintain system stability. These switches are widely employed for pressure regulation and safety interlock functions, ensuring optimal operating conditions are preserved.

By regulating vacuum flow between two areas, vacuum switches guarantee that the necessary vacuum is maintained where required. They operate under various pressure types, including negative, electro-mechanical, relative, or compound pressure. The specific operating conditions of your system will guide the selection of the appropriate switch.

Vacuum pressure switches are designed to detect changes in vacuum pressure. A preset threshold is established, and once this level is reached or exceeded, the switch will either open or close its electrical circuit.

Types of pressure and vacuum switches

These switches function under different pressure categories, such as negative pressure, electro-mechanical pressure, relative pressure, and compound pressure. The operating environment influences the type selected. Additionally, they vary in connection types, pressure range limits, and voltage drop specifications.

Digital hydraulic pressure switches are sensors that respond to fluid pressure changes. They activate or deactivate electrical contacts when preset fluid pressure values are reached, responding to either increasing or decreasing pressures.

What are digital hydraulic pressure switches used for?

Digital hydraulic pressure switches serve as automatic monitoring devices in systems with pressurized fluids. They are commonly used in manufacturing to provide feedback on pressure spikes or drops. In mobile industrial equipment, these switches display oil pressure numerically and trigger alarms if engine pressure falls outside safe limits.

Applications:

Vacuum switches are utilized across various industrial settings, playing a critical role in monitoring and control within hydraulic and processing industries. These switches detect vacuum changes and open or close electrical circuits once preset points are reached, ensuring reliable system operation.

View as Grid List

Sort by

Display per page

Pressure Switch, G 1/2 0.1MPa to 0.7 MPa, SMC, IS10E-40F04-6L-A

IS10E-40F04-6L-A

For connecting to modular type FRL units 100V AC/DC specifications Service life: 5 million cycles

$236.07

Pressure Switch, G 1/2 0.1MPa to 6 bar, SMC, IS10E-30-F04-6L-D

IS10E-30-F04-6L-D

The SMC makes this IS10 series of compact, integrated pressure switch can be easily installed to facilitate the pressure detection of the line. It is applicable for use with AC30 series. It comes with 3 meter long lead wire. The operating voltage of 100 V AC/DC or less. The max. operating current for 24 V AC/DC or less is 50 mA, for 48 V AC/DC or less is 40 mA and for 100 V AC/DC or less is 20 mA. The set pressure range is from 0.1 to 0.6 MPa The port size is 1/2 inch

$219.96

Pressure Switch, G 1/2 1bar to 6 bar, SMC, IS10E-40-F04-6L-D

IS10E-40-F04-6L-D

The SMC pressure switch with piping adapter is a compact and integrated pressure switch that can be easily installed to facilitate the pressure detection of the line. It has a modular design with uniform body style and offers better visibility and environmental resistance. Lead wire length is 3m Mounting position is right Operating voltage is 100 V or less

$222.87

Pressure Switch, G 1/4 0.1MPa to 6 bar, SMC, IS10E-40-F02-6L-D

IS10E-40-F02-6L-D

The SMC makes this IS10 series of compact, integrated pressure switch can be easily installed to facilitate the pressure detection of the line. It is applicable for use with AC40 series. It comes with 3 meter long lead wire. The operating voltage of 100 V AC/DC or less. The max. operating current for 24 V AC/DC or less is 50 mA, for 48 V AC/DC or less is 40 mA and for 100 V AC/DC or less is 20 mA. The set pressure range is from 0.1 to 0.6 MPa The port size is 1/2 inch

$222.87

Pressure Switch, G 1/4 1bar to 6 bar, SMC, IS10E-20-F02-6L-D

IS10E-20-F02-6L-D

$223.12

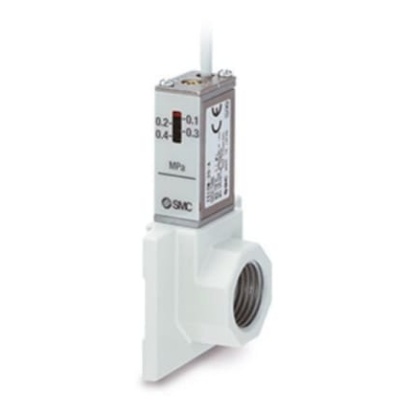

Pressure Switch, G 3/4 0.1MPa to 6 bar, SMC, IS10E-40-F06-6L-D

IS10E-40-F06-6L-D

$222.87

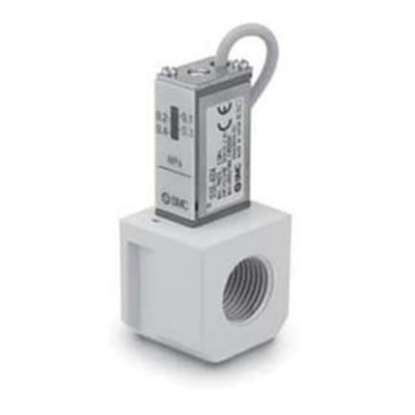

Pressure Switch, G 3/8 0.1MPa to 0.7 MPa, SMC, IS10E-30F03-6L-A

IS10E-30F03-6L-A

For connecting to modular type FRL units 100V AC/DC specifications Service life: 5 million cycles

$252.90

Pressure Switch, G 3/8 0.1MPa to 6 bar, SMC, IS10E-40-F03-6L-D

IS10E-40-F03-6L-D

$222.87

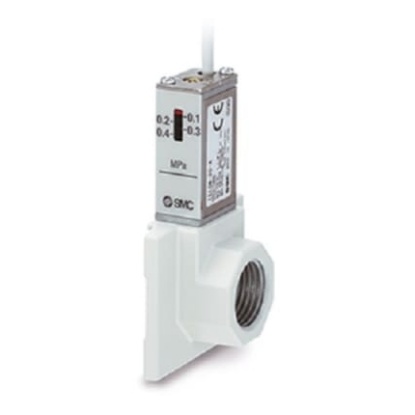

Pressure Switch, G 3/8 1bar to 6 bar, SMC, IS10E-30-F03-6L-D

IS10E-30-F03-6L-D

$219.96

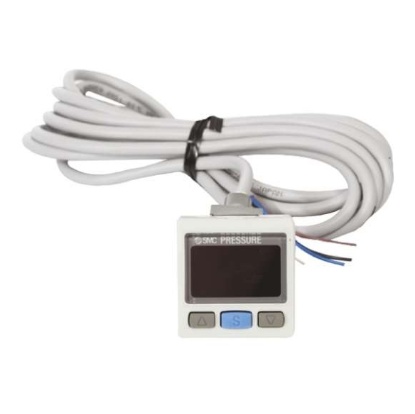

Pressure Switch, R 1/8 -0.100MPa to 1 MPa, SMC, ISE30A-01-C-G

ISE30A-01-C-G

ISE30A Digital Pressure Switches 2-Colour display for easy monitoring Set up to 10 slave units from one master, up to a distance of 4m 4 digit display for easy reading Uses easy to replace one-touch fittings Secret code set function Power saving function Resolution switch function to reduce flicker Standards CE, RoHS, UL, CSA Standards CE,UL,CSA,RoHS

$181.18

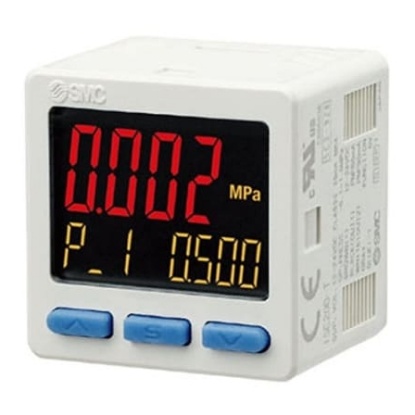

Pressure Switch, R 1/8 -1bar to 10bar, SMC, ISE20B-L-01

ISE20B-L-01

$263.33

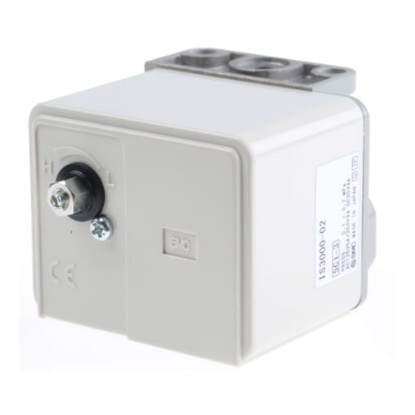

Pressure Switch, Rc 1/4 0.8 MPa, SMC, IS3000-02

IS3000-02

G1/4 Adjustable Pressure Switch 1.0 MPa Maximum Proof Pressure +/- 20 kPa Repetition Accuracy High frequency operation Long life Simple pressure setting Compact body size Warning Compressed air, while generally considered a safe source of energy, must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended. Pressure Switches Warning Compressed air whilst generally considered a safe source of energy must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.

$202.86
