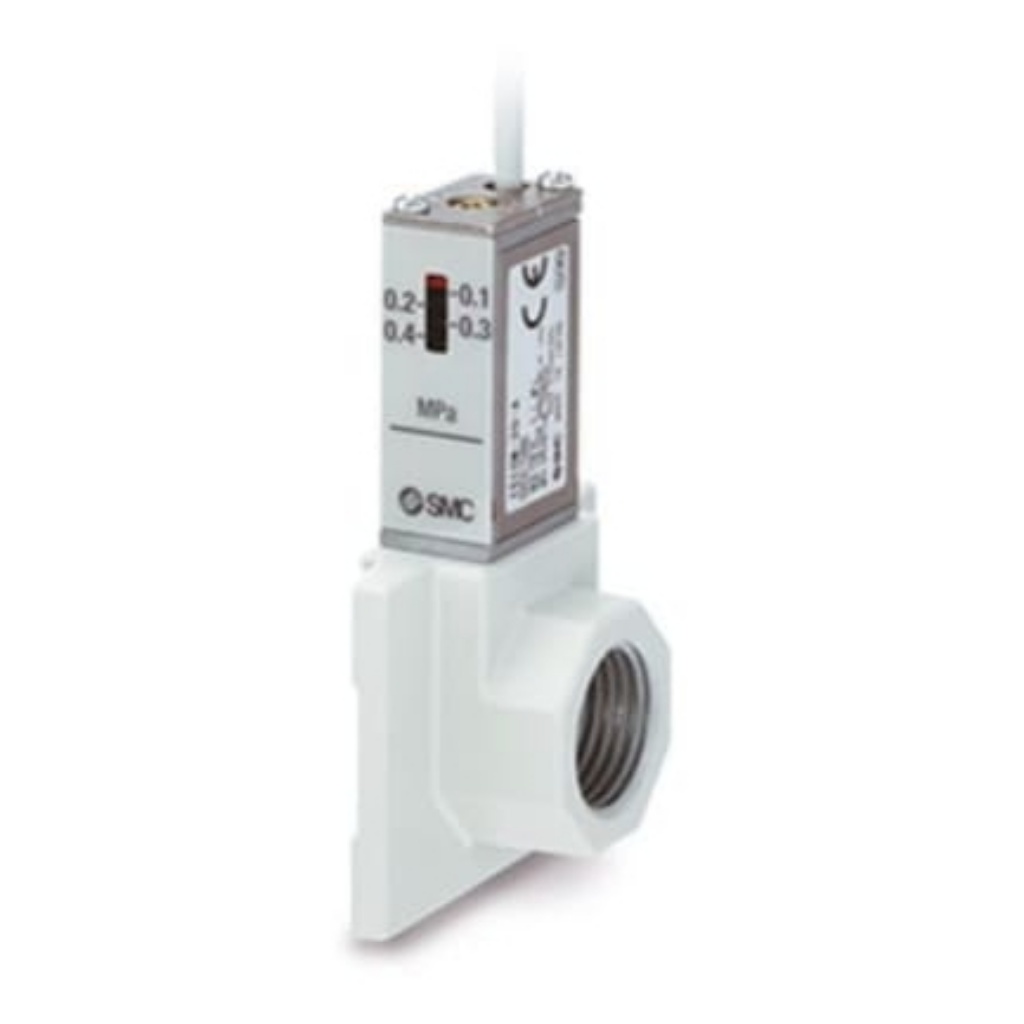

Picture of Pressure Switch, G 3/8 0.1MPa to 6 bar, SMC, IS10E-40-F03-6L-D

Pressure Switch, G 3/8 0.1MPa to 6 bar, SMC, IS10E-40-F03-6L-D

The SMC makes this IS10 series of compact, integrated pressure switch can be easily installed to facilitate the pressure detection of the line. It is applicable for use with AC40 series. It comes with 3 meter long lead wire. The operating voltage of 100 V AC/DC or less. The max. operating current for 24 V AC/DC or less is 50 mA, for 48 V AC/DC or less is 40 mA and for 100 V AC/DC or less is 20 mA.

The set pressure range is from 0.1 to 0.6 MPa
The port size is 3/8 inch
Manufacturer: SMC
SKU: IS10E-40-F03-6L-D
$222.87
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Maximum Operating Pressure6 bar
Minimum Operating Pressure0.1MPa
Pressure TypePositive Pressure
ConnectionG 3/8
Suitable MediaAir
