Pneumatic Regulators

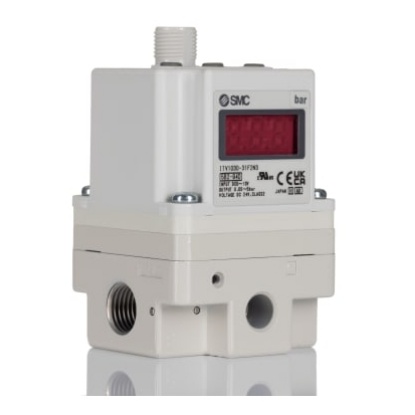

The SMC electro pneumatic regulator is use for step less control of air pressure in proportion to electrical signal. It has two type of cable connector. Compact and light weight High stability Built-in One-touch fitting

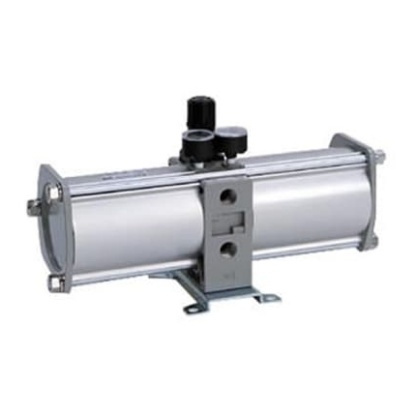

VBA Series Pneumatic Pressure Booster/Regulator Protects downstream equipment from pressure fluctuations and can increase the power of an existing actuator Relieving pressure regulating method All ports have tapered threads Note Install with piston horizontal.

The SMC AR-D series of modular pressure regulators are designed for use with AC40-D series of FRLs. This regulator comes without a backflow function, and it has G type pipe threads. The port size of this regulator is 1/2 in and it has a square embedded type pressure gauge (with limit indicator). Set pressure for this regulator is 0.02 to 0.2 MPa Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side

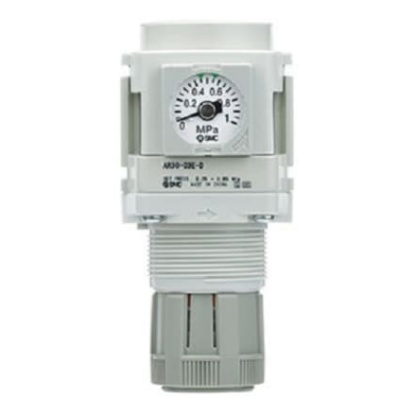

The SMC AR-D series of modular pressure regulators are designed for use with AC40-D series of FRLs. This regulator comes without a backflow function, and it has G type pipe threads. The port size of this regulator is 1/2 in and it has a round type pressure gauge (with limit indicator). Set pressure for this regulator is 0.02 to 0.2 MPa Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side

The SMC AR-D series of modular pressure regulators are designed for use with AC40-D series of FRLs. This regulator comes without a backflow function, and it has G type pipe threads. The port size of this regulator is 1/2 in and it has a round type pressure gauge (with limit indicator). Set pressure for this regulator is 0.05 to 0.85 MPa Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side

The SMC AR-D series of modular pressure regulators are designed for use with AC40-D series of FRLs. This regulator comes with a backflow function, and it has G type pipe threads. The port size of this regulator is 1/2 in and it has a square embedded type pressure gauge (with limit indicator). Set pressure for this regulator is 0.05 to 0.85 MPa Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side

The SMC AR-D series of modular pressure regulators are designed for use with AC40-D series of FRLs. This regulator comes with a backflow function, and it has G type pipe threads. The port size of this regulator is 1/2 in and it has a round type pressure gauge (with limit indicator). Set pressure for this regulator is 0.05 to 0.85 MPa Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side

The SMC air regulator has a square embedded type pressure gauge with the air flow direction from left to right. The regulator does not have back flow function and has a relieving type of exhaust mechanism. Maximum flow rate up to 5000 litre per minute Weight is 0.48 kg Has a downward knob Easy to handle

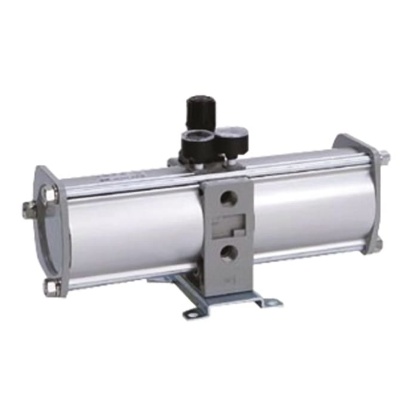

The SMC specialty regulator series VBA is a booster regulator that saves money and energy by increasing the main line pressure up to two times. The booster regulator, when connected to air supply line, increases pressure up to two times and the main air s Easy adjustment of output pressure Improved performance over previous designs

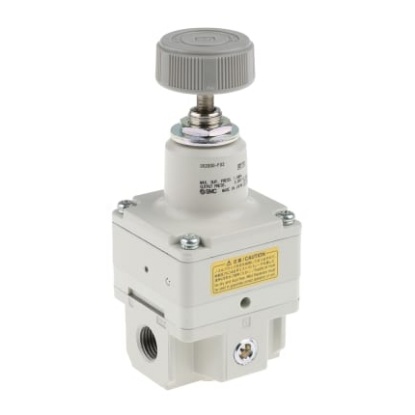

Precision IR Series Air requirements; Dry, filtered to 0.3μm Precise setting accuracy ±0.2% of full span Repeatability ±0.5% of full span Temperature range -5°C to +60°C High relief flow capacity for high balance performance Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series) Weight 300g Available with / without mounting brackets Note See separate product range for mounting brackets and accessories Caution (Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline

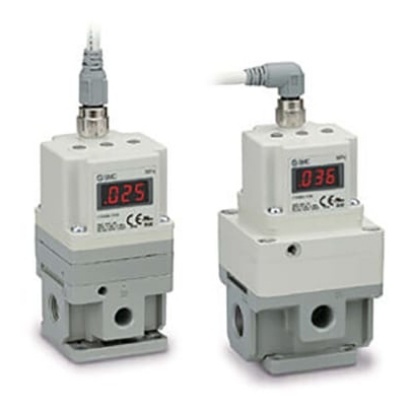

Controls air pressure in proportion to an electric signal. Available in MPa, kgf/cm², bar, PSI, and kPa units. Pressure range of 0.005 to 0.9MPa. Available port sizes 1/4 and 1/8. Mounting bracket option

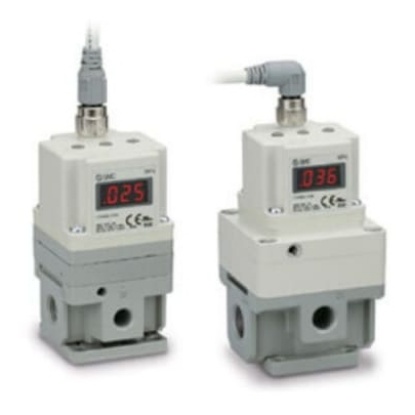

Controls air pressure in proportion to an electric signal. Available in MPa, kgf/cm², bar, PSI, and kPa units. Pressure range of 0.005 to 0.9MPa. Available port sizes 1/4 and 1/8. Mounting bracket option
