Pneumatic Regulators

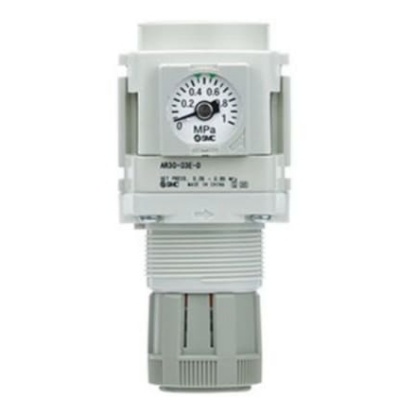

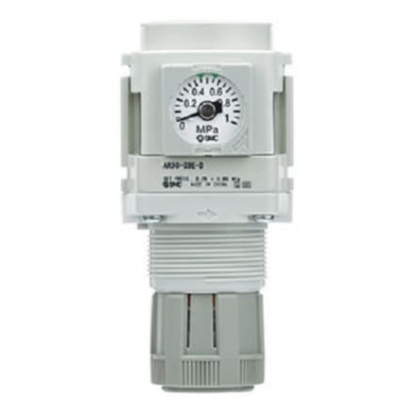

The SMC AR-D series of modular pressure regulators are designed for use with AC60-D series of FRLs. This regulator comes with a backflow function, and it has G type pipe threads. The port size of this regulator is 1 in and it has a square embedded type pressure gauge (with limit indicator). Set pressure for this regulator is 0.05 to 0.85 MPa Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side

The SMC AR-D series of modular pressure regulators are designed for use with AC60-D series of FRLs. This regulator comes with a backflow function, and it has G type pipe threads. The port size of this regulator is 1 in and it has a round type pressure gauge (with limit indicator). Set pressure for this regulator is 0.05 to 0.85 MPa Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side

The SMC air regulator has a square embedded type pressure gauge with the air flow direction from left to right. The regulator does not have back flow function and has a relieving type of exhaust mechanism. Maximum flow rate up to 5000 litre per minute Weight is 1.25 kg Has a downward knob Easy to handle

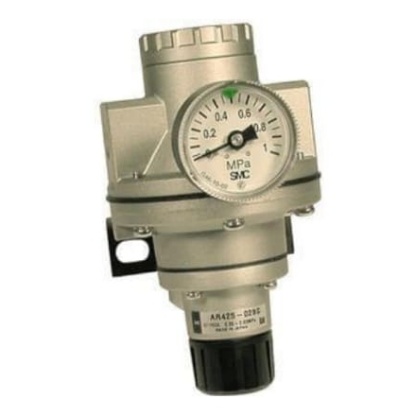

The SMC regulator is internal pilot relieving style regulator. It has optional bracket and pressure gauge. The regulator verify the pressure that is indicated on the primary and the secondary pressure gauges. Port sizes ranging from 1/4 to 2

The SMC regulator is internal pilot relieving style regulator. It has optional bracket and pressure gauge. The regulator verify the pressure that is indicated on the primary and the secondary pressure gauges. Port sizes ranging from 1/4 to 2

Precision IR Series Air requirements; Dry, filtered to 0.3μm Precise setting accuracy ±0.2% of full span Repeatability ±0.5% of full span Temperature range -5°C to +60°C High relief flow capacity for high balance performance Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series) Weight 300g Available with / without mounting brackets Note See separate product range for mounting brackets and accessories Caution (Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline

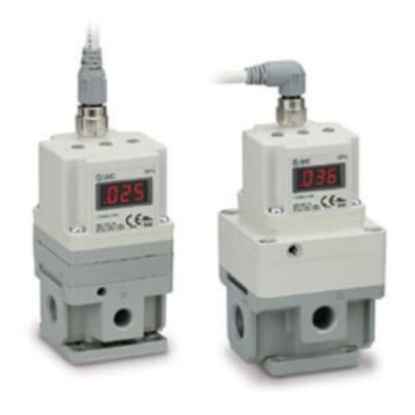

Controls air pressure in proportion to an electric signal. Available in MPa, kgf/cm², bar, PSI, and kPa units. Pressure range of 0.005 to 0.9MPa. Available port sizes 1/4 and 1/8. Mounting bracket option

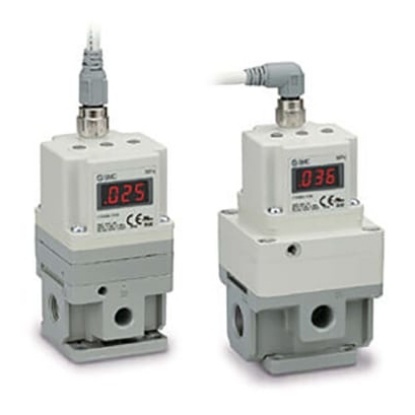

The SMC electro pneumatic regulator is use for step less control of air pressure in proportion to electrical signal. It has two type of cable connector. Compact and light weight High stability Built-in One-touch fitting

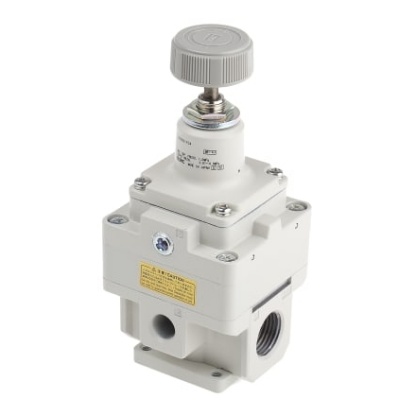

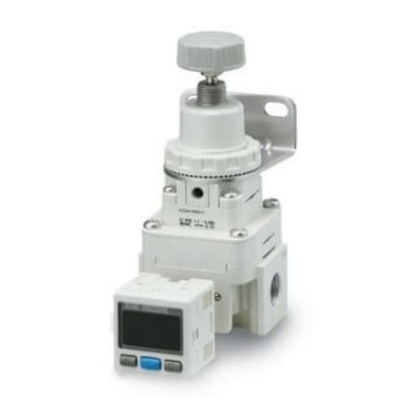

The SMC IR3000 series precision regulator are designed to be compact and light weight. The maximum set pressure has been expanded from the conventional 0.01 MPa to 0.8 MPa. The optional bracket and pressure gauge can be mounted on either the front or back of the unit. Sensitivity 0.2 % Repeatability ±0.5 % Reduction in air consumption

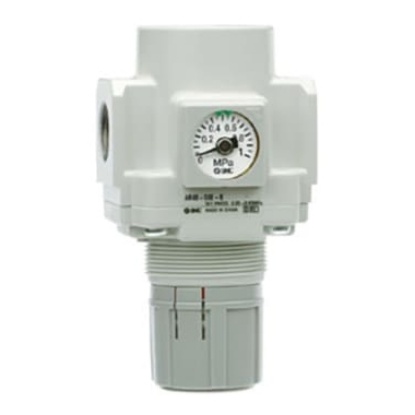

SMC Air Regulator AR20-B - AR40-B SMC’s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted. Note An integral Pressure Gauge is shown on the picture for reference only. It is not supplied as a part of the set and has to be bought separately.

SMC Air Regulator AR20-B - AR40-B SMC’s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted. Note An integral Pressure Gauge is shown on the picture for reference only. It is not supplied as a part of the set and has to be bought separately.

SMC Air Regulator AR20-B - AR40-B SMC’s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted. Note An integral Pressure Gauge is shown on the picture for reference only. It is not supplied as a part of the set and has to be bought separately.
