Pneumatic Regulators

The SMC air regulator has a square embedded type pressure gauge with the air flow direction from left to right. The regulator does not have back flow function and has a relieving type of exhaust mechanism. Maximum flow rate up to 5000 litre per minute Weight is 1.13 kg Has a downward knob Easy to handle

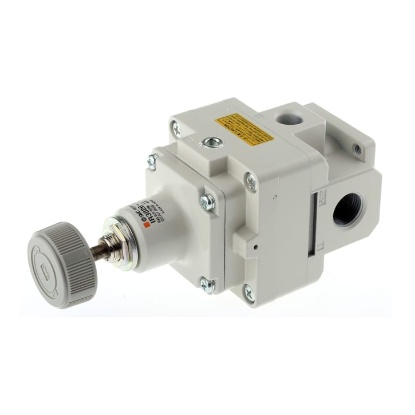

Precision IR Series Air requirements; Dry, filtered to 0.3μm Precise setting accuracy ±0.2% of full span Repeatability ±0.5% of full span Temperature range -5°C to +60°C High relief flow capacity for high balance performance Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series) Weight 300g Available with / without mounting brackets Note See separate product range for mounting brackets and accessories Caution (Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline

The SMC electro-pneumatic and electronic vacuum regulators is designed with a lightweight, easy-to-read LED display, control air or vacuum pressure steplessly in proportion to an electric signal. Controls air pressure in proportion to an electric signal RoHS compliant

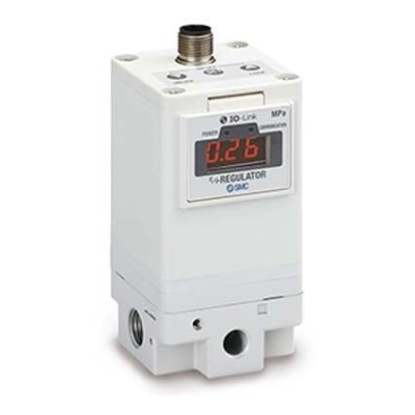

Controls air pressure in proportion to an electric signal. Available in MPa, kgf/cm², bar, PSI, and kPa units. Pressure range of 0.005 to 0.9MPa. Available port sizes 1/4 and 1/8. Mounting bracket option

The SMC electro pneumatic regulator is use for step less control of air pressure in proportion to electrical signal. It has two type of cable connector. Compact and light weight High stability Built-in One-touch fitting

The SMC electro pneumatic regulator is use for step less control of air pressure in proportion to electrical signal. It has two type of cable connector. Compact and light weight High stability Built-in One-touch fitting

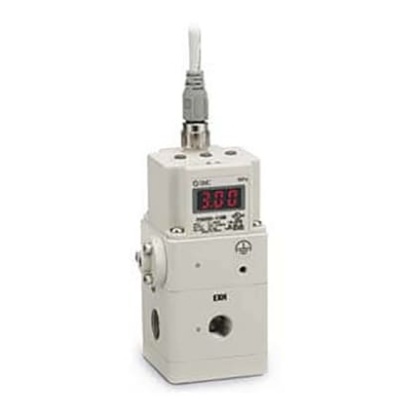

Maximum supply pressure 5.0 MPa. Set pressure range 0.01 to 3.0 MPa. Suitable to assist gases other than air: Argon, Oxygen and Nitrogen. Low power consumption, with a maximum consumption of 3 W. Compact and lightweight

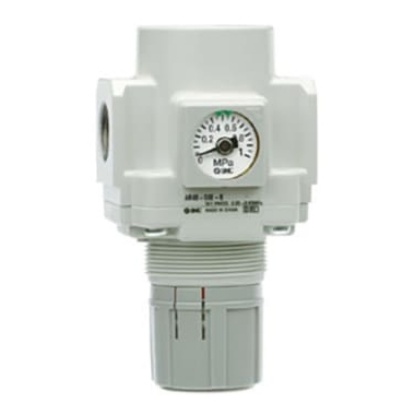

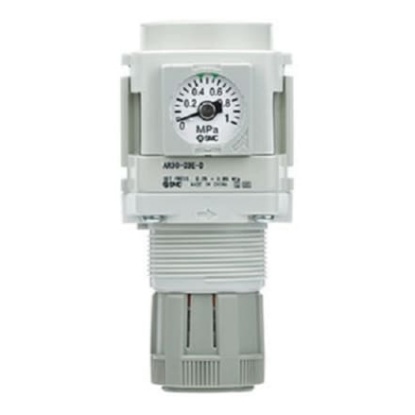

SMC Air Regulator AR20-B - AR40-B SMC’s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted. Note An integral Pressure Gauge is shown on the picture for reference only. It is not supplied as a part of the set and has to be bought separately.

SMC Air Regulator AR20-B - AR40-B SMC’s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted. Note An integral Pressure Gauge is shown on the picture for reference only. It is not supplied as a part of the set and has to be bought separately.

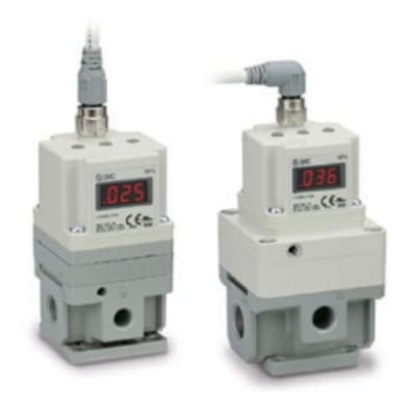

The SMC ITV2000 series electro pneumatic regulator has operating pressure of 10 bar. They are light weight in design with a bright and easy to read LED display. The monitor output is available either as analog output or switch output. Stepless control of air pressure proportional to an electrical signal Reduced wiring Compact and light weight Added RS-232C specification to serial communications

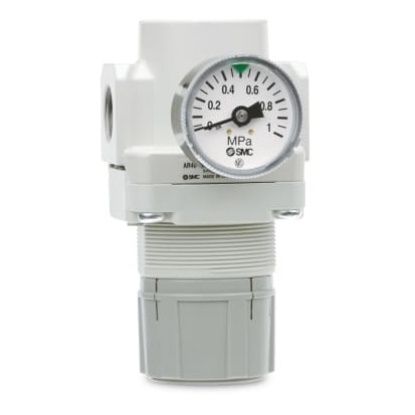

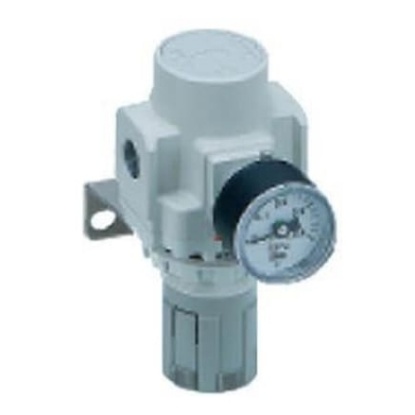

The SMC series ARM is part of SMC's pressure control equipment line. The ARM series is available with or without one-touch fittings depending on the model type. Air consumption decrease by 80% from the existing product (ARP3000). Allows precise control of air pressure Standard backflow function (ARP20K/30K/40K) Standard digital pressure switches Compatible with the new AC spacers

The SMC Direct operated precision regulator is with the backflow function it incorporates a mechanism to exhaust the air pressure in the outlet side reliably and quickly. Sensitivity is within 0.2% F.S Energy saving, air consumption 80% reduction
