Pneumatic Piston Rod Cylinders

Cylinders Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs. Space and weight saving Magnetic piston Proof pressure 15bar Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max Supplied with tapered and parallel ports Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch) Internal female threaded rod ends Nitrile seals Lubrication not required Suitable for solid state switch D-M9PL

The SMC CQ2 series compact cylinder has redesigned with a new body and it is made from hard anodised aluminium alloy. It is double acting, single rod with auto switch mounting groove. These cylinders are designed to operate using relatively low air pressure of up to 1.0 Map. Ambient and fluid temperature ranges from -10 to 60°C Fluid is air Lubrication not required Proof pressure 15 bar Lighter weight

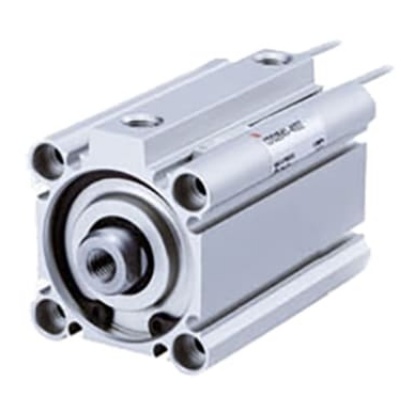

SMC CDQ-Z Compact Cylinder SMC have improved there already excellent CQ2 range of compact pneumatic cylinders. The CQ2-Z series of this popular range of compact actuators has an entirely redesigned body that is 5-13% lighter than the original and increased auto switch mounting options. Integrated auto switch channels designed for the dual colour solid state switches reduces the risk of damage during installation and maintenance. Available in bore sizes 32 to 63mm and 5, 10, 15 and 75mm stroke options. SMC CDQ Series

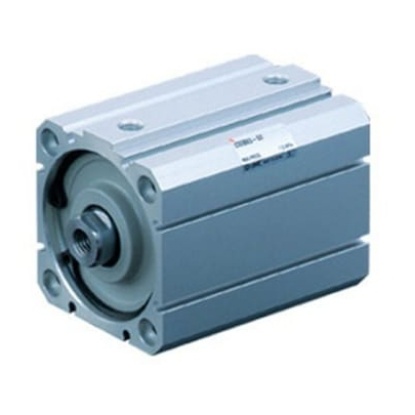

C55 Compact ISO Cylinder ISO Standard compact cylinder with hard anodized aluminium body. Available as double acting with magnetic piston as standard. ISO standard 21287 Compact Magnetic sensing Note Fastening elements should be ordered separately. Standards ISO 21287

Cylinders Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs. Space and weight saving Magnetic piston Proof pressure 15bar Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max Supplied with tapered and parallel ports Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch) Internal female threaded rod ends Nitrile seals Lubrication not required Suitable for solid state switch D-M9PL

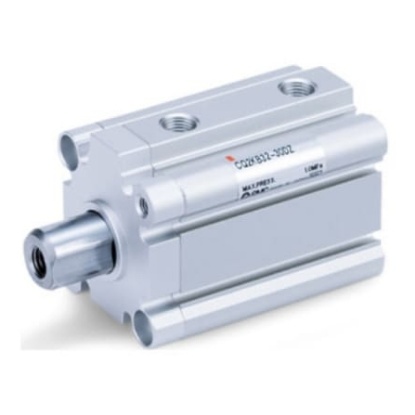

The SMC standard double acting, single rod version of the CQ2 compact cylinder. It is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces. Boss on head end With auto switch magnet Standard stroke range 5 to 100mm

The SMC standard double acting, single rod version of the CQ2 compact cylinder. It is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces. Auto switch capable Standard stroke range 5 to 100mm

The SMC compact cylinder is possible to mount small auto switches on 4 surfaces depending on the installation conditions. It improved flexibility of system design even if 2-color indication solid state auto switches are fixed at a proper operating range, Allowable lateral load Auto switch available

The SMC C55 series is a compact cylinder integrated with a guide rod and plate. The series is available in 20, 25, 32, 40, 50, 63, 80, 100, 150mm bore sizes with the same mounting dimensions as the CQ2. Large stroke range from 5 mm up to 150 mm Construction is similar to the current CQ2 lateral load resistant specification Snap ring construction allows easy and quicker maintenance Auto switches can be mounted on any of the four sides of the cylinder tube

C55 Compact ISO Cylinder ISO Standard compact cylinder with hard anodized aluminium body. Available as double acting with magnetic piston as standard. ISO standard 21287 Compact Magnetic sensing Note Fastening elements should be ordered separately. Standards ISO 21287

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. Standard strokes up to 50 mm Rubber cushion available

The SMC standard double acting, single rod version of the CQ2 compact cylinder. It is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces. Auto switch capable Standard stroke range 5 to 100mm
