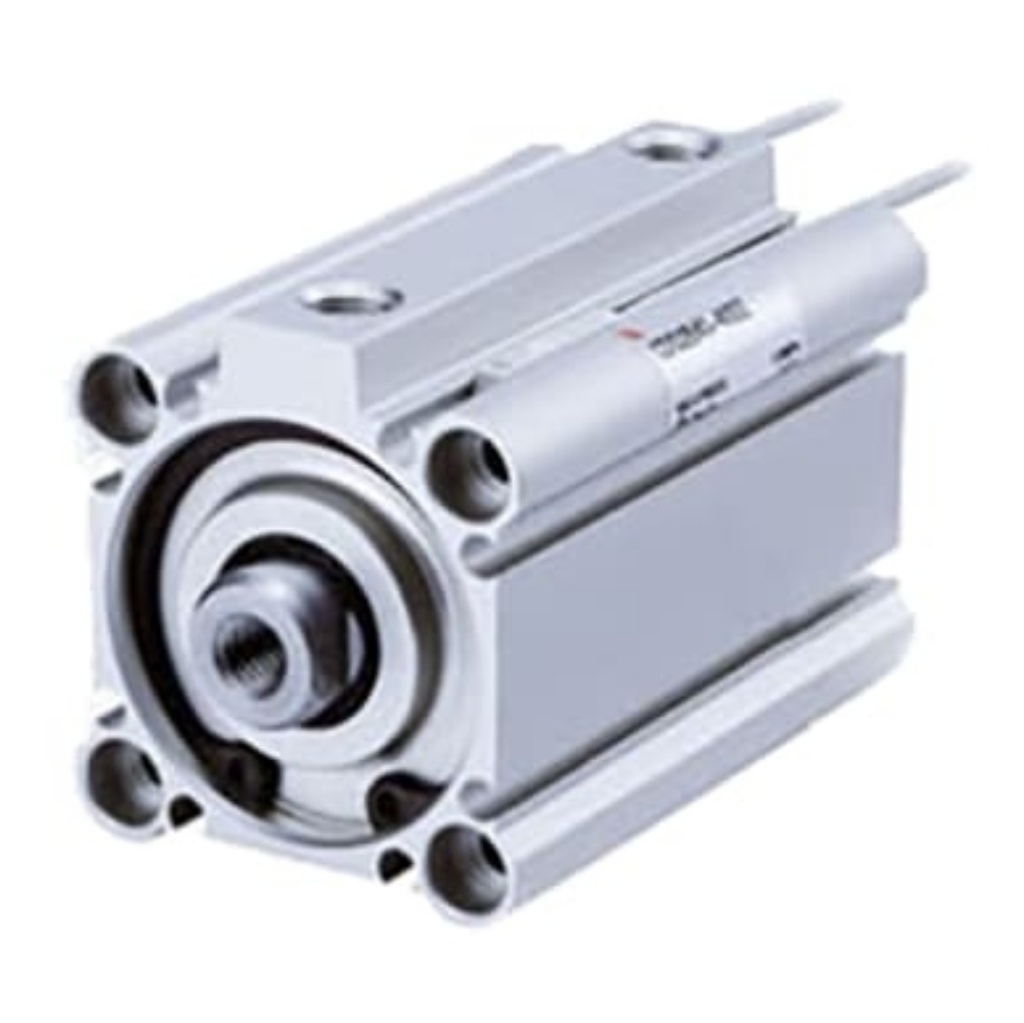

Picture of Pneumatic Compact Cylinder - 50mm Bore, 15mm Stroke, Double Acting, SMC, CDQ2B50TF-15DZ

Pneumatic Compact Cylinder - 50mm Bore, 15mm Stroke, Double Acting, SMC, CDQ2B50TF-15DZ

SMC CDQ-Z Compact Cylinder

SMC have improved there already excellent CQ2 range of compact pneumatic cylinders. The CQ2-Z series of this popular range of compact actuators has an entirely redesigned body that is 5-13% lighter than the original and increased auto switch mounting options. Integrated auto switch channels designed for the dual colour solid state switches reduces the risk of damage during installation and maintenance. Available in bore sizes 32 to 63mm and 5, 10, 15 and 75mm stroke options.

SMC CDQ Series
Manufacturer: SMC
SKU: CDQ2B50TF-15DZ
$169.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke15mm
Bore50mm
ActionDouble
Length53.5mm
Cushioning TypeNot Cushioned
Dimensions53.5 x 71 x 64mm
Width71mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Height64mm
Maximum Operating Temperature+60°C
Weight488g
Minimum Operating Temperature-10°C
