Pneumatic Piston Rod Cylinders

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. Standard strokes up to 50 mm Rubber cushion available

Cylinders Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs. Space and weight saving Magnetic piston Proof pressure 15bar Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max Supplied with tapered and parallel ports Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch) Internal female threaded rod ends Nitrile seals Lubrication not required Suitable for solid state switch D-M9PL

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. Standard strokes up to 50 mm Rubber cushion available

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. Standard strokes up to 50 mm Rubber cushion available

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. Standard strokes up to 50 mm Rubber cushion available

The SMC compact cylinder is possible to mount small auto switches on 4 surfaces depending on the installation conditions. It improved flexibility of system design even if 2-color indication solid state auto switches are fixed at a proper operating range, Allowable lateral load Auto switch available

The SMC compact cylinder is possible to mount small auto switches on 4 surfaces depending on the installation conditions. It improved flexibility of system design even if 2-color indication solid state auto switches are fixed at a proper operating range, Allowable lateral load Auto switch available

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. A round slot for mounting small auto switches is provided on 4 surfaces Available up to ø200 Rubber cushion available

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. A round slot for mounting small auto switches is provided on 4 surfaces Available up to ø200 Rubber cushion available

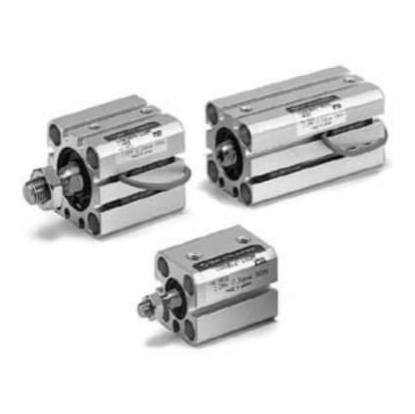

The SMC standard double acting, single rod version of the CQ2 compact cylinder. It is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces. Auto switch capable Standard stroke range 5 to 100mm

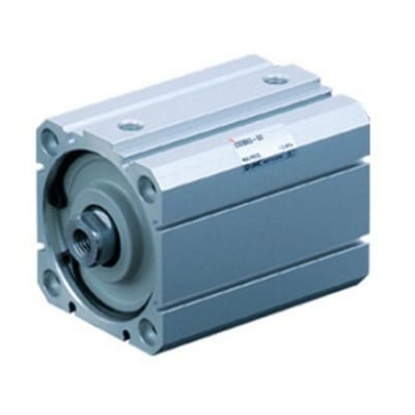

The SMC C55 series pneumatic compact cylinder made from hard anodised aluminium alloy and it has in built magnet. It has stroke length of up to 35 mm including the benefits of standardised mounting dimensions. It achieves outstanding load performance due to its unique rubber bumper, piston wear ring, and rod bushing. Lightweight Conforms with the ISO 21287 standard It is possible to mount small auto switches on 4 surfaces

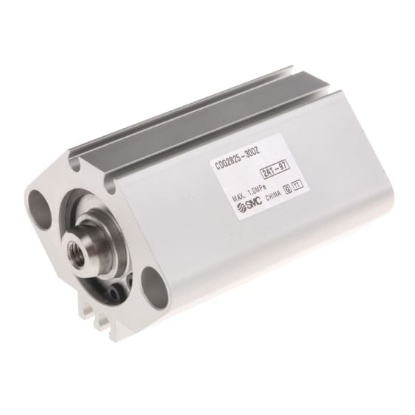

The SMC CQ2 series compact cylinder has redesigned with a new body and it is made from hard anodised aluminium alloy. It is double acting, single rod with auto switch mounting groove. These cylinders are designed to operate using relatively low air pressure of up to 1.0 Map. Ambient and fluid temperature ranges from -10 to 60°C Fluid is air Lubrication not required Proof pressure 15 bar Lighter weight
