Pneumatic Piston Rod Cylinders

The SMC Compact cylinder is small type of auto switch can be mounted from 4 directions. No protrusion of auto switch from the mounting slot. Easy maintenance Piston area equivalent to 25 mm

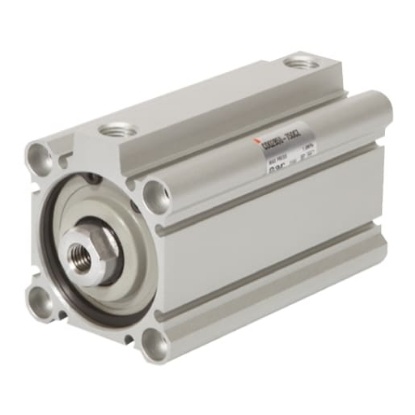

CQ2 Series Compact Cylinders Compact space saving cylinders Double acting, Single rod Wide range of options available Auto switch capable Proof pressure: 1.5 MPa Maximum operating pressure: 1.0 MPa

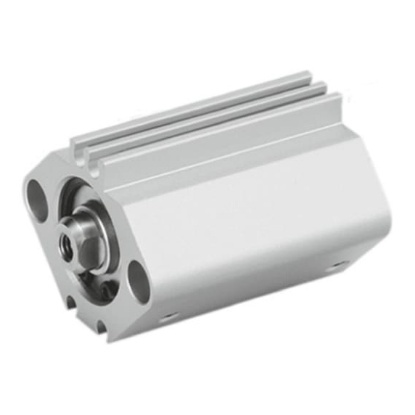

The SMC standard double acting, single rod version of the CQ2 compact cylinder. It is available in bore sizes from 12mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces. Auto switch capable Standard stroke range 5 to 100mm

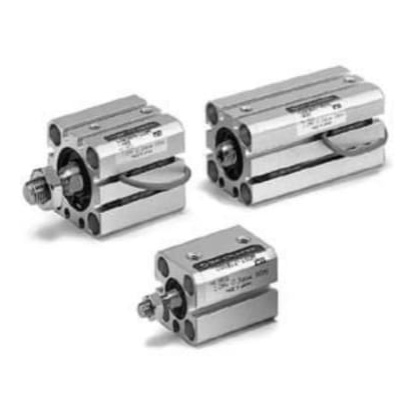

The SMC CQS series compact cylinder is available for those small bore cylinder applications where saving space is a concern. The CQS offers standard long strokes in four bore sizes from 12 to 25mm. Square body shape gives flexibility for machine design Ideal for machine designs with small space requirements Allows installation close against a wall Compact foot bracket

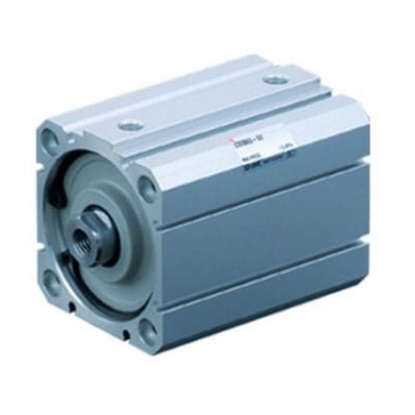

C55 Compact ISO Cylinder ISO Standard compact cylinder with hard anodized aluminium body. Available as double acting with magnetic piston as standard. ISO standard 21287 Compact Magnetic sensing Note Fastening elements should be ordered separately. Standards ISO 21287

The SMC C55 series pneumatic compact cylinder made from hard anodised aluminium alloy and it has in built magnet. It has stroke length of up to 20 mm including the benefits of standardised mounting dimensions. It achieves outstanding load performance due to its unique rubber bumper, piston wear ring, and rod bushing. Lightweight Conforms with the ISO 21287 standard It is possible to mount small auto switches on 4 surfaces

CQ2 Series Compact Cylinders Compact space saving cylinders Double acting, Single rod Wide range of options available Auto switch capable Proof pressure: 1.5 MPa Maximum operating pressure: 1.0 MPa

Cylinders Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs. Space and weight saving Magnetic piston Proof pressure 15bar Operating pressure range 0.05MPa (0.51kgf/cm2) min to 10bar max Supplied with tapered and parallel ports Temperature range (no freezing allowed) -10ºC to +70ºC (without auto switch), -10ºC to +60ºC (with auto switch) Internal female threaded rod ends Nitrile seals Lubrication not required Suitable for solid state switch D-M9PL

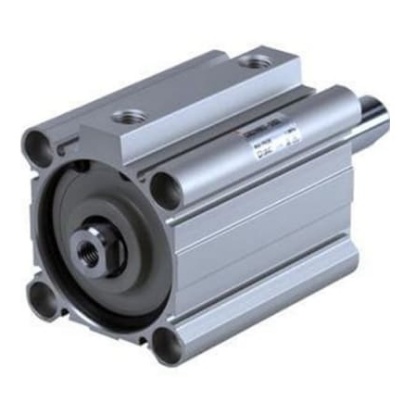

The SMC CQ2W series compact cylinder has redesigned with a new body and it is made from hard anodised aluminium alloy. It is double acting, single rod with auto switch mounting groove. These cylinders are designed to operate using relatively low air pressure of up to 1.0 Map. Ambient and fluid temperature ranges from -10 to 60°C Fluid is air Lubrication not required Proof pressure 15 bar Lighter weight

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. Standard strokes up to 50 mm Rubber cushion available

The SMC compact cylinder is ideal for machine designs with small space requirements. It has square body shape gives flexibility for machine design and auto switch mounting allows for flexible designing requirements. Standard strokes up to 50 mm Rubber cushion available

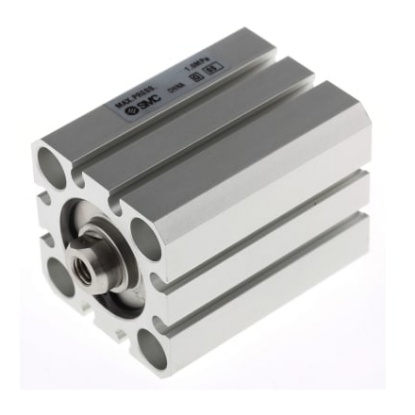

CQS Cylinders The CQS Series of Compact Cylinders is available for those small bore cylinder applications. Both switch capable and non-switch capable body styles are the same. Space and weight saving Magnetic or non-magnetic pistons available Proof pressure 15 bar Internal thread rod ends Nitrile seals Clean Lines Flush fitting auto switch as standard Variety of switches and a variety of lead wire lengths CQS 12-25 mm Diameter
