Pneumatic Piston Rod Cylinders

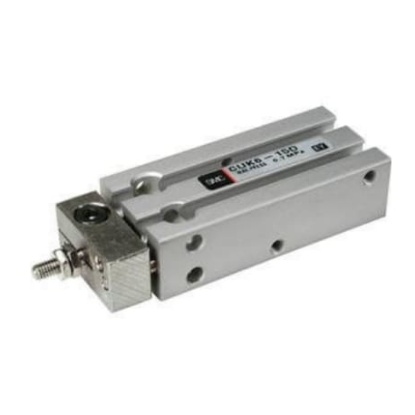

The SMC free mount cylinder has multiple surface direct mounted rectangular body with no brackets allows freedom of the mounting surface. It has auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. Non-rotating Rod Bore sizes from 6mm to 32mm available Stroke lengths up to 50mm

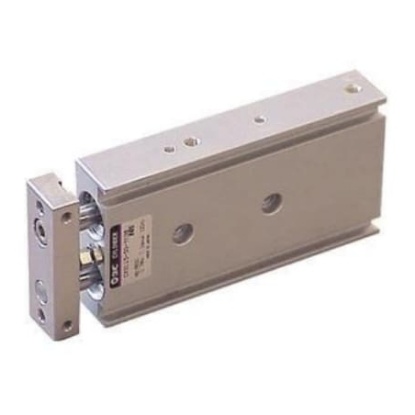

The SMC dual piston rod cylinder with ball bearing slide. It has strokes from 10mm through 100mm depending upon bore size. 3-side work piece mounting Variety of switches and a variety of lead wire lengths

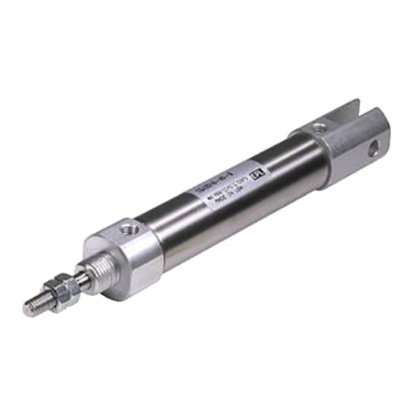

CJ2 Series Cylinders The CJ2 series from SMC are miniature cylinders. Available in spring extend, spring return, or double acting offer stainless steel tubing and stainless steel rods.These pneumatic cylinders are available in various bore sizes and stroke lengths. Mounting options include basic, foot, front flange, and double rear clevis. Series CJ2 is auto switch capable. Compact / lightweight mini air cylinders Double acting, high speed Built in magnet Note Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7bar).

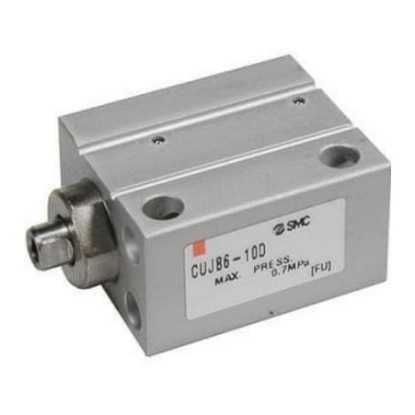

The SMC miniature free mount space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke lengths up to 20mm for double acting and 10mm for single acting. It has wiring and piping on one side which allows more efficient installatio Easy seal replacement Short pitch mounting is possible RoHS compliant Auto switch capabilities Double and single acting

The SMC miniature free mount space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke lengths up to 20mm for double acting and 10mm for single acting. It has wiring and piping on one side which allows more efficient installatio Easy seal replacement Short pitch mounting is possible RoHS compliant Auto switch capabilities Double and single acting

The SMC miniature free mount space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke lengths up to 20mm for double acting and 10mm for single acting. It has wiring and piping on one side which allows more efficient installatio Easy seal replacement Short pitch mounting is possible RoHS compliant Auto switch capabilities Double and single acting

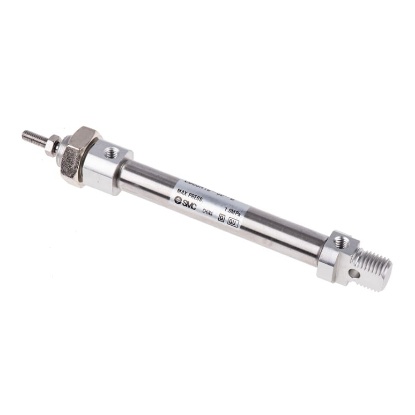

SMC C85 Pneumatic Cylinders SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. C85 cylinders are suppied with a piston rod locknut and nose-mounting nut; installation is made easy through the use of large spanner flats and the space-saving design.

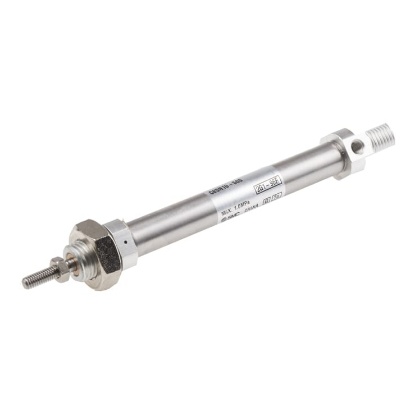

SMC C85 Pneumatic Cylinders SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. C85 cylinders are suppied with a piston rod locknut and nose-mounting nut; installation is made easy through the use of large spanner flats and the space-saving design.

The SMC free mount cylinder has multiple surface direct mounted rectangular body with no brackets allows freedom of the mounting surface. It has auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. Non-rotating Rod Bore sizes from 6mm to 32mm available Stroke lengths up to 50mm

The SMC compact type dual piston rod cylinder has non-rotating accuracy ± 0.1°. The high precision ball bushing type allows for smooth operation that ensures stable travel resistance. Auto switch can be installed from 3 directions Symmetric mounting Axial piping available

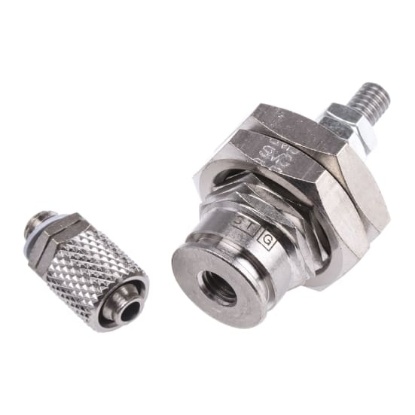

SMC CJP Miniature pin cylinders for panel mount. All cylinders are single acting with spring return. Lubrication not required Threaded rod-end style Non-cushioned Proof pressure 10.5 bar Operating pressure 2 bar, 6mm dia and 1.5 bar, 10mm/15mm dia (min) 7 bar (max) Ambient and fluid temperature 5°C to 60°C Stroke tolerance: +1.0mm Note Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7bar).

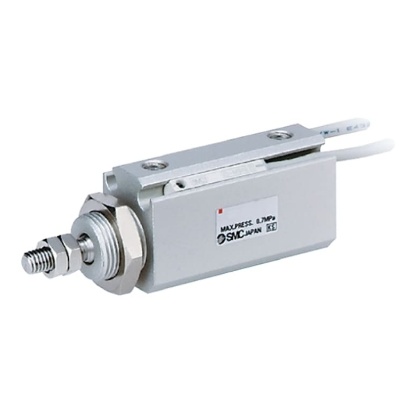

Cylinders Bore sizes 6, 10, 16mm Magnetic piston standard Compact design Lubrication not required Male-threaded rod end IP67 rated Proof pressure 1.05 bar Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max) Ambient and fluid temperature -10ºC to +60°C Stroke tolerance +1.0mm, -0mm Rubber bumper cushion at both ends
