Pneumatic Piston Rod Cylinders

The SMC stainless steel cylinder is perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. Th Special scraper prevents water from entering cylinder Bore sizes (mm) 20, 25, 32, 40, 50, 63, 80 and 100 Auto switch capable

Cylinders Bore sizes 6, 10, 16mm Magnetic piston standard Compact design Lubrication not required Male-threaded rod end IP67 rated Proof pressure 1.05 bar Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max) Ambient and fluid temperature -10ºC to +60°C Stroke tolerance +1.0mm, -0mm Rubber bumper cushion at both ends

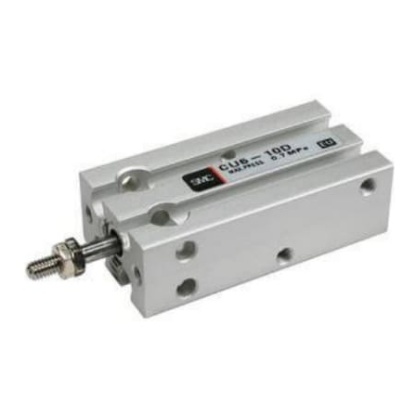

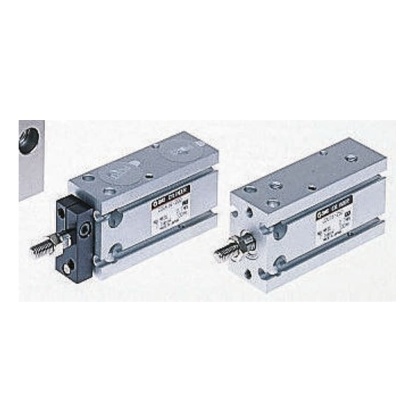

CU Series Cylinders The series CU free mount cylinder saves space and allows direct and precise mounting, Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, single and double acting and rubber bumpers standard. Maximum operating pressure 7 bar, 10.5 bar proof pressure Ambient and fluid temperature 5°C to 60°C Lubrication not required Rubber cushion to both sides Stroke allowance +1.0mm Port size M5, except 32Ø which is Rc(PT) 1//8 in. CDU 10 - 32mm Diameter A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.

The SMC free mount cylinder has multiple surface direct mounted rectangular body with no brackets allows freedom of the mounting surface. It has auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. Non-rotating Rod Bore sizes from 6mm to 32mm available Stroke lengths up to 50mm

The SMC miniature free mount space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke lengths up to 20mm for double acting and 10mm for single acting. It has wiring and piping on one side which allows more efficient installatio Easy seal replacement Short pitch mounting is possible RoHS compliant Auto switch capabilities Double and single acting

CU Series Cylinders The series CU free mount cylinder saves space and allows direct and precise mounting, Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, single and double acting and rubber bumpers standard. Maximum operating pressure 7 bar, 10.5 bar proof pressure Ambient and fluid temperature 5°C to 60°C Lubrication not required Rubber cushion to both sides Stroke allowance +1.0mm Port size M5, except 32Ø which is Rc(PT) 1//8 in. CDU 10 - 32mm Diameter A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.

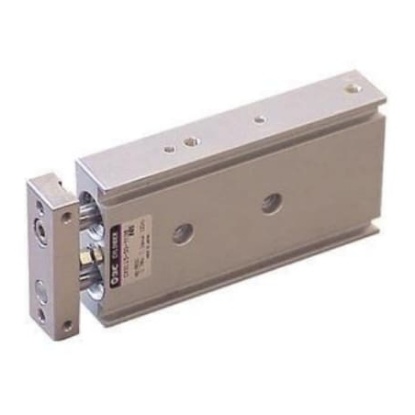

The SMC compact type dual piston rod cylinder has non-rotating accuracy ± 0.1°. The high precision ball bushing type allows for smooth operation that ensures stable travel resistance. Auto switch can be installed from 3 directions Symmetric mounting Axial piping available

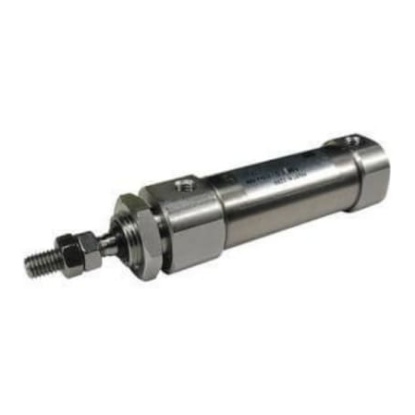

CJ2 Series Cylinders The CJ2 series from SMC are miniature cylinders. Available in spring extend, spring return, or double acting offer stainless steel tubing and stainless steel rods.These pneumatic cylinders are available in various bore sizes and stroke lengths. Mounting options include basic, foot, front flange, and double rear clevis. Series CJ2 is auto switch capable. Compact / lightweight mini air cylinders Double acting, high speed Built in magnet Note Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7bar).

Cylinders Bore sizes 6, 10, 16mm Magnetic piston standard Compact design Lubrication not required Male-threaded rod end IP67 rated Proof pressure 1.05 bar Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max) Ambient and fluid temperature -10ºC to +60°C Stroke tolerance +1.0mm, -0mm Rubber bumper cushion at both ends

SMC C85 Pneumatic Cylinders SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. C85 cylinders are suppied with a piston rod locknut and nose-mounting nut; installation is made easy through the use of large spanner flats and the space-saving design.

Cylinders Bore sizes 6, 10, 16mm Magnetic piston standard Compact design Lubrication not required Male-threaded rod end IP67 rated Proof pressure 1.05 bar Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max) Ambient and fluid temperature -10ºC to +60°C Stroke tolerance +1.0mm, -0mm Rubber bumper cushion at both ends

The SMC free mount cylinder has multiple surface direct mounted rectangular body with no brackets allows freedom of the mounting surface. It has auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. Non-rotating Rod Bore sizes from 6mm to 32mm available Stroke lengths up to 50mm
