Pneumatic Cylinder & Actuator Accessories
Pneumatic cylinders and actuators often require various accessories to enhance their functionality, improve mounting options, and ensure precise control and long-term reliability. These accessories play a vital role in tailoring systems to specific applications.
Common Accessories
- Mounting Brackets: Used to securely install cylinders in different orientations (flange, foot, clevis, trunnion, etc.).
- Rod Clevises and Eye Brackets: Allow attachment to loads or mechanical linkages.
- Pivot Pins: Used with clevis or trunnion mounts to allow angular motion.
- Cushioning Devices: Absorb impact at the end of strokes to reduce wear and noise.
- Proximity Sensors: Detect piston position and send signals for automation or feedback control.
- Rod Boots and Bellows: Protect piston rods from dust, debris, and contaminants.
- Flow Control Valves: Regulate the speed of cylinder movement by controlling airflow.
- Magnetic Rings: Enable external sensing of piston position when paired with magnetic sensors.
Why Accessories Are Important
- Ensure correct alignment and secure installation
- Improve durability and reduce mechanical stress
- Enable integration into automated systems
- Enhance control and performance
Application Examples
- Mounting brackets used to attach a cylinder to a conveyor system
- Proximity sensors used for stroke-end detection in a packaging machine
- Rod boots used in dirty environments like food processing or mining
Clevis , For Use With Cylinder, SMC, D5040(F)
D5040(F)
The SMC ISO cylinder is cushion stroke time can now be reduced with the double cushioning, which improves the cycle time. The bumper cushion reduces the metal noise that occurs when the piston stops at the end of the stroke.
Auto switch mounting
CNOMO grooves
$59.61
Clevis , For Use With Cylinder, SMC, DS5050(F)
DS5050(F)
The SMC ISO cylinder is cushion stroke time can now be reduced with the double cushioning, which improves the cycle time. The bumper cushion reduces the metal noise that occurs when the piston stops at the end of the stroke.
Auto switch mounting
CNOMO grooves
$87.09

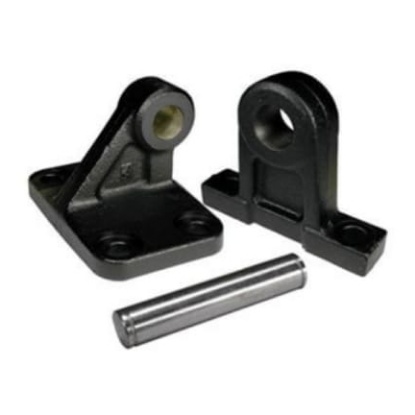

Clevis , For Use With Cylinder, SMC, DS5080
DS5080
The SMC ISO cylinder is cushion stroke time can now be reduced with the double cushioning, which improves the cycle time. The bumper cushion reduces the metal noise that occurs when the piston stops at the end of the stroke.
Auto switch mounting
CNOMO grooves
$145.91

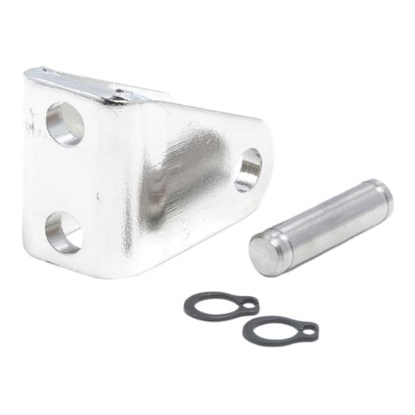

Clevis , To Fit 12mm Bore Size, SMC, C85C16
C85C16
Mountings
SMC C85 pneumatic cylinder foot mounts, available singularly, with one locknut or as a pair. The foot mounts are suitable for use with C85 series single and double-acting C85 pneumatic cylinders.
C85 cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, incorporate double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. Installation is made easy through the use of large spanner flats and the space-saving design.
$7.13

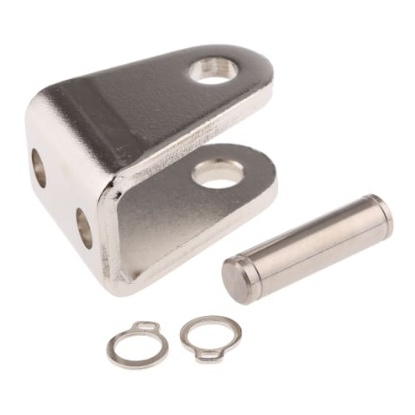

Clevis , To Fit 20mm Bore Size, SMC, C85C25
C85C25
Mountings
SMC C85 pneumatic cylinder foot mounts, available singularly, with one locknut or as a pair. The foot mounts are suitable for use with C85 series single and double-acting C85 pneumatic cylinders.
C85 cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, incorporate double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. Installation is made easy through the use of large spanner flats and the space-saving design.
$15.76

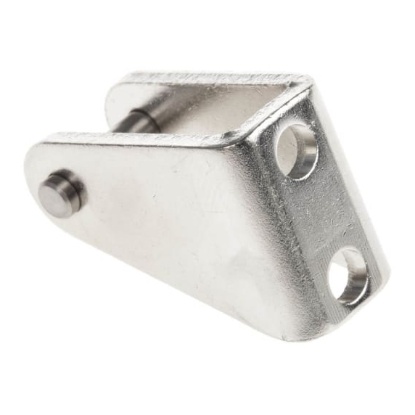

Clevis , To Fit 8mm Bore Size, SMC, C85C10
C85C10
Mountings
SMC C85 pneumatic cylinder foot mounts, available singularly, with one locknut or as a pair. The foot mounts are suitable for use with C85 series single and double-acting C85 pneumatic cylinders.
C85 cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, incorporate double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. Installation is made easy through the use of large spanner flats and the space-saving design.
$9.93

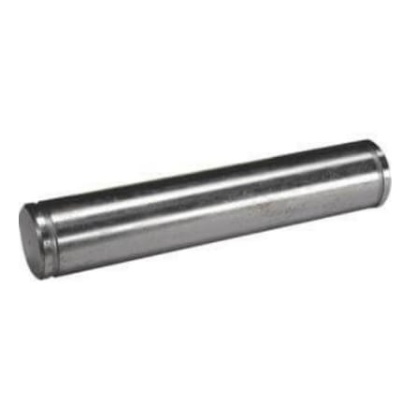

Clevis Pin , For Use With CG1, SMC, CD-G04
CD-G04
The SMC Air Cylinder it is Female rod end available as standard. Rod end styles suitable for the application can be selected.
Easy fine adjustment of auto switch position
Transparent switch bracket improves visibility of indicator LED
$13.38

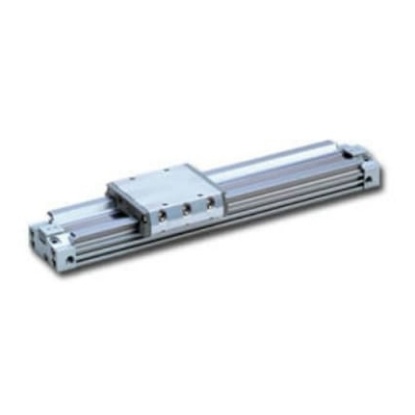

Cylinder Assembly , For Use With Jointed Rodless Cylinder, SMC, MY3M16-200
MY3M16-200
The SMC MY3M series is a slide bearing type mechanically jointed rod less cylinder. The work pieces can be loaded directly on the work table due to the integrated guide.
Applicable Fluid is air
Operating temperature is 5 to 60 °C
$1,021.32

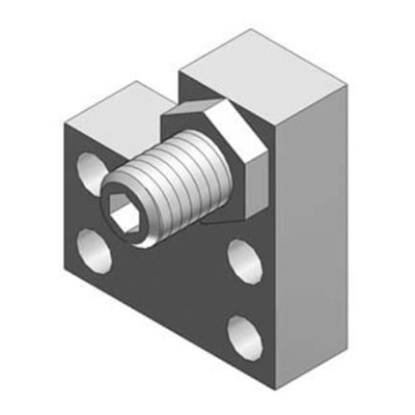

Cylinder Assembly , For Use With MXQ Series, SMC, MXQ-AS25
MXQ-AS25
The SMC MXQ series stroke adjuster used for guided cylinder.
Stroke adjustment range 5 mm
$115.39

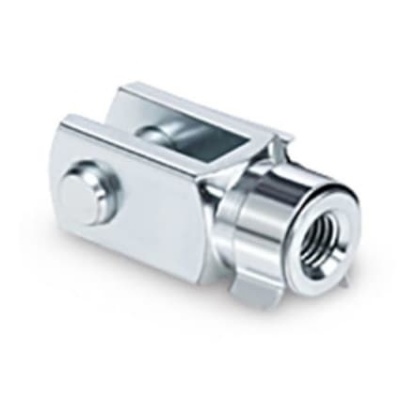

Cylinder Assembly , For Use With SMC cylinder, SMC, GKM6-12-IN(F)
GKM6-12-IN(F)
The SMC cylinder have standard non rotating type double acting single or double rod air cylinder. It has replaceable rod seal. It is easy to mount.
High speed actuation
Strong, Corrosion-proof Barrel
$30.12

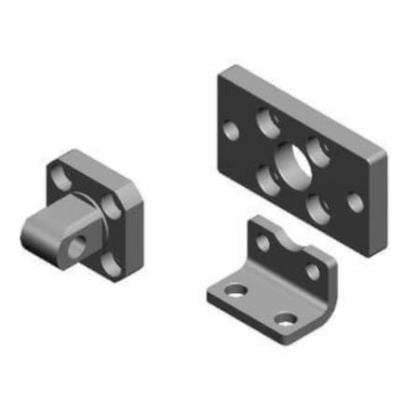

Cylinder Bracket , For Use With C55 Compact Cylinder, SMC, C55-L050
C55-L050
The SMC Compact cylinder is auto switches can be mounted on any of the 4 surfaces, depending on the installation conditions. Improved flexibility of system design.
2-color indication solid state auto switch
$23.38
Cylinder Port , For Use With SX3000 Body Ported Valve Single Unit, SMC, VVQ1000-50A-C4
VVQ1000-50A-C4
Solenoid Valve Series SV1000 & SV2000
SMC SV Series employ multi-pin connectors in place of conventional lead wires within manifold blocks. The design of the connector-type manifold enables any changes within the manifold station to be greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Changes that are made to the set-up, whether adding to or altering the configuration, is therefore very flexible and greatly simplified, reducing system down-time. The pin configuration for parallel or serial-wired manifold blocks makes it unnecessary for the units to require disassembly.
SMC SV Series
$78.86
