Pneumatic Cylinder & Actuator Accessories
Pneumatic cylinders and actuators often require various accessories to enhance their functionality, improve mounting options, and ensure precise control and long-term reliability. These accessories play a vital role in tailoring systems to specific applications.
Common Accessories
- Mounting Brackets: Used to securely install cylinders in different orientations (flange, foot, clevis, trunnion, etc.).
- Rod Clevises and Eye Brackets: Allow attachment to loads or mechanical linkages.
- Pivot Pins: Used with clevis or trunnion mounts to allow angular motion.
- Cushioning Devices: Absorb impact at the end of strokes to reduce wear and noise.
- Proximity Sensors: Detect piston position and send signals for automation or feedback control.
- Rod Boots and Bellows: Protect piston rods from dust, debris, and contaminants.
- Flow Control Valves: Regulate the speed of cylinder movement by controlling airflow.
- Magnetic Rings: Enable external sensing of piston position when paired with magnetic sensors.
Why Accessories Are Important
- Ensure correct alignment and secure installation
- Improve durability and reduce mechanical stress
- Enable integration into automated systems
- Enhance control and performance
Application Examples
- Mounting brackets used to attach a cylinder to a conveyor system
- Proximity sensors used for stroke-end detection in a packaging machine
- Rod boots used in dirty environments like food processing or mining

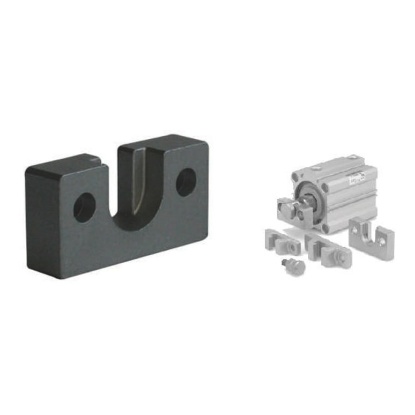

Bracket , To Fit 32mm Bore Size, SMC, YB-03
YB-03
Mounting Accessories
Mounting accessories for the SMC CQ2 series compact pneumatic cylinders.
$24.15
CHAPE AVANT CS1 DIA.125, SMC, Y-12
Y-12
The SMC Y Type double knuckle joint made from cast iron material.
Knuckle pins and cotter pins are included
$230.63
Chape de tige et joint de type Y, SMC, Y-G05
Y-G05
The SMC piston rod clevis is a high-quality and durable component that is designed for use with the CQ2 COMPACT CYLINDER. It is made from stainless steel, ensuring excellent corrosion resistance and long-lasting performance. With its compact and efficient design, this piston rod clevis allows for smooth and precise operation of the cylinder. It is suitable for a wide range of applications in industries such as manufacturing, automation, and robotics.
Made from stainless steel for excellent corrosion resistance
Durable construction for long-lasting performance
Compact design for easy installation and space-saving
Compatible with the CQ2 COMPACT CYLINDER for smooth and precise operation
Suitable for a wide range of applications in manufacturing, automation, and robotics
$23.38
Clevis , For Use With Auto Switch Mounting Bracket, SMC, CG-D020
CG-D020
The SMC Air cylinder short type is female rod end available as standard. Applications expanded by making it possible to select either male or female thread within the standard model.
2-color indication solid state auto switch mountable
Increases effectiveness of adjustment time
$19.53

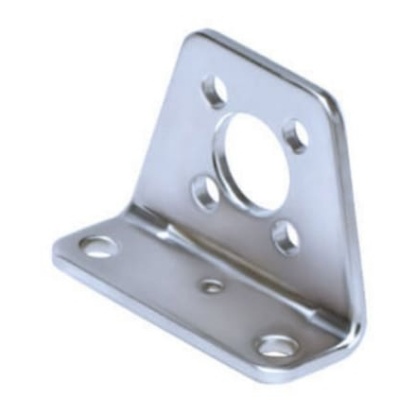

Clevis , For Use With Auto Switch Mounting Bracket, SMC, CG-D080
CG-D080
The SMC Air cylinder short type is female rod end available as standard. Applications expanded by making it possible to select either male or female thread within the standard model.
2-color indication solid state auto switch mountable
Increases effectiveness of adjustment time
$110.16
Clevis , For Use With Auto Switch Mounting Bracket, SMC, CG-E020SUS
CG-E020SUS
The SMC mounting bracket is available in different types like flange, foot, trunnion, single & double clevis. It is used for all bore sizes.
Applicable bore sizes (mm) 20 to 100
$23.08

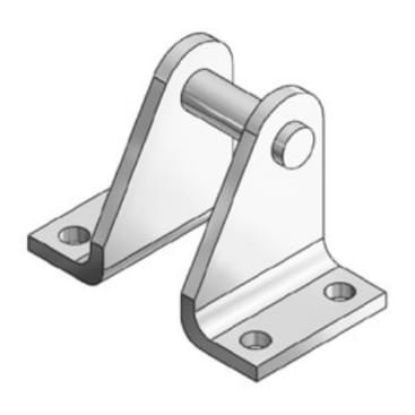

Clevis , For Use With Auto Switch Mounting Bracket, SMC, CG-E032SUS
CG-E032SUS
The SMC Stainless steel cylinder is applicable for use in an environment with water splashing such as food processing. Stainless steel 304 is used for external metal parts. Corrosion resistance is improved even in environments with exposure to water.
Special scraper
Two types of seal material
$41.17
Clevis , For Use With CG1 Cylinder Series, SMC, CG-D100
CG-D100
The SMC mounting bracket has space saving design with high dimensional accuracy, making these cylinders very easy to use. Large spanner flats on the rod and head covers greatly simplify their installation and positioning. Greater side loads are allowed du
Low friction
Standard elastomer cushion rings
$140.38
Clevis , For Use With Cylinder, SMC, C5063(F)
C5063(F)
The SMC single clevis has high accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod.
Strokes range from 25 to 800mm
Ball Joint
bore sizes from ø32 to ø125mm
$59.61

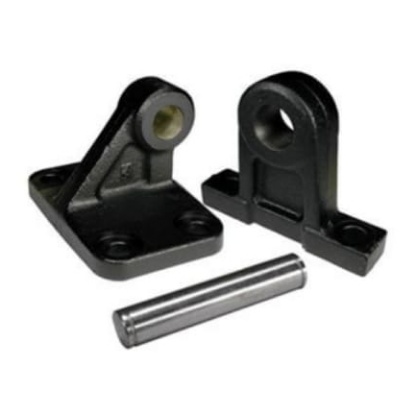

Clevis , For Use With Cylinder, SMC, C5125
C5125
The SMC single clevis has high accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod.
Strokes range from 25 to 800mm
Ball Joint
bore sizes from ø32 to ø125mm
$263.38
Clevis , For Use With Cylinder, SMC, C5160
C5160
The SMC ISO cylinder is cushion stroke time can now be reduced with the double cushioning, which improves the cycle time. The bumper cushion reduces the metal noise that occurs when the piston stops at the end of the stroke.
Auto switch mounting
CNOMO grooves
$382.02
