Flow Sensors

The SMC PFMB series 2-color digital flow switch with wide range of flow measurement reduces piping installation work and space requirements. The special design provides smooth adjustment to match needle rotations. Compact, space saving Grease free Reversible display Digital display allows visualization of flow rate

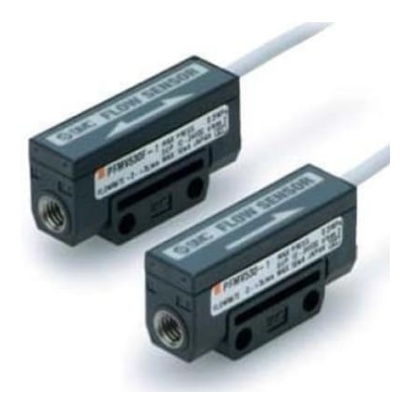

The SMC PFMV5 series is a low flow analog sensor compatible with air and nitrogen. It is intended to provide more reliable detection of suction of small components than can be achieved with a pressure sensor. Its small size permits deployment into areas with tight clearance, or manifold arrangements with a small footprint. The sensor includes a fixed cable and holes for direct mounting, with an optional mounting bracket kit. It is IP40 rated. Response speed 5 ms or less Proof pressure 500 kPa Grease-free RoHS compliant Flexible cable Rated pressure range -70KPa to 300KPa

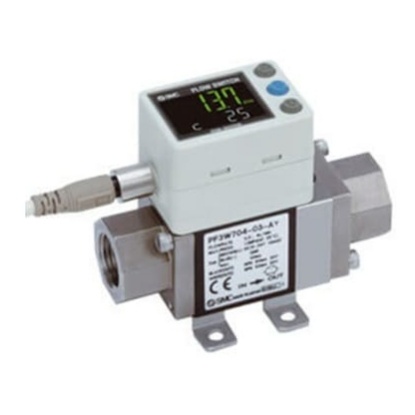

The SMC PF3W series is a digital flow sensor that constantly monitor water or coolant flow. The body is up to 40% smaller in volume, and requires shorter straight piping for improved installation flexibility. It has 2-screen, 3-color numerical display rotate in both CW and CCW directions, offering improved visibility in a range of orientations. It has two output including two switch signal, or a switch and analog signal. Temperature rating 0-90°C Accuracy ±3% F.S. Repeatability ±2% F.S.
