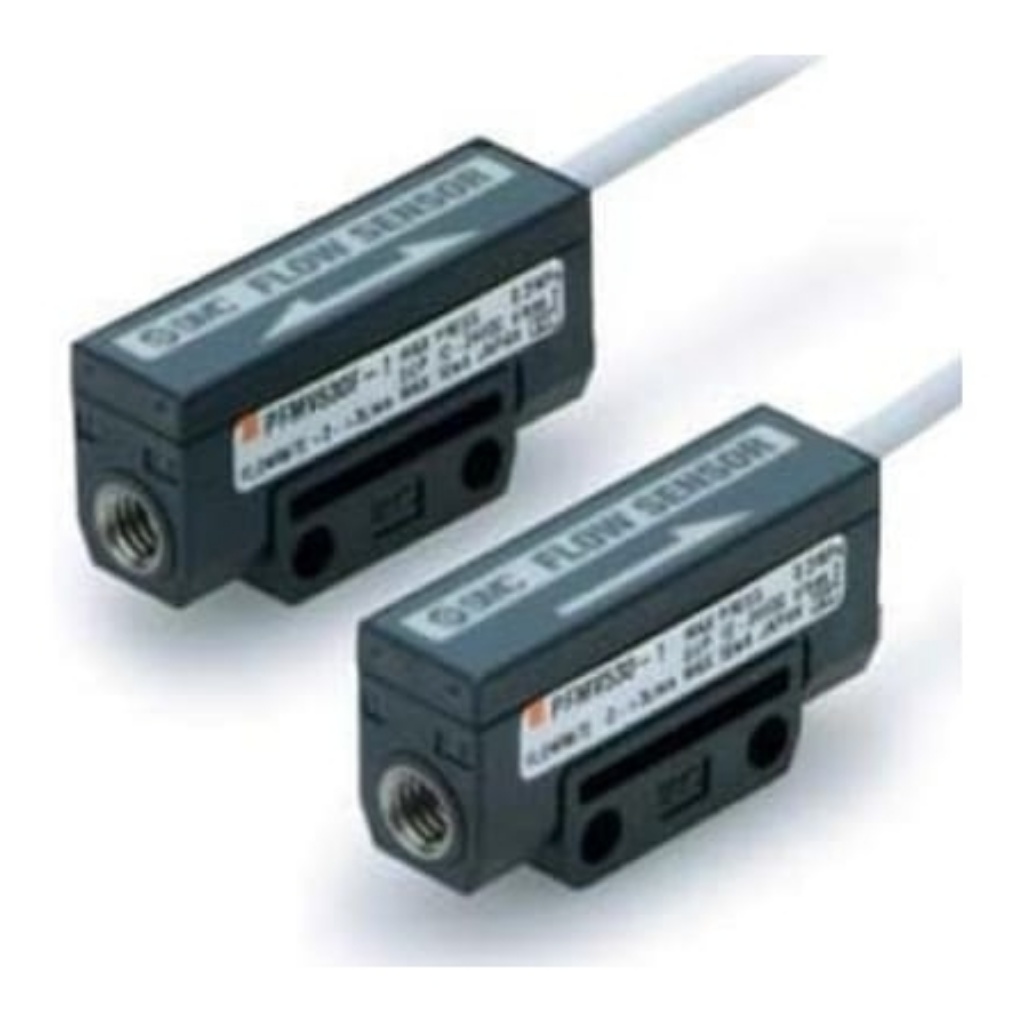

Picture of PFMV5 Series Flow Sensor for Dry Air, Gas, 0 l/min Min, 3 L/min Max, SMC, PFMV530F-1

PFMV5 Series Flow Sensor for Dry Air, Gas, 0 l/min Min, 3 L/min Max, SMC, PFMV530F-1

The SMC PFMV5 series is a low flow analog sensor compatible with air and nitrogen. It is intended to provide more reliable detection of suction of small components than can be achieved with a pressure sensor. Its small size permits deployment into areas with tight clearance, or manifold arrangements with a small footprint. The sensor includes a fixed cable and holes for direct mounting, with an optional mounting bracket kit. It is IP40 rated.

Response speed 5 ms or less
Proof pressure 500 kPa
Grease-free
RoHS compliant
Flexible cable
Rated pressure range -70KPa to 300KPa
Manufacturer: SMC
SKU: PFMV530F-1
$369.55
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Media MonitoredDry Air, Gas
Device TypeFlow Sensor
Minimum Flow Rate0 l/min
Maximum Flow Rate3 L/min
Supply Voltage24 V dc
SeriesPFMV5
