Filter Regulators

Filter regulators are integrated components used in compressed air systems to enhance efficiency and maintain consistent performance. These devices combine the functions of both a pneumatic filter and a pressure regulator into a single compact unit. Commonly used in pneumatic air preparation setups, filter regulators help streamline installation and conserve space. While available as separate units, combined filter regulator assemblies offer convenience and reduce the need for additional piping.

  • Pneumatic Regulators, also known as pressure control devices, manage the output air pressure within the system. They maintain stable pressure levels and help reduce unnecessary air consumption, improving energy efficiency.
  • Pneumatic Filters are responsible for purifying the air by eliminating contaminants such as water, dust, and debris. These filters ensure that only clean, dry air passes through the system, protecting downstream equipment.

The connection points—referred to as inlet and outlet ports—are used to integrate the filter regulator with the rest of the pneumatic system. These ports are specified by their type and size, such as G 1/8.

Applications of Filter Regulators

Pneumatic filter regulators are used in various industries that rely on compressed air systems, including:

  • Aerospace
  • Automotive
  • Chemical processing
  • Electronics manufacturing
  • Food and beverage production
  • Medical devices
  • Dental practices
  • Pharmaceutical manufacturing
View as Grid List
Sort by
Display per page

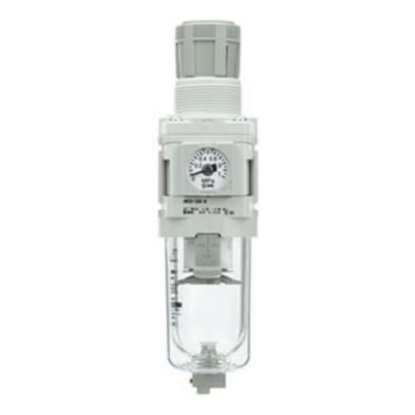

Picture of AW-D Series Filter Regulator, 5μm, G 3/4, None, 10 bar, SMC, AW40-F06G-D

AW-D Series Filter Regulator, 5μm, G 3/4, None, 10 bar, SMC, AW40-F06G-D

AW40-F06G-D
The SMC AW-D series of modular filters are filter regulator units for the AW40A-D series of FRLs. It has G type pipe threads and the port size is 3/4 inch. It comes with no float type auto drain and it comes without backflow function. This model has round type pressure gauge (with limit indicator). Integrated filters for space saving and requires less piping Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side
$213.69
Picture of AW-D Series Filter Regulator, 5μm, G 3/4, None, 10 bar, SMC, AW40K-F06E-D

AW-D Series Filter Regulator, 5μm, G 3/4, None, 10 bar, SMC, AW40K-F06E-D

AW40K-F06E-D
The SMC AW-D series of modular filters are filter regulator units for the AW40A-D series of FRLs. It has G type pipe threads and the port size is 3/4 inch. It comes with no float type auto drain and it comes with backflow function. This model has square embedded type pressure gauge (with limit indicator). Integrated filters for space saving and requires less piping Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side
$213.69
Picture of AW-D Series Filter Regulator, 5μm, G 3/4, None, 10 bar, SMC, AW40K-F06G-D

AW-D Series Filter Regulator, 5μm, G 3/4, None, 10 bar, SMC, AW40K-F06G-D

AW40K-F06G-D
The SMC AW-D series of modular filters are filter regulator units for the AW40A-D series of FRLs. It has G type pipe threads and the port size is 3/4 inch. It comes with no float type auto drain and it comes with backflow function. This model has round type pressure gauge (with limit indicator). Integrated filters for space saving and requires less piping Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side
$213.69
Picture of AW-D Series Filter Regulator, 5μm, G 3/4, None, 10 bar, SMC, AW60K-F06E-D

AW-D Series Filter Regulator, 5μm, G 3/4, None, 10 bar, SMC, AW60K-F06E-D

AW60K-F06E-D
The SMC AW-D series of modular filters are filter regulator units for the AW60A-D series of FRLs. It has G type pipe threads and the port size is 3/4 inch. It comes with no float type auto drain and it comes with backflow function. This model has square embedded type pressure gauge (with limit indicator). Integrated filters for space saving and requires less piping Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side
$320.26
Picture of AW-D Series Filter Regulator, 5μm, G 3/8, Auto, 10 bar, SMC, AW30-F03DE-D

AW-D Series Filter Regulator, 5μm, G 3/8, Auto, 10 bar, SMC, AW30-F03DE-D

AW30-F03DE-D
The SMC AW-D series of modular filters are filter regulator units for the AW30A-D series of FRLs. It has G type pipe threads and the port size is 3/8 inch. It comes with normally open float type auto drain and it comes without backflow function. This model has square embedded type pressure gauge (with limit indicator). Integrated filters for space saving and requires less piping Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side
$199.41
Picture of AW-D Series Filter Regulator, 5μm, G 3/8, Auto, 10 bar, SMC, AW30-F03DG-D

AW-D Series Filter Regulator, 5μm, G 3/8, Auto, 10 bar, SMC, AW30-F03DG-D

AW30-F03DG-D
The SMC AW-D series of modular filters are filter regulator units for the AW30A-D series of FRLs. It has G type pipe threads and the port size is 3/8 inch. It comes with normally open float type auto drain and it comes without backflow function. This model has round type pressure gauge (with limit indicator). Integrated filters for space saving and requires less piping Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side
$199.41
Picture of AW-D Series Filter Regulator, 5μm, G 3/8, Auto, 10 bar, SMC, AW30K-F03DE-D

AW-D Series Filter Regulator, 5μm, G 3/8, Auto, 10 bar, SMC, AW30K-F03DE-D

AW30K-F03DE-D
The SMC AW-D series of modular filters are filter regulator units for the AW30A-D series of FRLs. It has G type pipe threads and the port size is 3/8 inch. It comes with normally open float type auto drain and it comes with backflow function. This model has square embedded type pressure gauge (with limit indicator). Integrated filters for space saving and requires less piping Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side
$199.41
Picture of AW-D Series Filter Regulator, 5μm, G 3/8, None, 10 bar, SMC, AW30-F03G-D

AW-D Series Filter Regulator, 5μm, G 3/8, None, 10 bar, SMC, AW30-F03G-D

AW30-F03G-D
The SMC AW-D series of modular filters are filter regulator units for the AW30A-D series of FRLs. It has G type pipe threads and the port size is 3/8 inch. It comes with no float type auto drain and it comes without backflow function. This model has round type pressure gauge (with limit indicator). Integrated filters for space saving and requires less piping Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side
$133.56
Picture of AW-D Series Filter Regulator, 5μm, G 3/8, None, 10 bar, SMC, AW30K-F03E-D

AW-D Series Filter Regulator, 5μm, G 3/8, None, 10 bar, SMC, AW30K-F03E-D

AW30K-F03E-D
The SMC AW-D series of modular filters are filter regulator units for the AW30A-D series of FRLs. It has G type pipe threads and the port size is 3/8 inch. It comes with no float type auto drain and it comes with backflow function. This model has square embedded type pressure gauge (with limit indicator). Integrated filters for space saving and requires less piping Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side
$133.56
Picture of AW-D Series Filter Regulator, 5μm, G 3/8, None, 10 bar, SMC, AW30K-F03G-D

AW-D Series Filter Regulator, 5μm, G 3/8, None, 10 bar, SMC, AW30K-F03G-D

AW30K-F03G-D
The SMC AW-D series of modular filters are filter regulator units for the AW30A-D series of FRLs. It has G type pipe threads and the port size is 3/8 inch. It comes with no float type auto drain and it comes with backflow function. This model has round type pressure gauge (with limit indicator). Integrated filters for space saving and requires less piping Models with the backflow function include a mechanism which allows for the air pressure in the outlet side to be released to the inlet side
$133.56
Picture of AWG Filter Regulator, 5μm, G 1/4, 1 Mpa, SMC, AWG30-F02G1H

AWG Filter Regulator, 5μm, G 1/4, 1 Mpa, SMC, AWG30-F02G1H

AWG30-F02G1H
The SMC integrated filter and regulator units save space and require less piping. It has square embedded type pressure gauge pressure gauge set nut for panel mounting. Ambient temperature -5 to 60 °C Port size 1/4 Pipe thread type G Without backflow function
$229.64
Picture of Internal Id Filter Regulator, 5μm, G 1/8, Automatic, Manual, 10 bar, SMC, AW20-F01H-A

Internal Id Filter Regulator, 5μm, G 1/8, Automatic, Manual, 10 bar, SMC, AW20-F01H-A

AW20-F01H-A
The SMC AW series integrated filter and regulator unit save space and require less piping with the backflow function, it incorporates a mechanism to exhaust the air pressure in the outlet side reliably and quickly. It has G1/8 thread size and its maximum operating pressure of 10 bar and has polycarbonate bowl. Better visibility and environmental resistance Energy saving regulator Easy replacement of the element
$70.50
