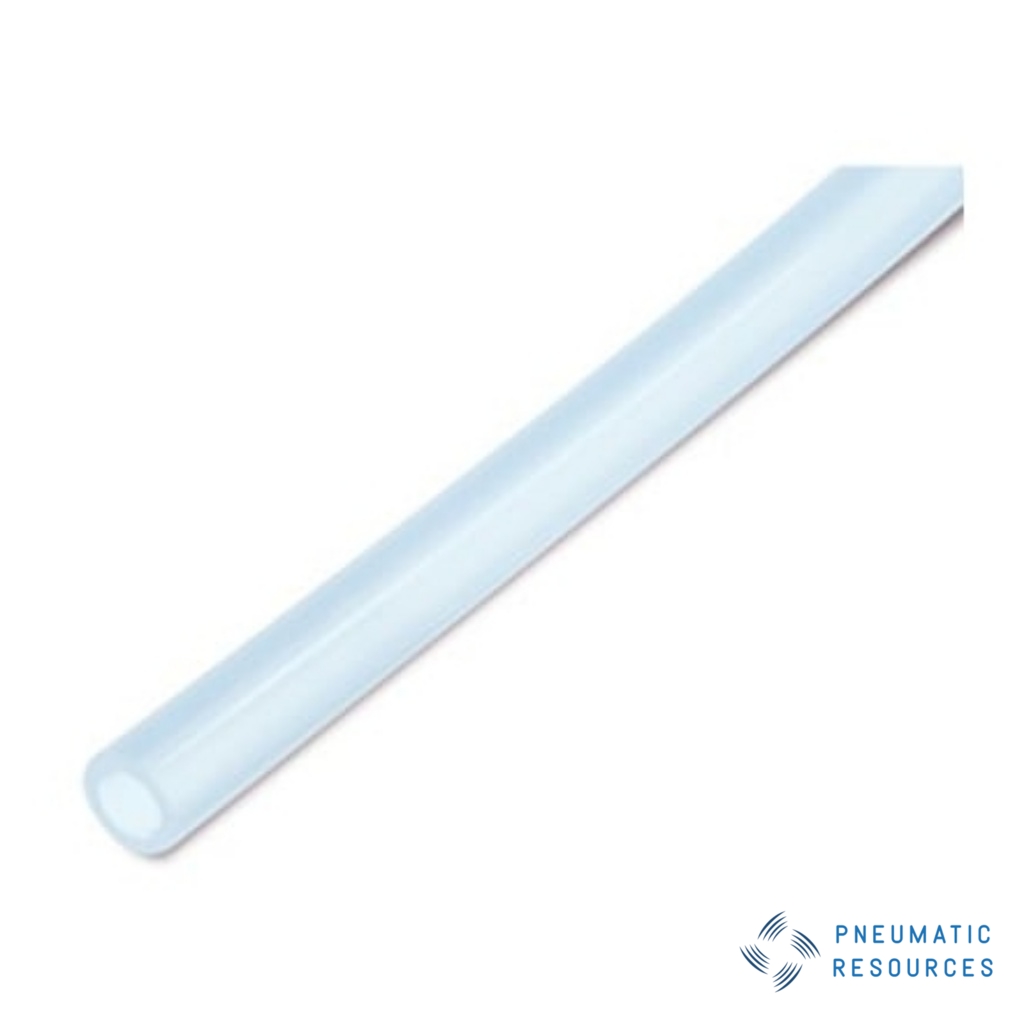

Picture of TD Flexible Tube, PTFE, 9mm ID, 12mm OD, Clear, 20m, SMC, TD1209-20

TD Flexible Tube, PTFE, 9mm ID, 12mm OD, Clear, 20m, SMC, TD1209-20

The SMC TD series is a highly flexible fluorine resin tubing that was designed for installation in small spaces. The denatured PTFE fluorine resin tubing was developed to realize high flexibility, while maintaining the same heat and chemical resistance.

Minimum bending radius 15mm
Maximum operating temperature 260° C
Conforms to the food sanitation law
Manufacturer: SMC
SKU: TD1209-20
$2,040.14
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Hose Pipe/Flexible TubeFlexible Tube
Inner Diameter9mm
Outer Diameter12mm
MaterialPTFE
Hose Pipe ActionTransfer, Vacuum
Maximum Working Pressure9 bar
Suitable ApplicationsFood
Standards MetFDA
SeriesTD
Minimum Operating Temperature-20°C
Maximum Operating Temperature260°C
ColourClear
Length20m
