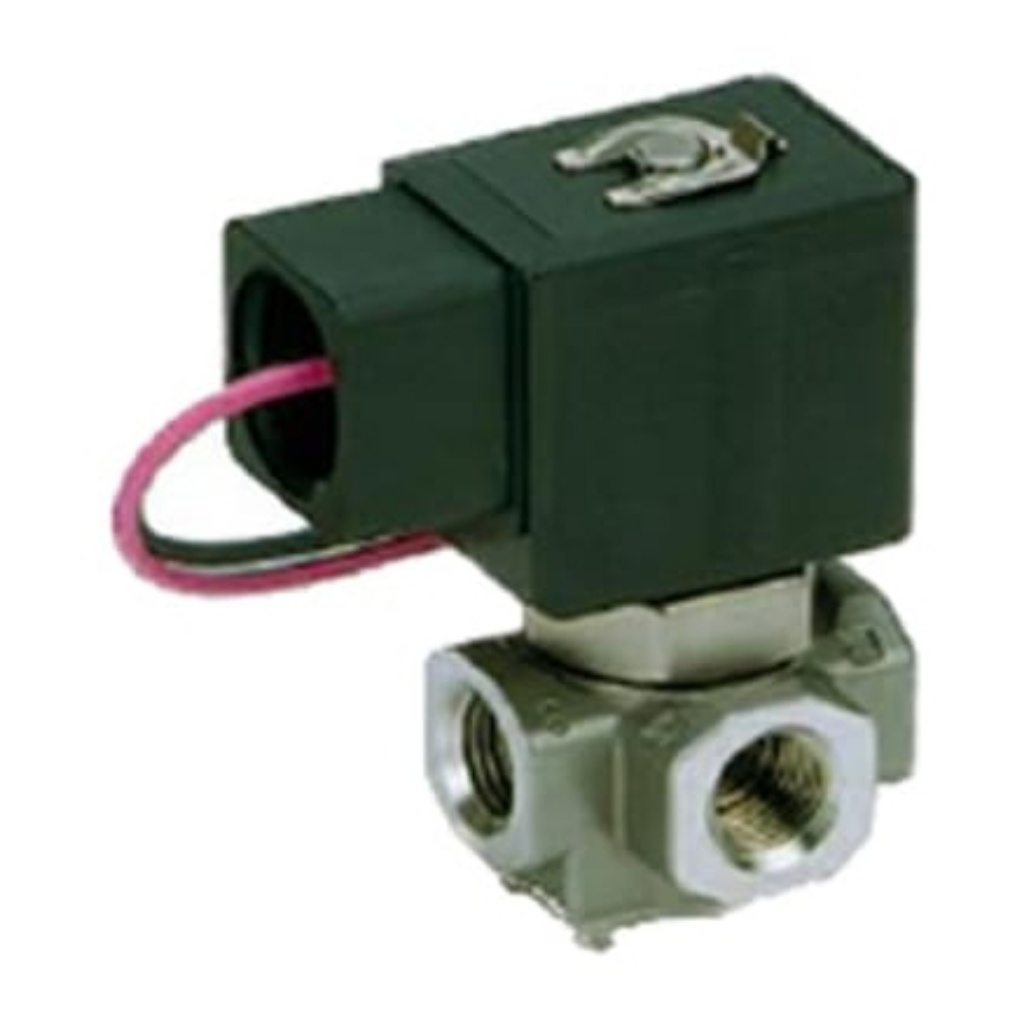

Picture of Solenoid Valve , 3 port(s) , NO/NC, 24 V dc, 3/8in, SMC, VX3344-03T-5DS1-B

Solenoid Valve , 3 port(s) , NO/NC, 24 V dc, 3/8in, SMC, VX3344-03T-5DS1-B

VX3 Direct Acting Three Port Solenoid Valve

The SMC VX3000 series is a direct acting, 3 port solenoid valve. Suited to various applications such as air, oil, water and steam. Valves are easily replaced without changing existing piping.

DIN electrical connection
Class B & Class H coil available
Compact & lightweight
Long life
IP65 coil cnclosure
Can be fitted with NBR, FKM or EPDM seals
Manufacturer: SMC
SKU: VX3344-03T-5DS1-B
$196.33
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Supply Voltage24 V dc
Number of Ports3
Connection Size3/8in
Connection3/8 in NPTF Female
OperationDirect
Default Valve PositionNO/NC
Suitable ApplicationsWater
Type3/1
Orifice Diameter4mm
Body MaterialBrass
SeriesVX3
Maximum Working Pressure20 bar
Operating Temperature Range-20 → +60 °C
Thread Standard or Connection TypeNPTF
Maximum Operating Temperature+60°C
Minimum Operating Temperature-20°C
Connection GenderFemale
