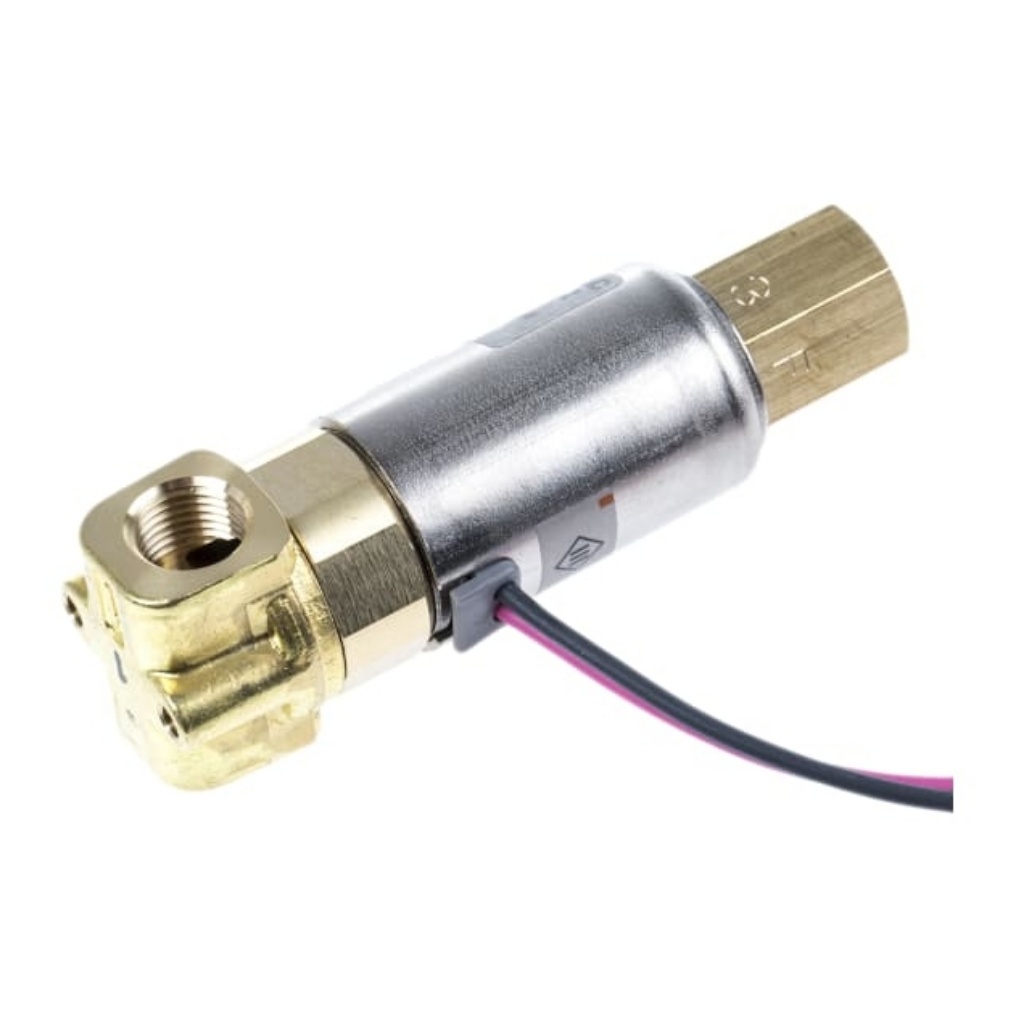

Picture of Solenoid Valve , 3 port(s) , NO/NC, 24 V dc, 1/8in, SMC, VDW250-5G-2-01F-Q
Picture of Solenoid Valve , 3 port(s) , NO/NC, 24 V dc, 1/8in, SMC, VDW250-5G-2-01F-Q
Picture of Solenoid Valve , 3 port(s) , NO/NC, 24 V dc, 1/8in, SMC, VDW250-5G-2-01F-Q
Picture of Solenoid Valve , 3 port(s) , NO/NC, 24 V dc, 1/8in, SMC, VDW250-5G-2-01F-Q

Solenoid Valve , 3 port(s) , NO/NC, 24 V dc, 1/8in, SMC, VDW250-5G-2-01F-Q

Three Port Solenoid Valves

The VXA series of valves can be used with a wide variety of fluids. The VXA31/32 manifold is individual ported; valves for both are easily replaced without changing existing piping.

Compatible with a wide range of fluids
Manufacturer: SMC
SKU: VDW250-5G-2-01F-Q
$54.93
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Supply Voltage24 V dc
Number of Ports3
Connection Size1/8in
Connection1/8 in G Female
OperationDirect
Default Valve PositionNO/NC
Suitable ApplicationsAir, Low Vacuum, Water
Type3/2
Orifice Diameter1 mm, 1.6mm
Body MaterialBrass
SeriesVDW250
Maximum Working Pressure1 MPa
Operating Temperature Range-10 → +50 °C
Connection GenderFemale
Minimum Operating Temperature-10°C
Thread Standard or Connection TypeG
Maximum Operating Temperature+50°C
