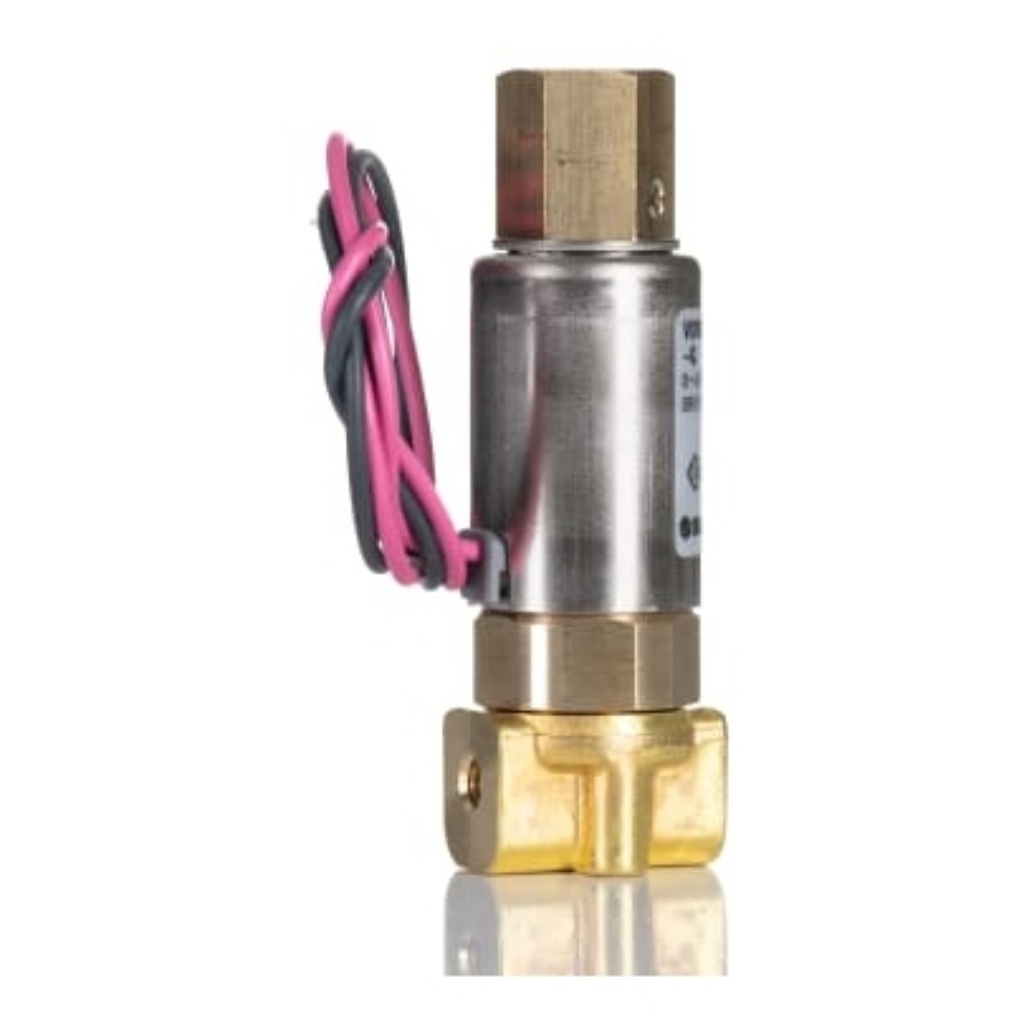

Picture of Solenoid Valve , 3 port(s) , NO/NC, 12 V dc, M5, SMC, VDW250-6G-1-M5-Q
Picture of Solenoid Valve , 3 port(s) , NO/NC, 12 V dc, M5, SMC, VDW250-6G-1-M5-Q
Picture of Solenoid Valve , 3 port(s) , NO/NC, 12 V dc, M5, SMC, VDW250-6G-1-M5-Q
Picture of Solenoid Valve , 3 port(s) , NO/NC, 12 V dc, M5, SMC, VDW250-6G-1-M5-Q

Solenoid Valve , 3 port(s) , NO/NC, 12 V dc, M5, SMC, VDW250-6G-1-M5-Q

3 Port VDW Valve

The SMC VDW series of direct operated 2/3 port solenoid valve are designed to be used with water, Air and vacuum.
These solenoid vales are compact in size, Use a unique magnetic material that reduces the operating resistance of the moving parts which improves service life, wear and corrosion resistance.

2 port solenoid valve for manifold
Compact direct operated
Body material: brass, stainless steel
Seal material: NBR, FKM

SMC VDW Series
Manufacturer: SMC
SKU: VDW250-6G-1-M5-Q
$60.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Supply Voltage12 V dc
Number of Ports3
Connection SizeM5
ConnectionM5 Metric Female
OperationDirect
Default Valve PositionNO/NC
Suitable ApplicationsAir, Low Vacuum, Water
Type3/2
Orifice Diameter1mm
Body MaterialBrass
SeriesVDW250
Maximum Working Pressure10 bar
Operating Temperature Range-10 → +50 °C
Maximum Operating Temperature+50°C
Thread Standard or Connection TypeMetric
Connection GenderFemale
Minimum Operating Temperature-10°C
