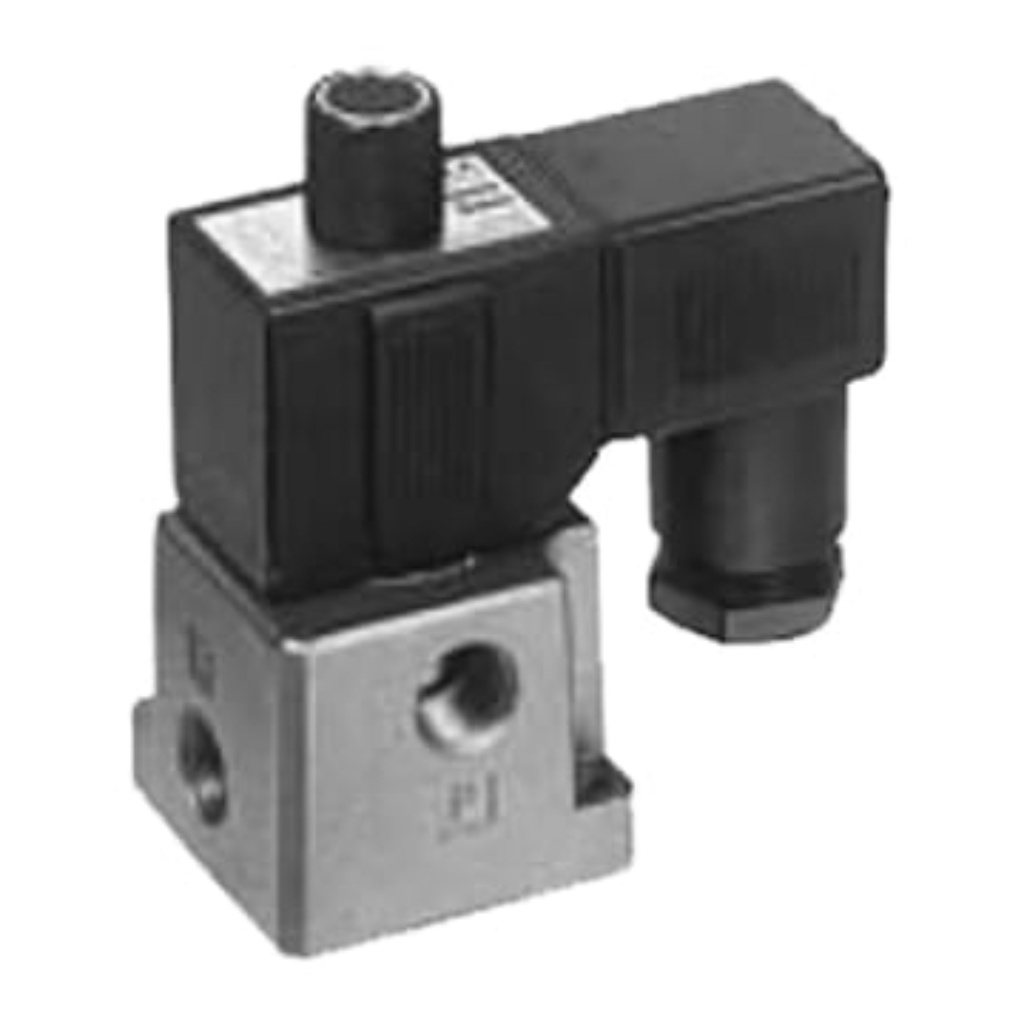

Picture of Solenoid Valve , 3 port(s) , NC, NO, 110 V ac, 1/4in, SMC, VT317-3DZ-02-Q

Solenoid Valve , 3 port(s) , NC, NO, 110 V ac, 1/4in, SMC, VT317-3DZ-02-Q

3 Port Direct Operated Poppet Solenoid + Pilot Valves, VT317 Series

A selection of direct operated 3 port poppet type solenoid operated spring return valves. Selective porting can be provided from these valves for up to 6 different valve functions.

1/ 4 in ports, tapered threads
Standard DIN 43650 Electrical Connection
Push button manual override
Surge voltage protection
Coils may be orientated at 90° increments
Suitable for vacuum applications (9120857)
Manufacturer: SMC
SKU: VT317-3DZ-02-Q
$153.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Supply Voltage110 V ac
Number of Ports3
Connection Size1/4in
Connection1/4 in Rc Female
OperationDirect
Default Valve PositionNC, NO
Suitable ApplicationsAir
Type3/2
Body MaterialDie Cast Aluminium
SeriesVT317
Maximum Working Pressure9 bar
Operating Temperature Range0 → +50 °C
Minimum Operating Temperature0°C
Connection GenderFemale
Maximum Operating Temperature+50°C
Thread Standard or Connection TypeRc
Maximum Closing Time30ms
Maximum Opening Time30ms
