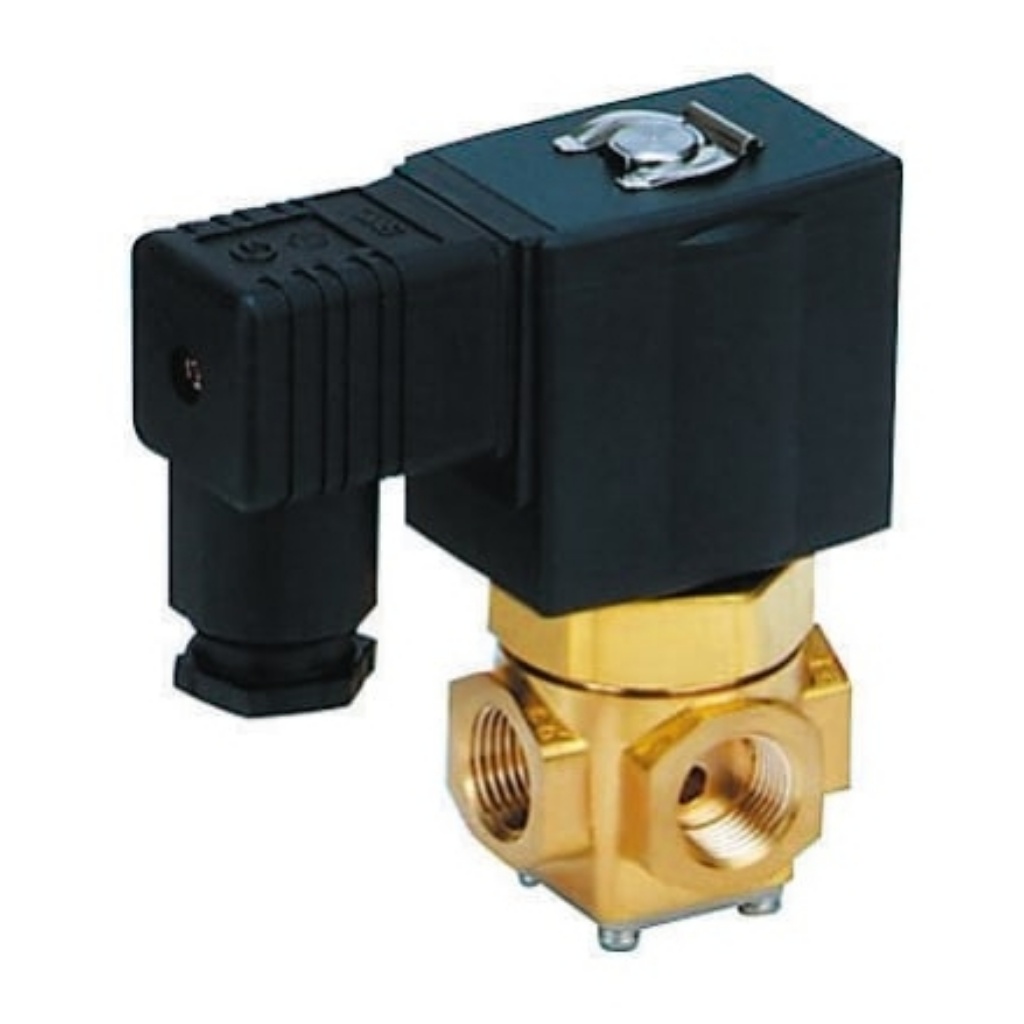

Picture of Solenoid Valve , 3 port(s) , Common, 110 V ac, 1/8in, SMC, VX3114-01F-3DR1

Solenoid Valve , 3 port(s) , Common, 110 V ac, 1/8in, SMC, VX3114-01F-3DR1

VX3 Direct Acting Three Port Solenoid Valve

The SMC VX3000 series is a direct acting, 3 port solenoid valve. Suited to various applications such as air, oil, water and steam. Valves are easily replaced without changing existing piping.

DIN electrical connection
Class B & Class H coil available
Compact & lightweight
Long life
IP65 coil cnclosure
Can be fitted with NBR, FKM or EPDM seals
Manufacturer: SMC
SKU: VX3114-01F-3DR1
$123.51
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Supply Voltage110 V ac
Number of Ports3
Connection Size1/8in
Connection1/8 in G Female
OperationDirect
Default Valve PositionCommon
Suitable ApplicationsWater
Type3/2
Orifice Diameter1.5mm
SeriesVX31
Body MaterialBrass
Maximum Working Pressure1 MPa
Operating Temperature Range-20 → +60 °C
Connection GenderFemale
Maximum Operating Temperature+60°C
Thread Standard or Connection TypeG
Minimum Operating Temperature-20°C
