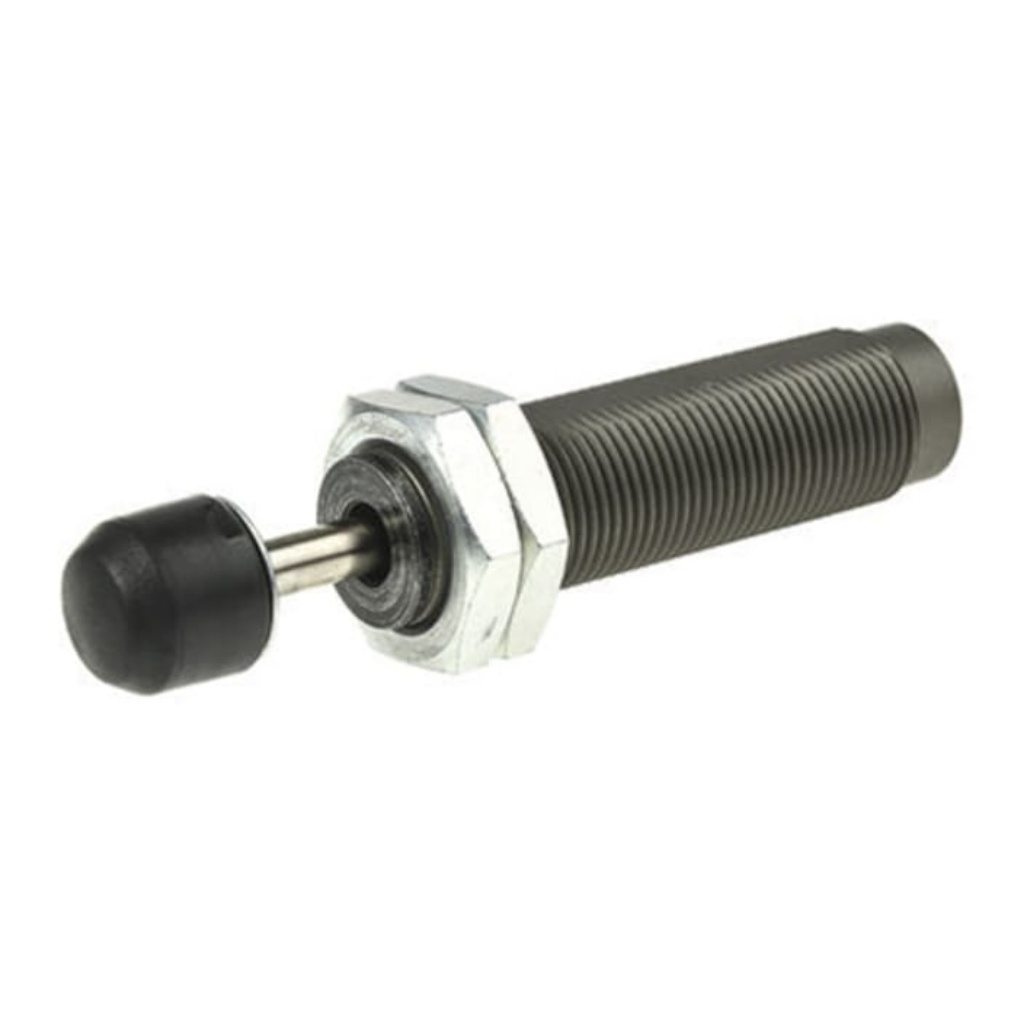

Picture of Shock Absorber, , 46.7mm Body Length, SMC, RBC1006

Shock Absorber, , 46.7mm Body Length, SMC, RBC1006

SMC RB Self Compensating Shock Absorbers

Automatically adjusts for high speed low load or low speed high load applications
Maximum impact speed 5m/s
At max energy absorption per cycle, max operating cycle/min can increase in proportion to energy absorption
Ambient temperature -10°C to +80°C

Self Compensating

These shock absorbers have a steel body with Weartec - Plus (harsh environment) finish, hardened stainless steel piston rod, locknut and hardened steel rod end button with insert for noise suppression. Universal mounting and stop collar attachments are available separately.
Manufacturer: SMC
SKU: RBC1006
$81.61
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Body Length46.7mm
Overall Length62.7mm
Connection TypeM10 x 1
Manufacturer SeriesRB
Maximum Energy Capacity Per Cycle3.92J
Minimum Operating Temperature-10°C
Maximum Operating Temperature+80°C
Maximum Return Force6.18N
