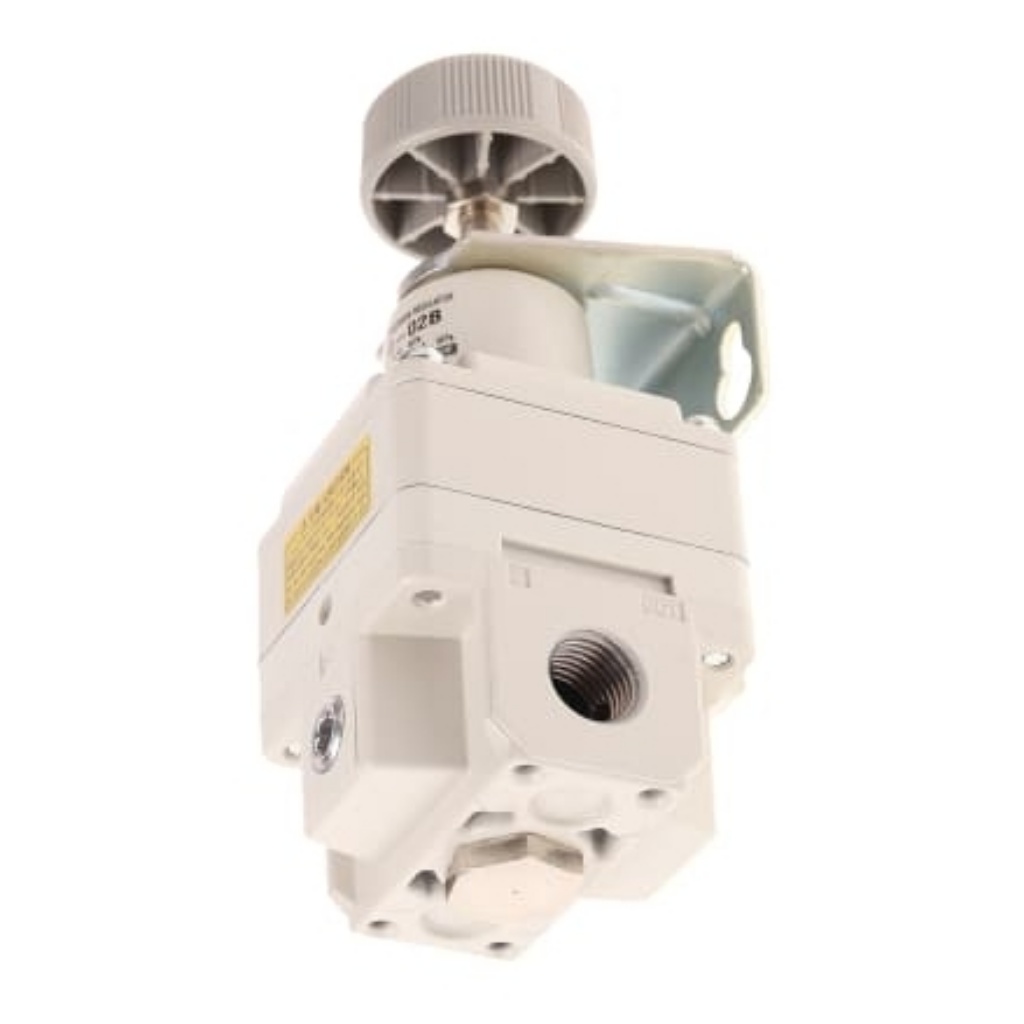

Rc 1/4 Pneumatic Regulator - 0.01MPa to 0.4MPa, 1/4in, 1MPa max. input, SMC, IR2010-02B

Precision IR Series

Air requirements; Dry, filtered to 0.3μm
Precise setting accuracy ±0.2% of full span
Repeatability ±0.5% of full span
Temperature range -5°C to +60°C
High relief flow capacity for high balance performance
Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series)
Weight 300g
Available with / without mounting brackets

Note

See separate product range for mounting brackets and accessories

Caution

(Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline
Manufacturer: SMC
SKU: IR2010-02B
$285.40
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Port ConnectionRc 1/4
Maximum Outlet Pressure0.4MPa
Minimum Outlet Pressure0.01MPa
Maximum Input Pressure1MPa
Manufacturer SeriesIR2000
Pressure Gauge Port SizeRc 1/8
Port Connection Thread Size1/4 in
Pressure Gauge Port Thread Size1/8 in
Typical Flow Rate1200L/min
Integral Check ValveWithout Check Valve
Port Connection Thread StandardRc
Minimum Operating Temperature-5°C
Maximum Operating Temperature+60°C
Pressure Gauge Port Thread StandardRc
