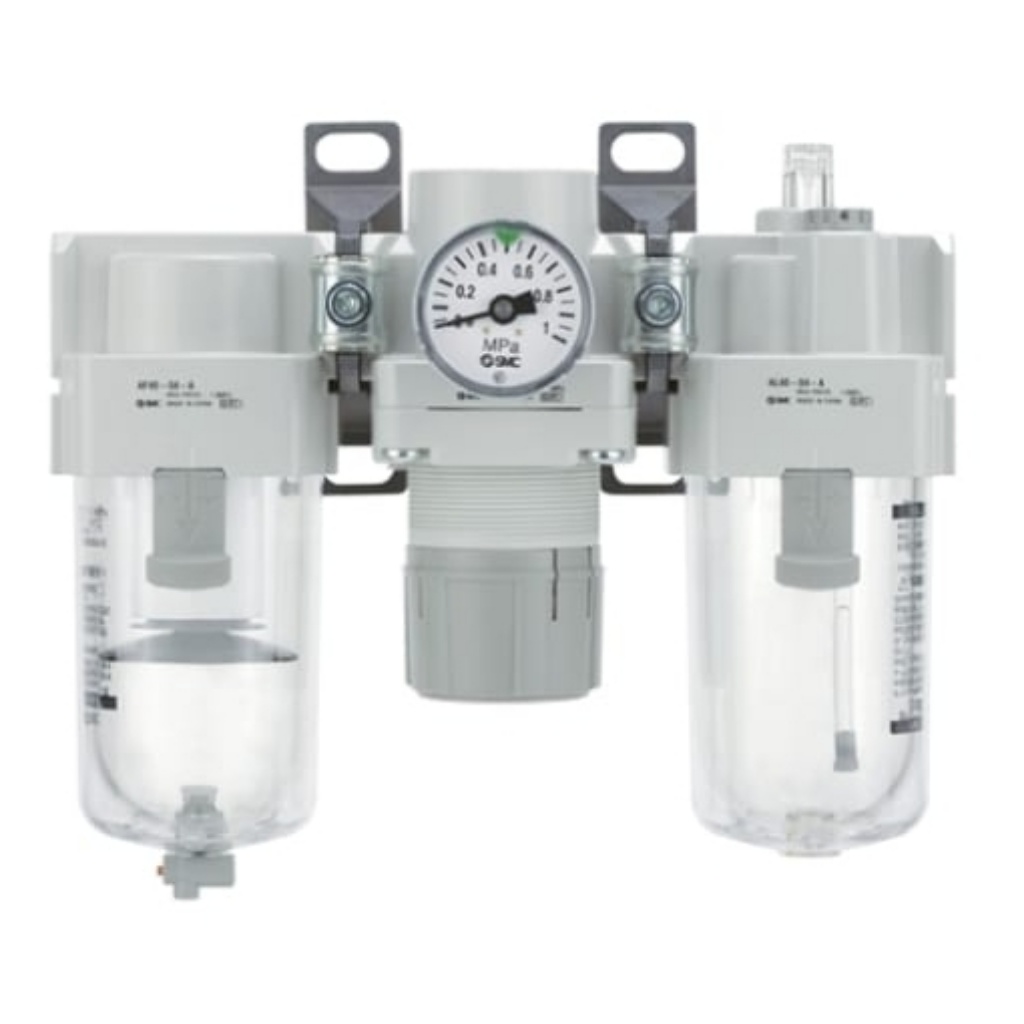

Picture of Rc 1/2 FRL, Automatic Drain, 5μm Filtration Size - With Pressure Gauge, SMC, AC40-04DG-A

Rc 1/2 FRL, Automatic Drain, 5μm Filtration Size - With Pressure Gauge, SMC, AC40-04DG-A

FRL Combination Unit, 8.5 bar

Modular FRL Units from SMC. This range has the benefit of improved visibility for lubricant drip with polycarbonate bowl.

Regulating range 0.5 to 8.5 bar
Filtration size 5μm
Polycarbonate bowl

Note

Maximum flow rate data is applicable for the product under the following conditions: supply pressure 7 bar; setting pressure 5 bar; pressure drop 1 bar.

Supplied with

Mounting bracket and pressure gauge
Manufacturer: SMC
SKU: AC40-04DG-A
$385.93
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Port ConnectionRc 1/2
Integrated Pressure GaugeWith Pressure Gauge
Drain TypeAutomatic
Manufacturer SeriesAC
Filtration Size5µm
Pressure Gauge Port SizeRc 1/4
Minimum Operating Pressure0.1MPa
Minimum Ambient Operating Temperature-5°C
Port Connection Thread Size1/2 in
Port Connection Thread StandardRc
Maximum Operating Pressure1 MPa
Maximum Ambient Operating Temperature+60°C
Minimum Process Operating Temperature-5°C
Process Operating Temperature Range-5 → +60°C
Ambient Operating Temperature Range-5 → +60°C
Pressure Gauge Port Thread Size1/4 in
Pressure Gauge Port Thread StandardRc
Maximum Process Operating Temperature+60°C
