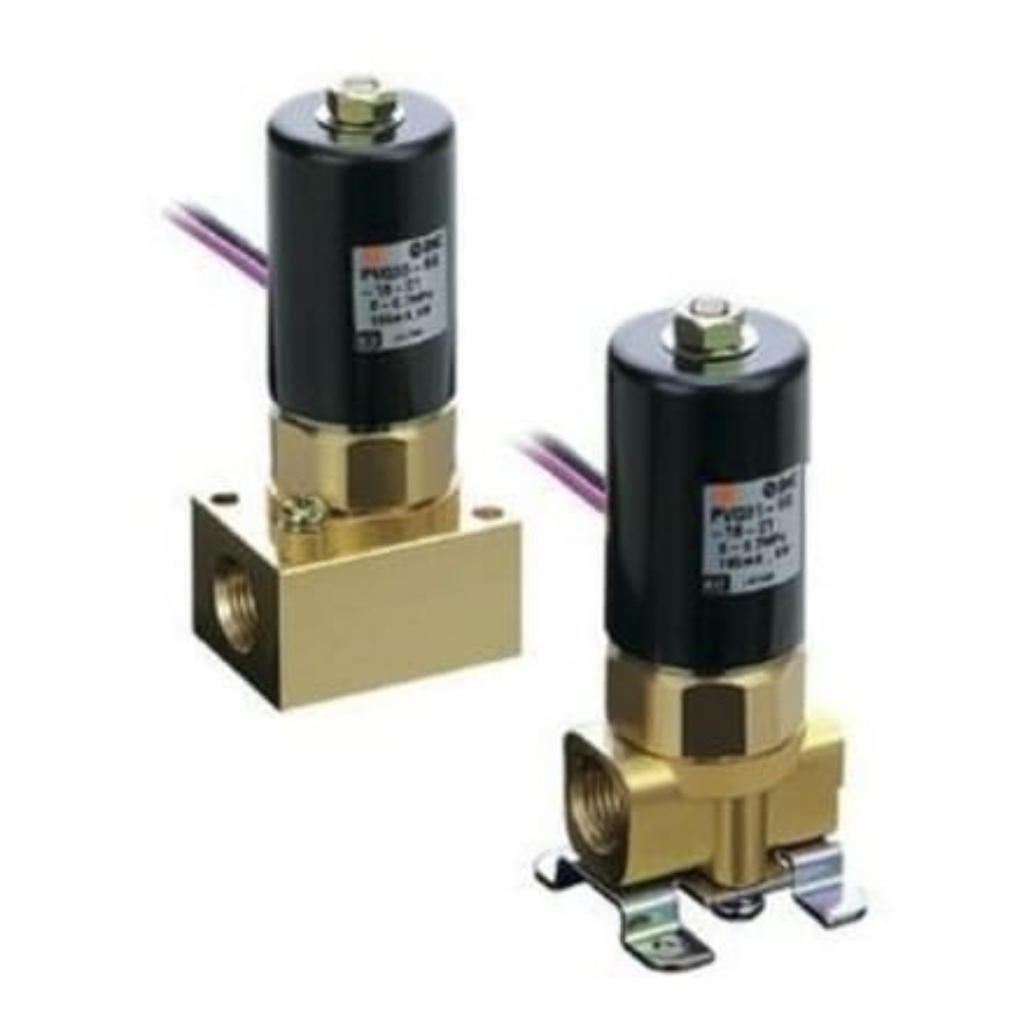

Picture of Proportional Control Valve - Solenoid G 1/8 PVQ30 Series 24V dc, SMC, PVQ31-5G-16-01F

Proportional Control Valve - Solenoid G 1/8 PVQ30 Series 24V dc, SMC, PVQ31-5G-16-01F

PVQ series, compact proportional solenoid valve, was designed by SMC with a direct poppet construction. This construction enables low leakage, while de-energized. PVQ series has been used in applications such as air blow, flow control, hand piece control for dental unit and other respiratory equipment, as well as cooling for laser machinery etc

Direct operated poppet valve construction
Seal material: FKM
Body material: C37, stainless steel
Port size: Rc 1/8
Available in body ported or based mounted styles
Manufacturer: SMC
SKU: PVQ31-5G-16-01F
$98.63
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Connection Port ThreadG 1/8
Actuation TypeSolenoid
Manufacturer SeriesPVQ30
Mounting StyleBody Ported
Solenoid Voltage24V dc
Number of Ports2
Body MaterialC37
Maximum Flow Rate100L/min
Solenoid Power Consumption4W
Minimum Operating Pressure0MPa
Maximum Operating Temperature+50°C
Minimum Operating Temperature0°C
Maximum Operating Pressure1 MPa
Thread Size1/8in
ConfigurationNormally Closed
Number of Positions2
Special FeaturesDirect Operated Poppet Construction, Hysteresis 10 % or Less, Repeatability 3 % or Less, Start-Up Current 50 % or Less
Thread StandardG
