Pneumatic Suction Cups

SMC Flat and Bellow Suction Cups These suction cups offer you options to meet all your handling and transfer needs. They come in a variety of shapes and sizes suitable for a variety of lifting applications. All stems are non-rotating and come with rubber flat pad - different pad sizes and styles available 3 Stem types: -Standard Stem -Stem with buffer spring to allow objects of differing height to be picked up -Stem with female thread, top entry, suitable for use with hollow-rod cylinders All stems with 80mm diameter pads have push-in fittings included (excluding female thread top entry types) 2 Pad materials: - NBR Rubber - Silicone (for non-marking applications) 3 Pad styles: - Flat - Deep (for curved objects) - Bellows (absorbs misalignment What are the benefits of flat bellow Suction cups? Suction cups/vacuum pads are the components used to lift and hold a workpiece in a pick and place application., the cups grip the workpiece fast and precisely These suction cups are ideal for flat and uneven surfaces. Note Lifting Capacity quoted theoretically at 0.65 bar

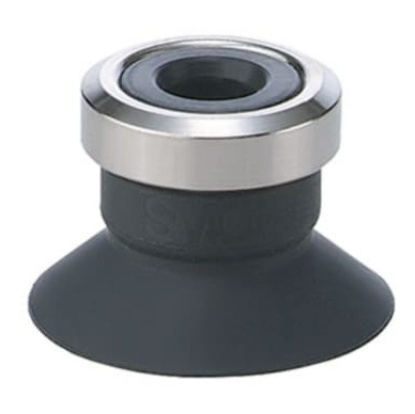

THE SMC VACUUM PAD has vertical vacuum entry. This vacuum pad is available with male as well as female threads. Durometer HS 40° Operating Pressure range –30 to 200°C

The SMC manufactured a suction pad, which can be used for a wide-range of applications in many different models. Female thread connection

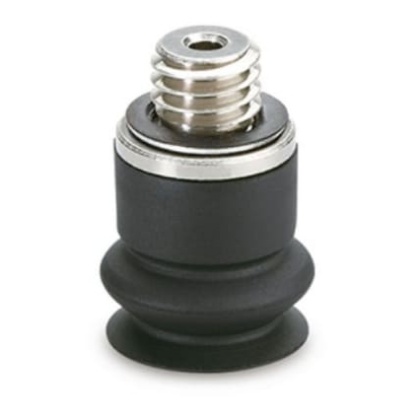

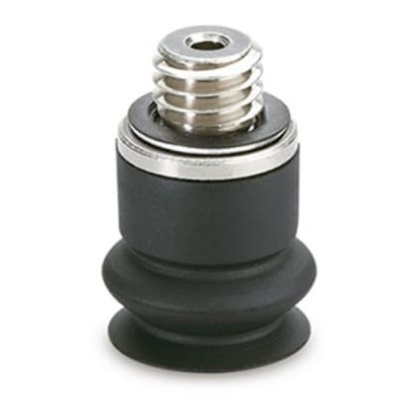

The SMC ZPT series vacuum pad has 8mm diameter. It has male thread M5X0.8. Shapes bellows type Material conductive silicone rubber Options male and female thread vertical vacuum inlet

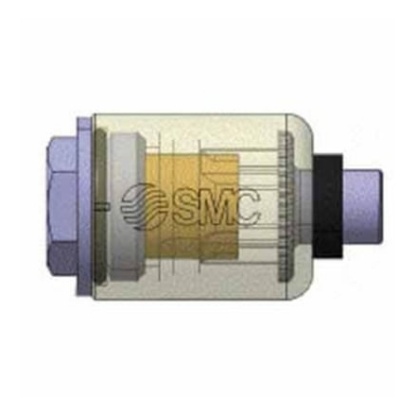

The SMC ZFZ series compact resin air suction filter used for vacuum suction and it improved alcohol resistance. It has dual use for positive and negative pressures and reduced pressure loss. Operating pressure range -100 to 500 kPa Ambient and fluid temperature 0 to 60°C (No freezing)

The SMC vacuum cups come in various sizes, materials, and designs, suitable for various applications, and can be connected vertically using one-touch fittings or threaded connections. Vertical vacuum entry With rotating or non-rotating buffer
